The seam welder is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
Price:
$12,000-13,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Xingweihan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Overview

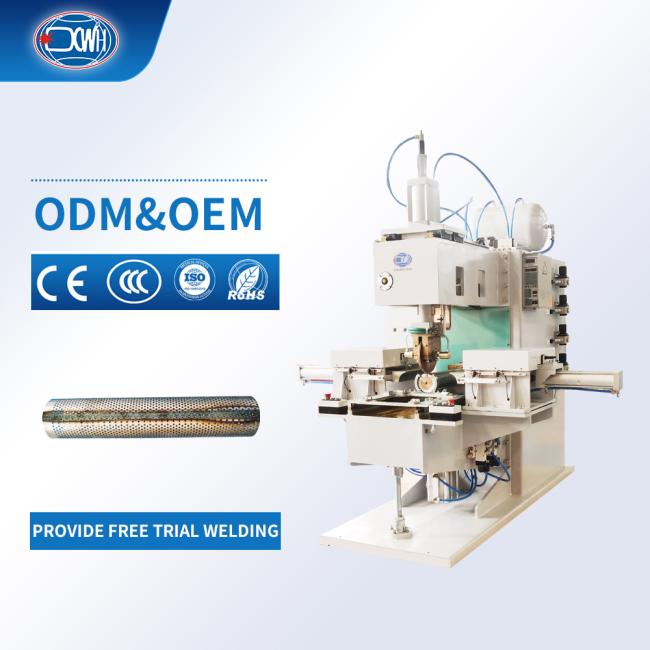

Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
The automatic filtering drum seam welding machine integrates pneumatic, electrical, and servo control technologies to demonstrate excellent welding performance. The equipment adopts pneumatic pressurization and vertical electrode movement, combined with thyristor trigger control system, to achieve precise adjustment of welding current and high efficiency and energy saving. Its automatic forming system precisely shapes the flat plate into a cylinder through the sequential action of cylinders; The electrode wheel driven by servo motor ensures uniform and stable welding speed. The whole machine is designed to be compact, safe and easy to operate. From manual feeding, automatic forming, pressure welding to unloading completion, the entire process is automatically connected and optimized for welding 0.5-1.5mm low-carbon steel filter drums. It is an ideal choice for high-quality and high repeatability production.
Model/Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Main Features
1. Rapid cycle operation: From automatic forming and pressure positioning to servo rolling welding and unloading completion, the fully automatic cycle is closely connected, greatly reducing the time for workpiece clamping, forming, and welding, and significantly improving production efficiency.
2. Workpiece stationary welding machine: The innovative "welding machine motion, workpiece fixation" design avoids positioning errors and time consumption caused by the movement of large-sized cylinders, making it particularly suitable for rapid welding of circular workpieces such as filter drums.
3. One click molding and welding: After starting with both hands, the equipment automatically completes the entire process of material transfer, pneumatic molding, pressurization, welding, and unloading, with extremely simple operation and low skill requirements for workers, reducing training costs.
4. Suitable for continuous batch production: specially designed for 0.5-1.5mm low carbon steel filter drums, with high matching welding ability and automated processes that are particularly suitable for batch continuous manufacturing of standardized products.
General Strctures
Fully automated process integration
From manual start, automatic displacement, pneumatic forming, pressure positioning, servo roll welding to automatic unloading, it achieves a continuous operation cycle of "manual loading and automatic completion", greatly reducing manual intervention.
Cylinder
The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.
Gas Storage Tanks
The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Waterway Components
All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
Application
Scene images
More details, please contact!
