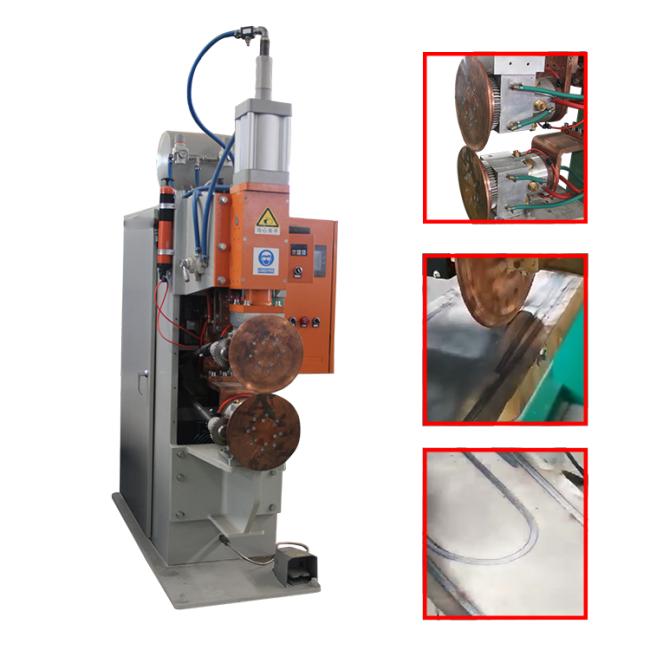

The seam welder is an advanced evolution of resistance spot welding technology, sharing the same underlying physical principles. The core difference lies in the nugget formation method: while a spot welder creates discrete weld points, a seam welder utilizes continuously rotating wheel electrodes to fuse a series of overlapping weld nuggets into a continuous, uniform, and highly sealed linear seam. This process is particularly suited for products demanding exceptional airtight and watertight integrity, enabling the efficient fabrication of leak-proof sealed containers and structural components.

• Stable & Adjustable Welding Process

  Equipped with a precision control system that allows for independent, stepless fine-tuning of core parameters such as welding current, wheel speed, and electrode force. The wide process window enables optimization for different materials and thicknesses, ensuring stable, high-repeatability, and superior seam quality.

• High-Efficiency Coordinated Cooling System

  Employs a coordinated dual-path cooling strategy. Internal forced water cooling with high flow rate protects the transformer and secondary circuit, while independent external spray cooling directly targets the welding wheels for rapid heat dissipation. This synergy significantly extends electrode life and enhances welding stability.

• High-Performance Rotary Conduction & Drive Unit

  The rotary conduction mechanism features embedded high-conductivity silver-based alloy pads and a fully sealed, pressure-lubricated conduction seat. This design optimizes current transfer under high loads, reduces contact resistance and heat generation, and ensures the wheel electrodes rotate with low torque, high flexibility, and smoothness, minimizing wear.

• Adaptable Welding Orientations

  Supports two standard welding modes: Horizontal (Longitudinal) and Vertical (Transverse). This flexibility allows users to select the optimal orientation based on product geometry, production line flow, and automation handling needs, offering significant convenience for line integration and process design.

• Extensive Key Industry Applications

  Valued for its unique capability to produce continuous sealed seams, it is an essential piece of equipment in sheet metal fabrication, electrical enclosure manufacturing, automotive fuel tanks and exhaust systems, solar thermal collectors, and the production of various chemical and food-grade storage tanks and piping.
