Automatic Manual Loading Orbital Laser Welder For Stainless Steel Round Pipe Cylinder Metal Tube

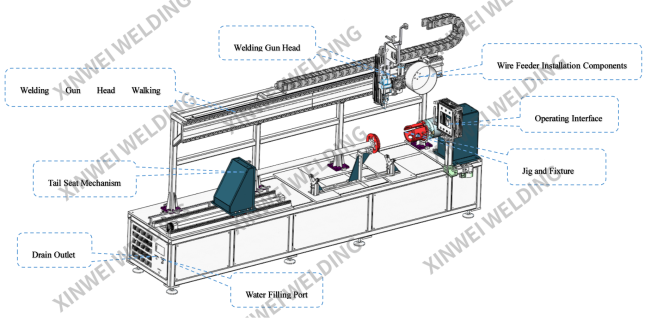

This automatic tube laser welding machine is designed for the high-precision circumferential seam butt welding of metal round pipes/cylinders, such as those made of stainless steel and carbon steel. It employs an intelligent "workpiece rotation, fixed torch" orbital welding method. With rapid pneumatic clamping, it enables one-touch start, fully automatic welding for workpieces with wall thicknesses of 0.5-4mm. Integrating a high-quality laser source and a rigid body, it ensures a stable welding process and produces uniform, aesthetically pleasing seams. Widely used in vehicle manufacturing and mechanical processing, it significantly enhances the efficiency, quality, and consistency of tubular component welding in batch production
| Name | Handheld laser welding machine | |
|---|---|---|
| Model | XWH-1500 /XWH-2000 | XWH-3000 |
| supply Demand Power | 220V + 10%, 50Hz; Rated curent: < 14A | 3 8 0 V±5 % ,5 0 H z ,Rated curent: ≤2 5 A |
| Environmental Requirements | Temperature 5-40℃; Humidity 10-90% | |
| Cooling Method | Water Cooling (dual temperature and dual control) | |
| Output Power Instability | ≤士2%24-hour (continuous operation) | |
| Utilization Rate | ≤99 .5% | |
| Laser Wavelength | 1080nm | |
| Optical Fiber | 50um 10m | |
| Beam Output | 1 Beame | |
| Modulation Frequency | 20KHz | |
| Dimensions | 900*430*710mm | |
| Weight | 87kg | |
-

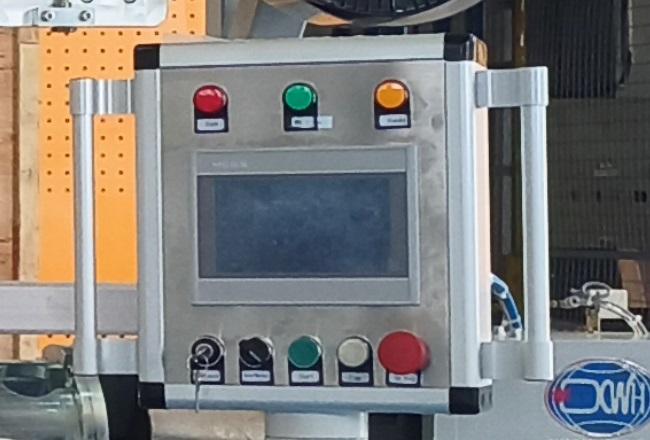

One-Touch High-Efficiency Automation: After manual loading, a single touch initiates the fully automatic welding cycle, performing alignment, welding, and reset automatically, greatly improving production efficiency.
-
Broad Material & Thickness Compatibility: Suitable for various metals including stainless steel and carbon steel, with a weldable thickness range of 0.5-4mm, meeting diverse tubular welding requirements.
-
High-Precision Butt Welding for Thin-Walled Tubes: Utilizes laser high-energy beam focusing technology to achieve high-quality seamless butt welding of 1.5mm thin-walled metal tubes, producing aesthetically pleasing and robust weld seams.
-

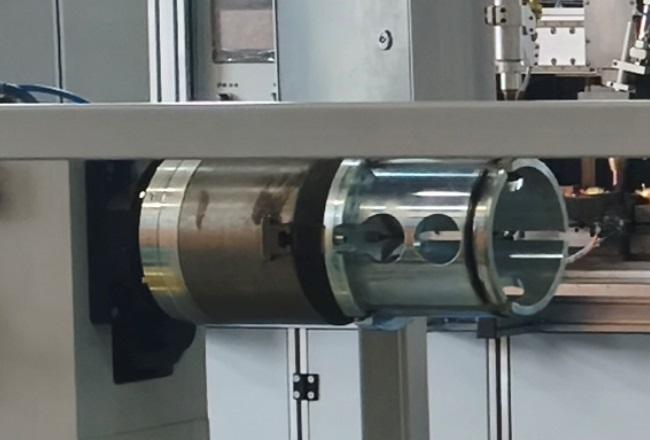

Pneumatic Rapid Clamping & Positioning: Equipped with pneumatic quick-acting fixtures that automatically lock the workpiece upon placement, ensuring zero displacement during welding and enhancing alignment accuracy.
-
High-Rigidity Stable Structure: Integrates a high-quality laser generator and a high-rigidity frame, ensuring consistent stability during prolonged continuous operation and reliable, repeatable weld quality
