Stainless Steel Single Phase Industrial Welding Equipment Galvanized Sheets Multi Point Head Spot Welder Welding Machine
Price:
$29,000-39,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Xinweihan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Description

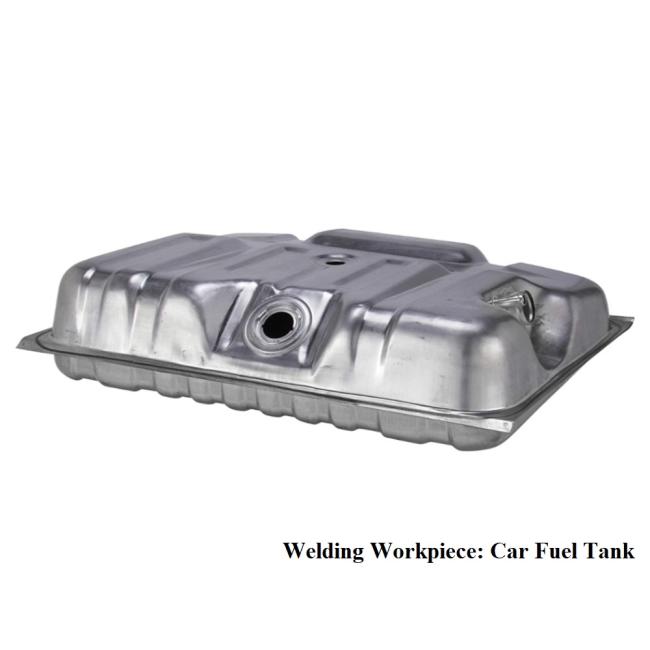

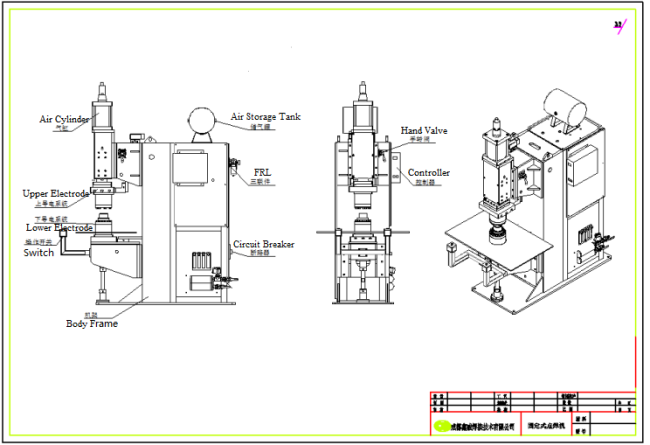

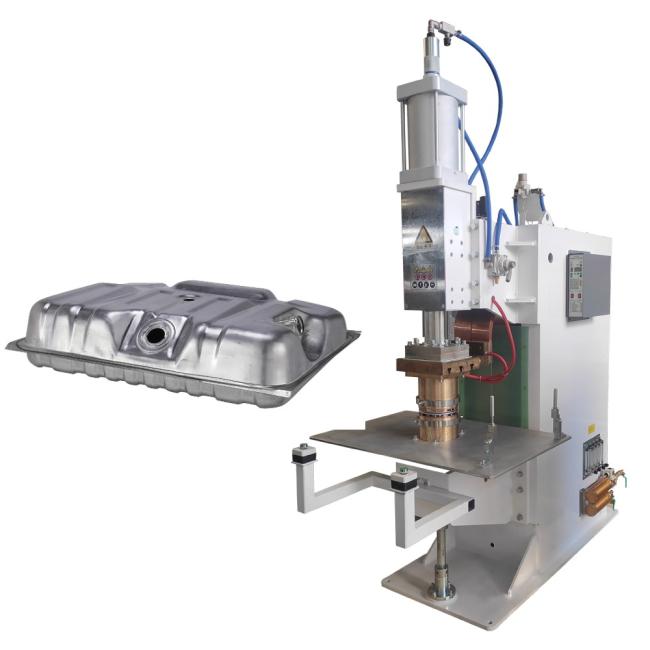

The multi head spot welding machine is customized for car fuel tank. When the welding machine is welding, first place the workpiece between the electrode of the welding tongs, then press the switch manually, the "pressurization" program starts, the solenoid valve acts, and the compressed air enters the cylinder of the welding machine to make the electrode of the welding tongs act, and then press the workpiece tightly; After an appropriate delay, the "welding" procedure begins. At this time, the primary coil of the welding transformer is connected to the power supply through the triggered thyristor (whose conduction angle is controllable), and the secondary welding current is generated to weld the workpiece; After the "welding" procedure, the thyristor is turned off, the transformer primary coil is powered off, and the welding machine enters the "maintenance" procedure; After the pressure is maintained for a period of time, the solenoid valve is disconnected, the upper electrode releases the workpiece, and the welding machine enters the "rest" procedure. At this time, a welding cycle has been completed.
Technical Parameters
Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 |
Rated power At 50%(KVA) | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
Rated primary power(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Secondary Voltage(V) | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
Rated frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Max.Short Circuit Current(KA) | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
Max. weld power(KVA) | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
Throat(MM) | 400 | 400 | 400 | 450 | 450 | 450 | 450 |
Max.Froce at electrodes(N) | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
Working stroke(MM) | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
Cooling Water Consumpion 2.5bar(L/min) | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
Electrodes tip(MM) | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
Arms(MM) | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
Projection Clamping Plate(MM) | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
Max.Welding Capaciry A3 steel(MM) | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Main Features
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely applicable to automobile manufacturing, production of house applications,hardware fittings and so on.
can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.

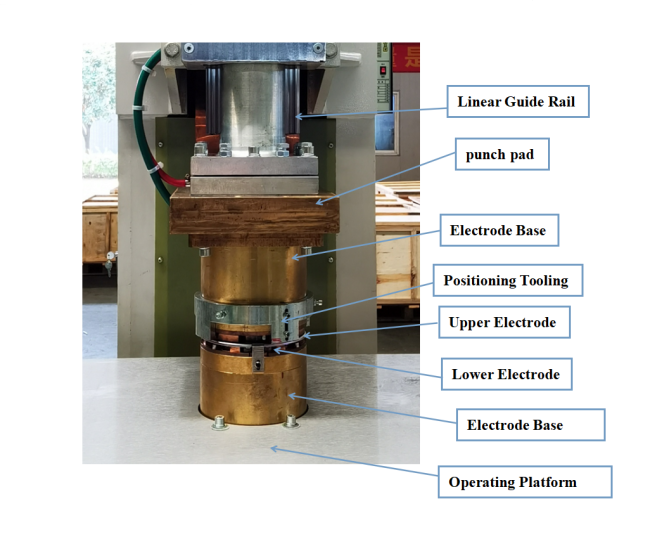

Detail Images

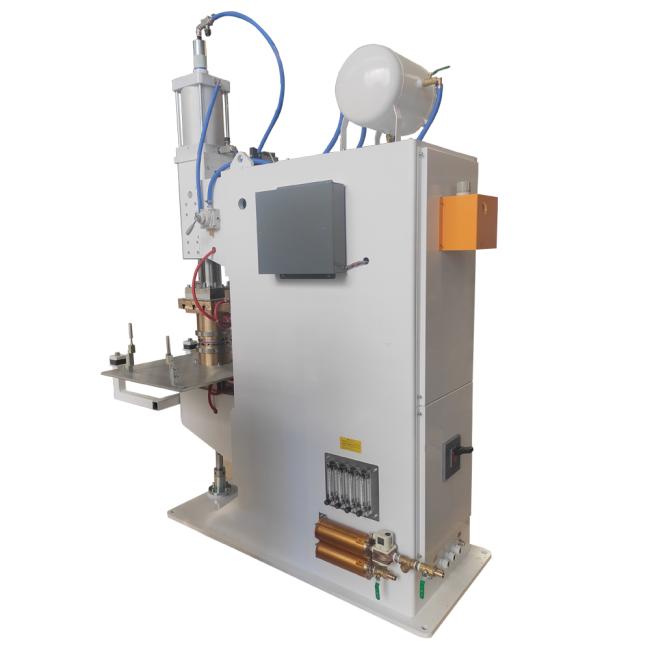

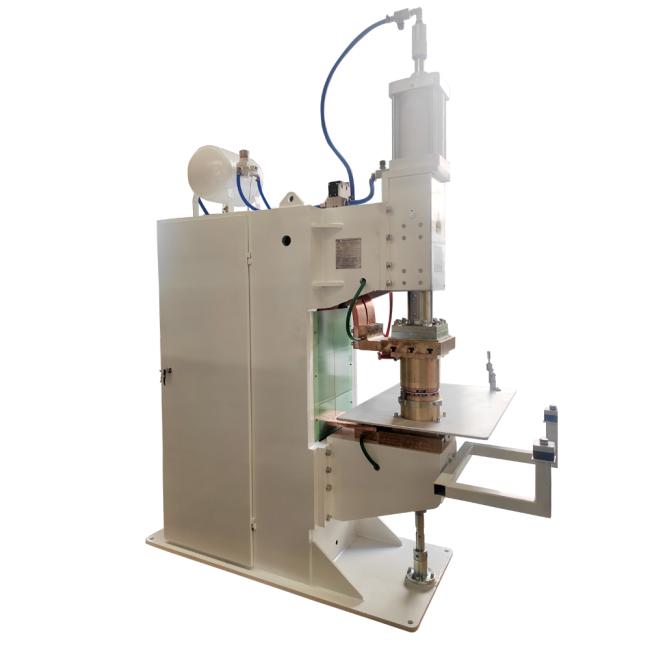

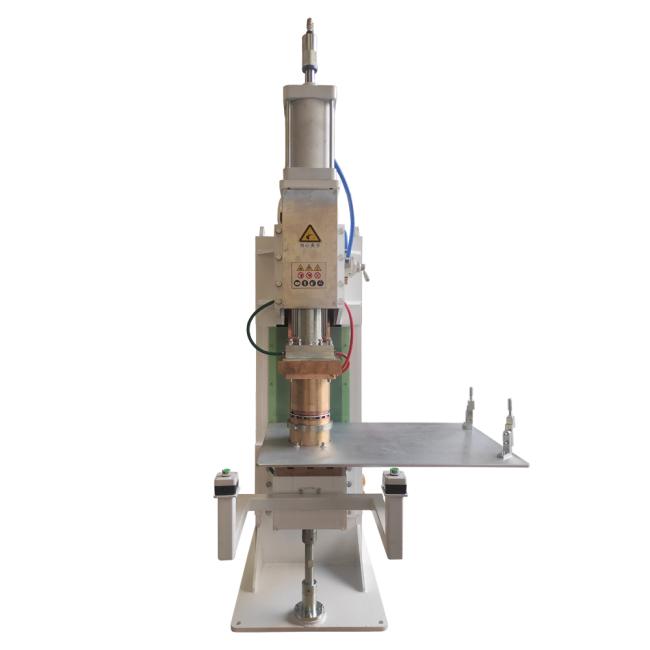

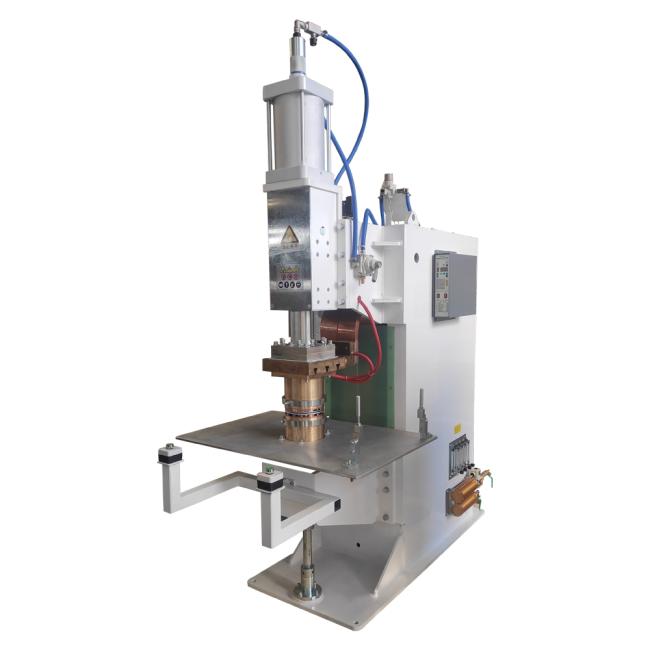

Different Angles of Product
More details, please contact!
