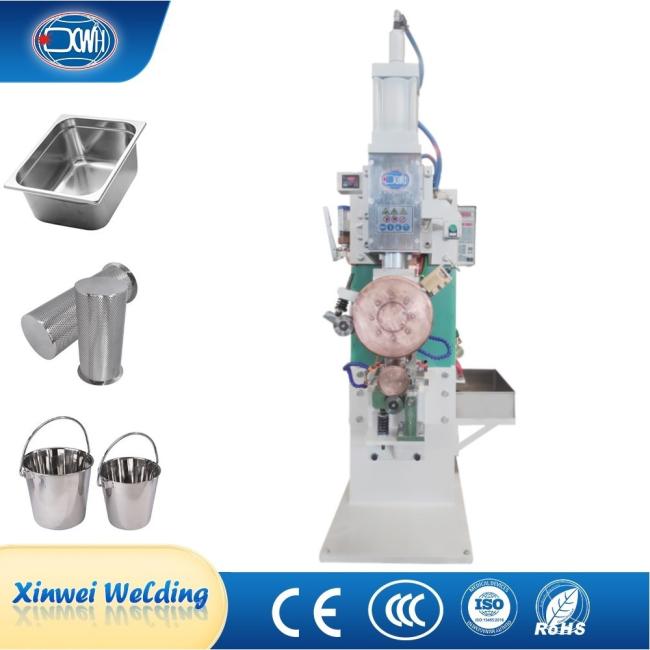

Fuel Tank Welder Duct Tin Can Seaming Longitudinal Automatic Rolling Resistance Seam Welding Machine
Price:
$18,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
xinweihan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Description

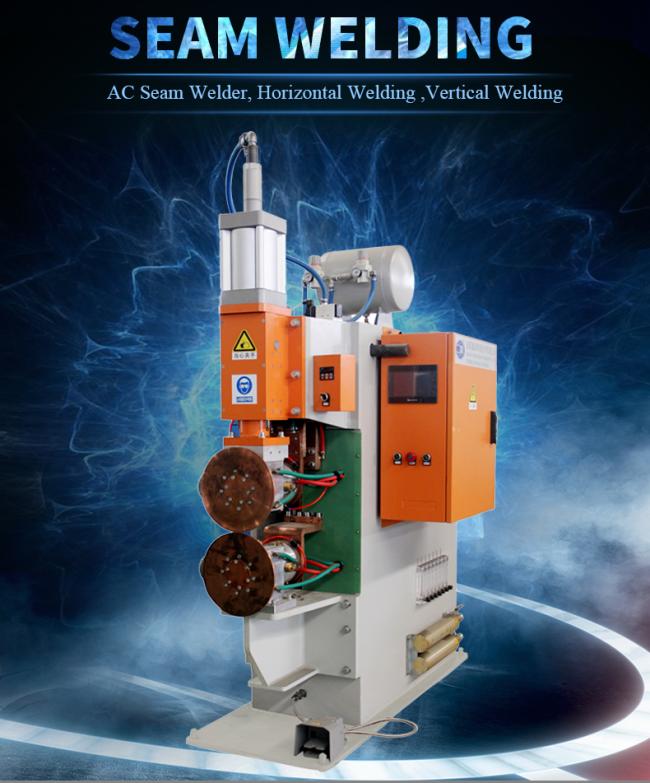

Seam welding is a metal welding that forms a permanent bond. During welding, the welding part is pressed between two welding wheels, and the rotating welding wheel drives the welding part and electrified. The welding current heats up through the local part of the welding part, forming overlapping welding spots to form continuous welds, and realizing permanent connection. Seam welder is widely used in box, such as automobile, motorcycle oil tank; Barrel body, such as oil tank and forming plate workpiece, such as rinm, muffler, radiator, etc.
Technical Parameters
Model/Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Main Features
1. The seam welding machine has the characteristics of reasonable equipment structure, simple operation, high automation, wide adjustment range, high accuracy, and stable speed.
2. PLC controls the operation of the entire machine, ensuring accurate and reliable control, as well as simple and convenient operation. AC frequency converter speed regulation achieves infinitely adjustable welding speed, convenient and reliable adjustment, large adjustment range, high precision, stable and reliable operation, and convenient setting of various welding process parameters.
3. High precision and high rigidity structural design ensures long-term accuracy and good stability of the equipment. Adopting precision accessories, it has high performance and stability.
4. Mainly suitable for seam welding of carbon steel, stainless steel, and other metal workpieces.

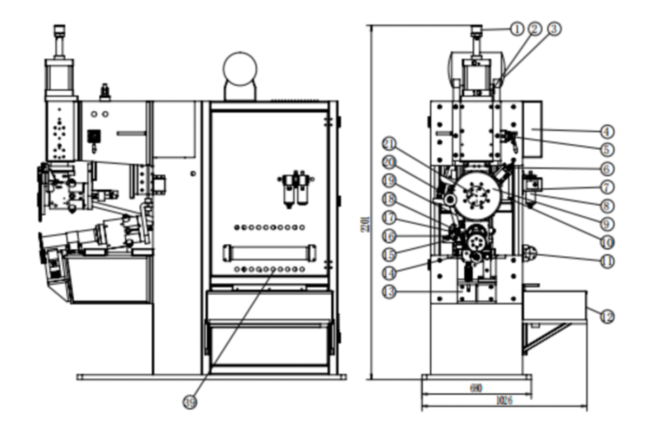

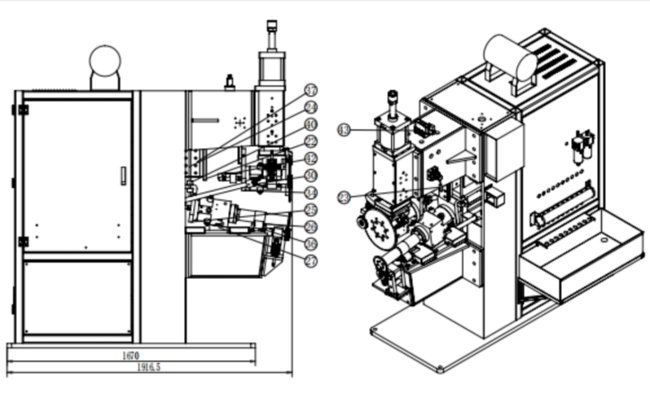

Drawings

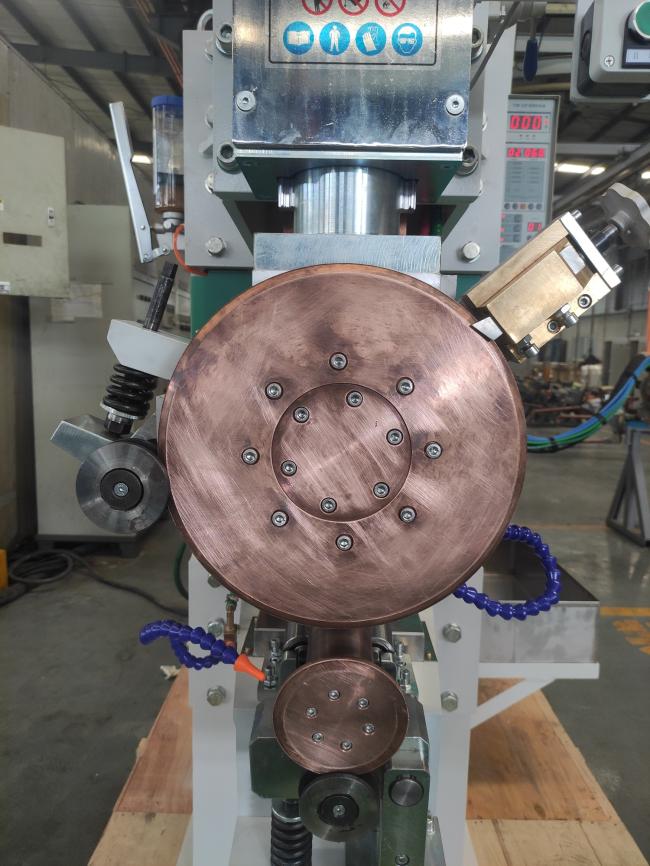

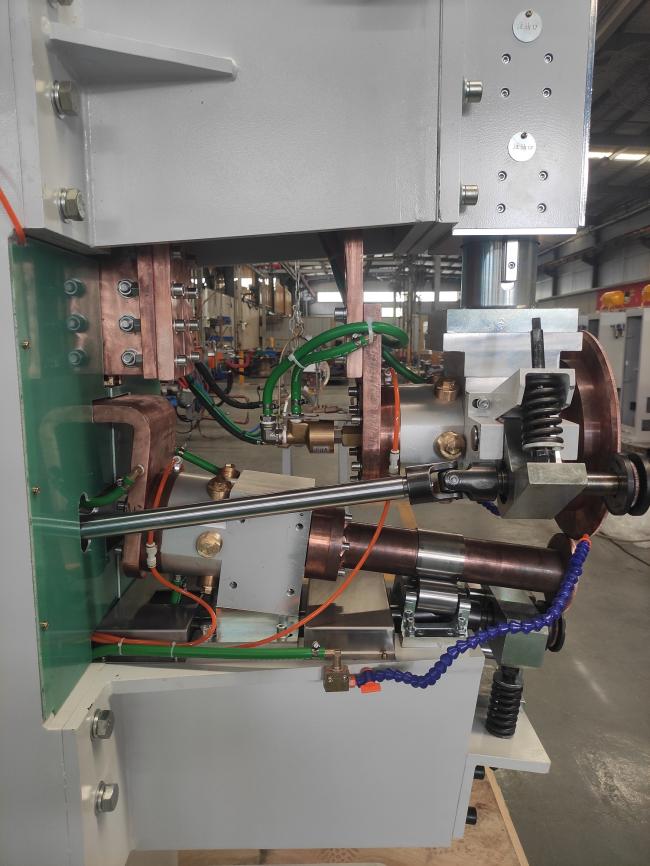

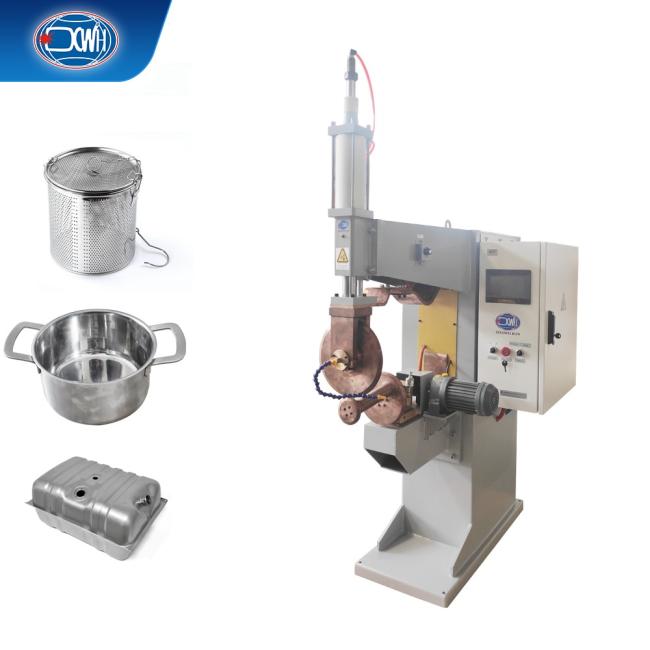

Detail Images
More details, please contact!
