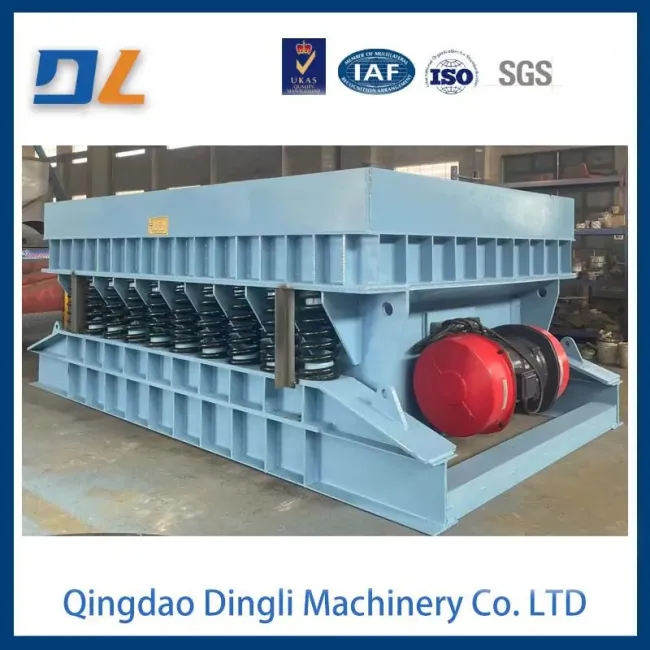

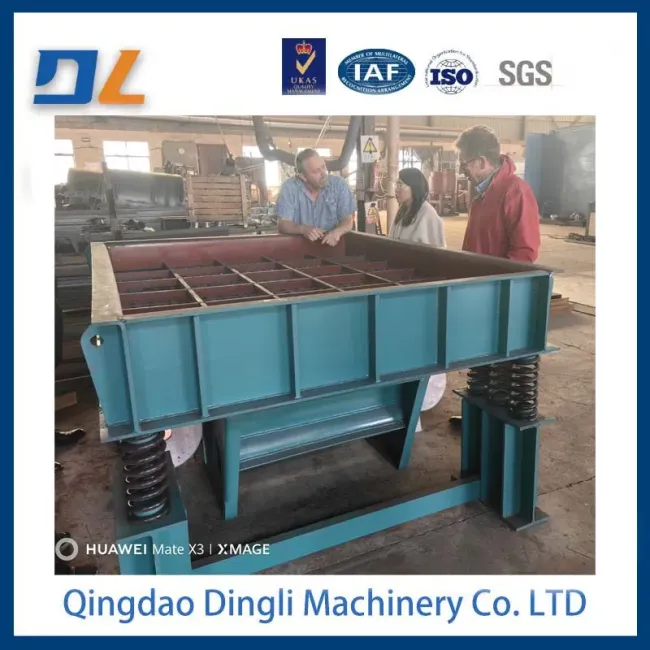

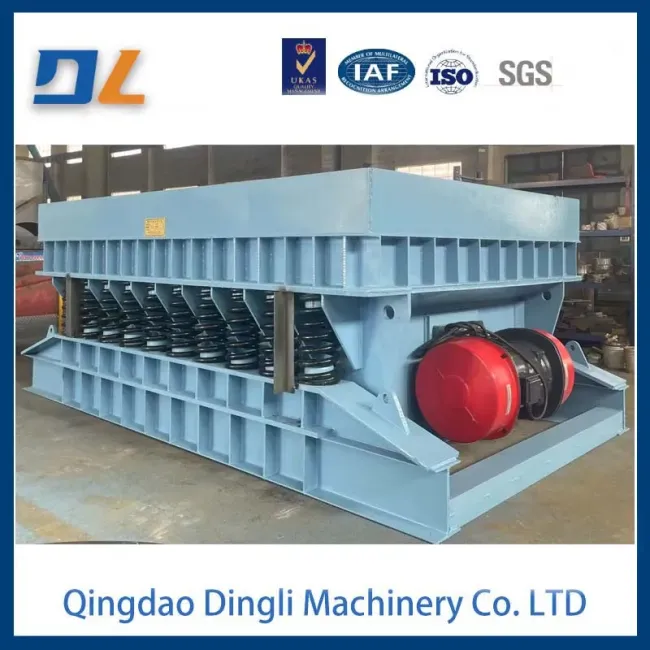

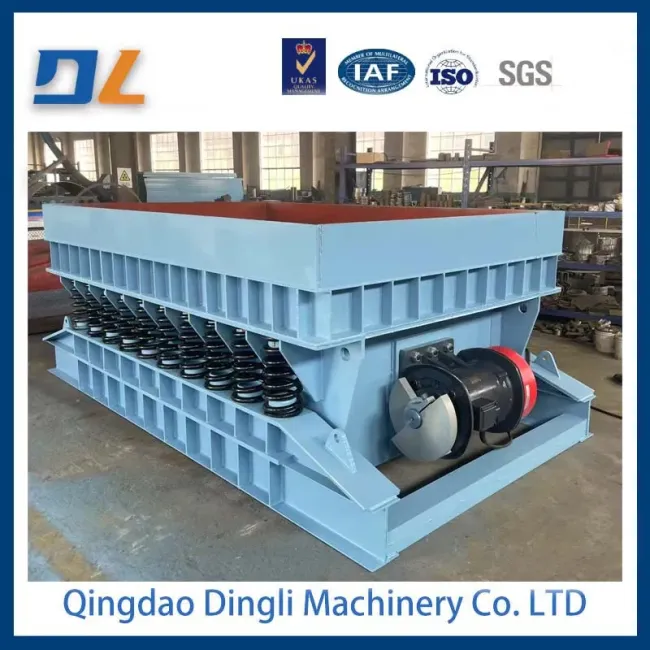

vibration shakeout machine is mainly used for casting production line casting sand, clear, casting slow cooling and dust removal function concurrently at the same time, comprehensive performance is good, can be a complete process of work. Workpiece size less than 1000 x 1000 mm.
Technical specifications
Vibration body width -- -- -- -- -- 1300 mm
Vibration body length -- -- -- -- -- L = 4400 mm
Productivity (iron, sand) - - - - - - 40 tons/hour
Motor power -- -- -- --, 11 kw
Motor model -- -- -- -- -- -- YZU - 75-6
Dedusting cooling air volume - 20000 cubic meters/hour
Overall dimensions - 4400 * 1550 * 1550 (mm)
Machine quality -- -- -- -- -- --, 5 tons
The machine structure
This machine is mainly composed of base, vibration device, vibration, etc.
