I. model and name of the machine

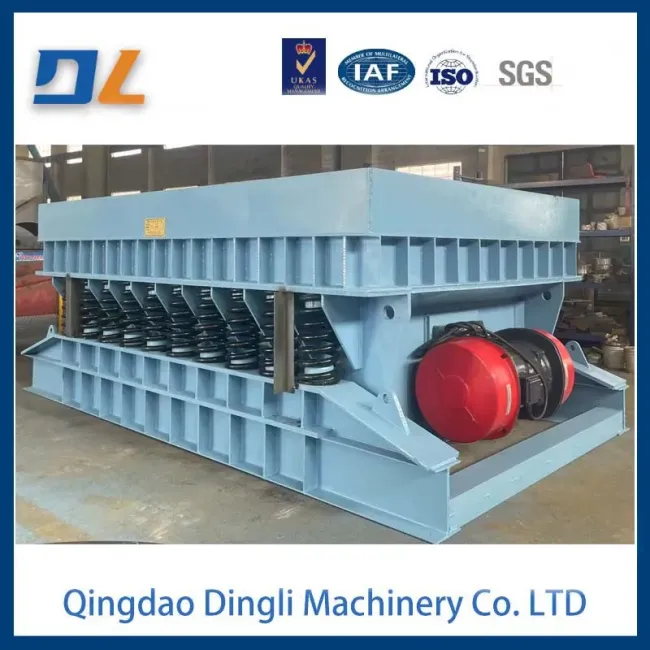

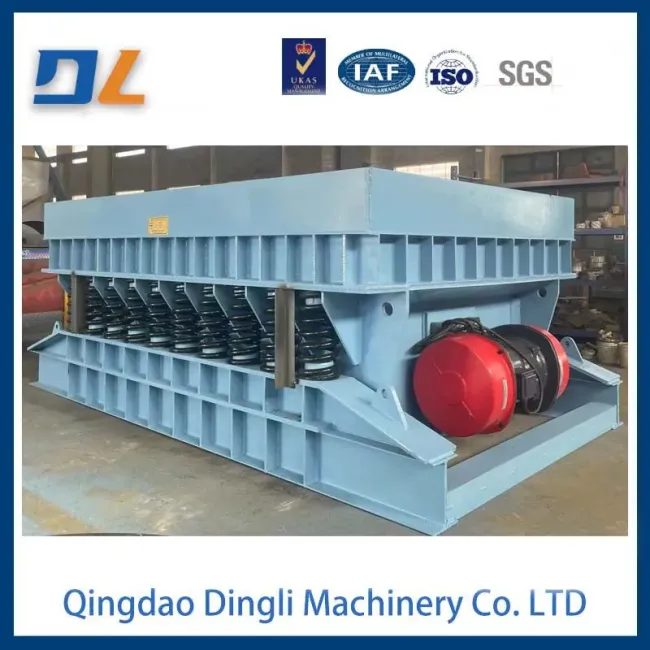

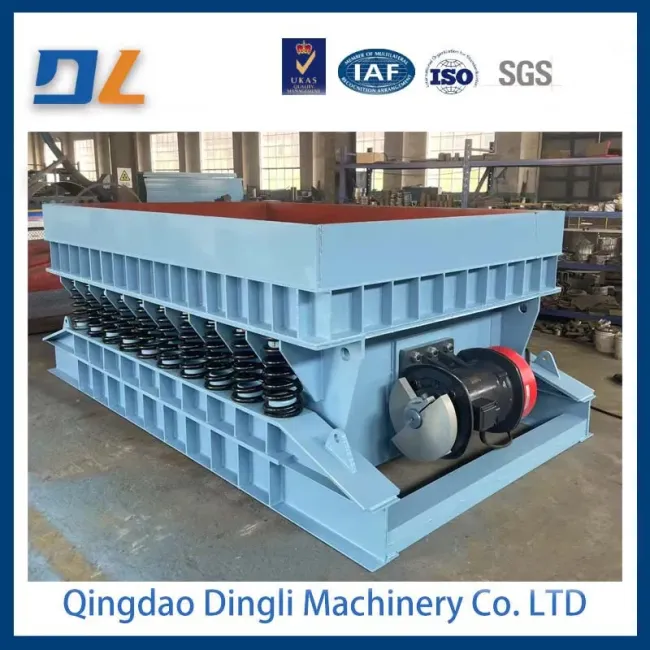

This product is L252 type inertial vibrating conveyance sand falling machine (abbreviation sand falling machine) its appearance is shown in figure 1.

2. Purpose and scope of use of sand removal machine

The sand shaker is used in the casting line of medium and small size.After casting, the sand mold is separated from the casting by the box turning machine, and the sand group is further broken. The crushed sand group falls back into the sand belt through the grid hole, and the casting is transported along the conveying direction, and the sand on the surface of the casting is treated by the cleaning department.

Iii. Main technical specifications of sand removal machine

Machine appearance size: 4320 x 1100 x 1330mm (length x width x height)

Single grid size: 4120 x 1000mm

Total weight: ~ 5800Kg

Vibration motor model: yzu-75-6b

Power: 5.5 Kw x 2

Maximum excitation force: 75KN by 2

Motor speed: 970r/min
