Purpose and scope of use of sand shaker

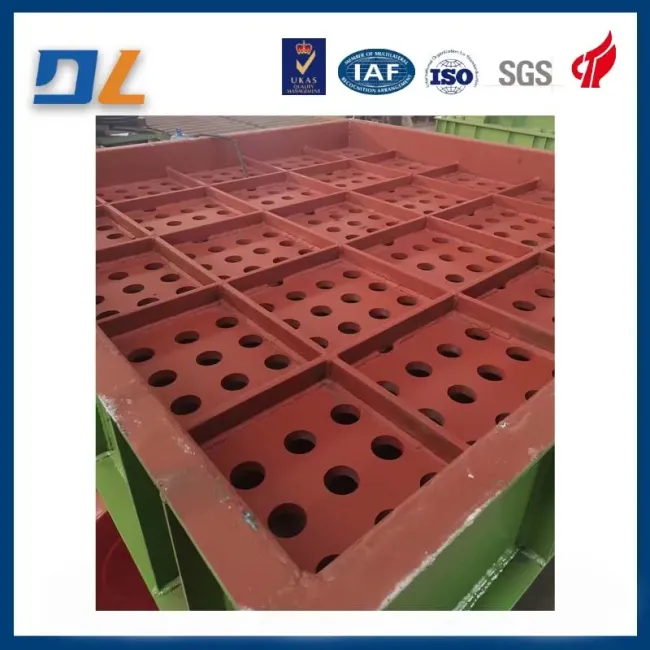

This shakeout machine is used to separate the sand mold from the castings and the sand boxes after the casting of the casting factory.The detached sand mass is further broken and passes through the raster hole to fall back onto the sand strip.

Technical specification of sand shaker

Machine appearance size -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 3000 x 2400 mm

A payload weight -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 6500 kg

Vibrating motor:

Vibration motor type ------------------------------ ------------------------YZU -- 100-6b

Rated excitation force -------------------------------- -------------------------------- 100,000 N by 2

Total power of vibration motor -------------------------- ----------2 x 7.5kw

The main structure and working principle of sand - dropping machine

1. Main structure of sand removal machine

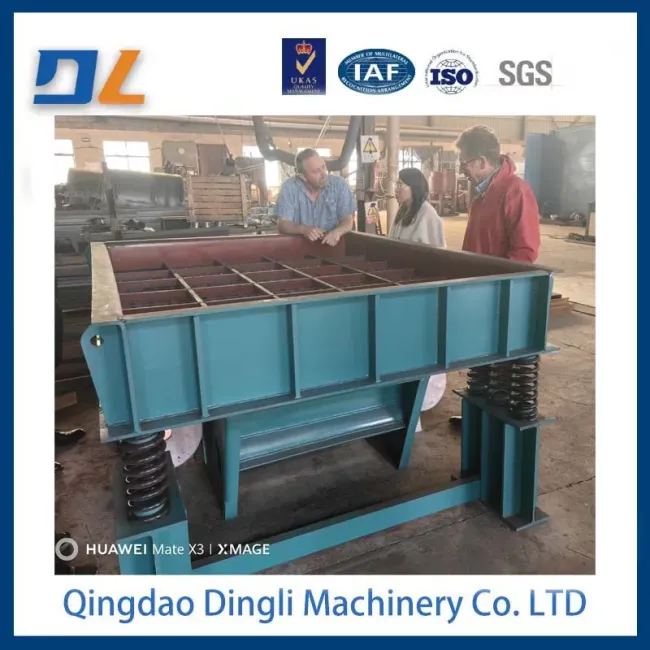

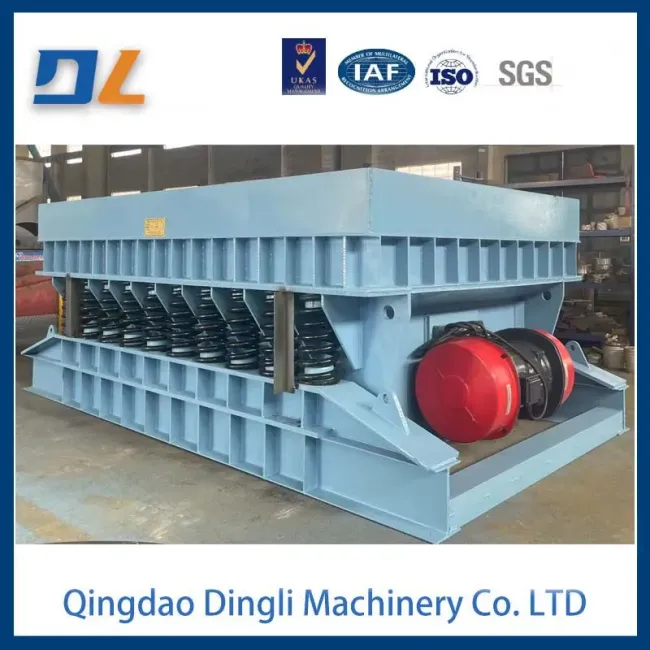

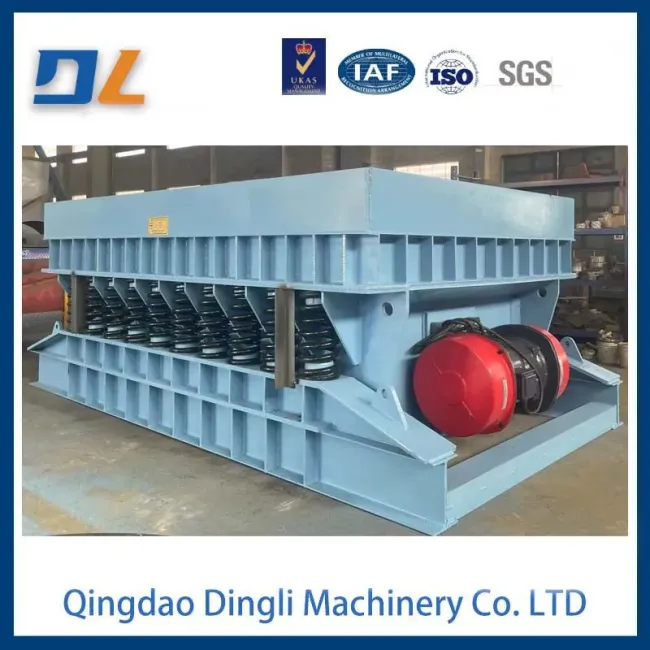

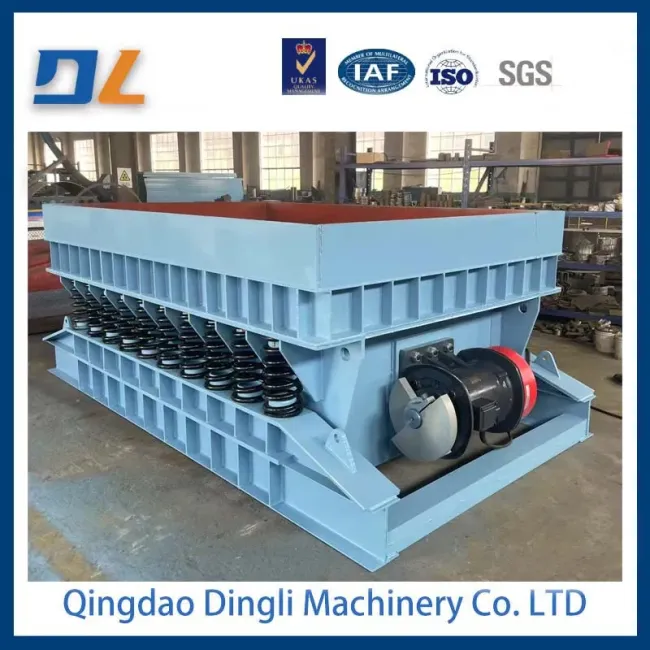

The structure of shaker mainly consists of frame and base.All adopt welding structure.The frame is supported on the base by vibration isolation spring. A pair of excitation motors are installed symmetrically on the side wall of the frame body. The resultant vibration force is perpendicular to the upper plane of the grid to form a single body structure.
