China Made Vertical Conveying Bucket Elevator for Lifting Old Sand and New Sand Powder
Price:
US $5,000-5,500 / P
MOQ:
1 Piece
Delivery Time:
Negotiable
Product Description
Qingdao Dingli Machinery Co., Ltd. is located in the beautiful seaside-Qingdao Pingda. the company set research,manufacturing,installationandcommissioning,after-sales service in one. It mainly produces resin sandproductionline,clay sandproductionline,coated sandproductionUne equipment, various sand treatment single machine equipment,etc. The company has advance casting machinerymanufacturinganddevelopmenttechnology,theproductionof products can full meet theinternationaland domestic market demand.The company has excellent design and R&D team, skilledconstructionteam, domestic leadwi casting equipment design concept,perfect after-sales service system, is willing to cooperate with the majority of foundryenterprisesto create a better tomorrow.
In line with the"down-to-earth, integrity-based, focus on service,continuousinnovation"businessphilosophy,throughcontinuousefforts. We use our own efforts and focus on thedevelopmentof a series of perfectprocessingequipment to meet the different needs of users.
Characteristic:

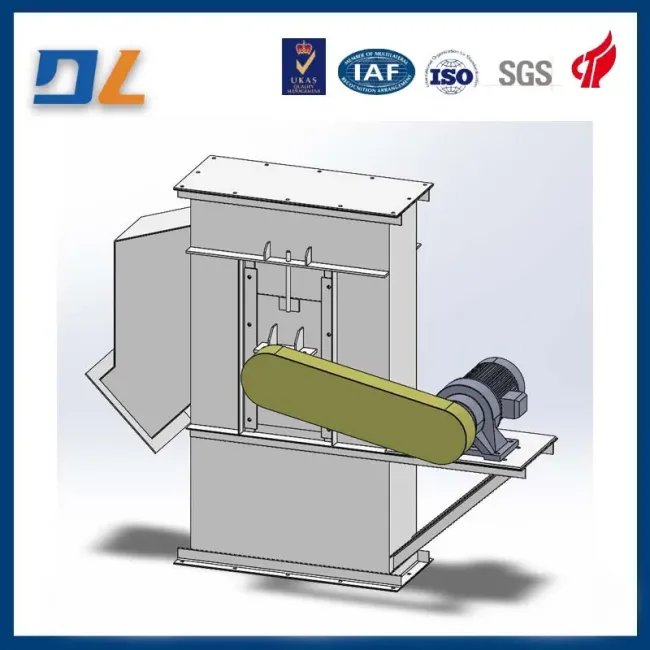

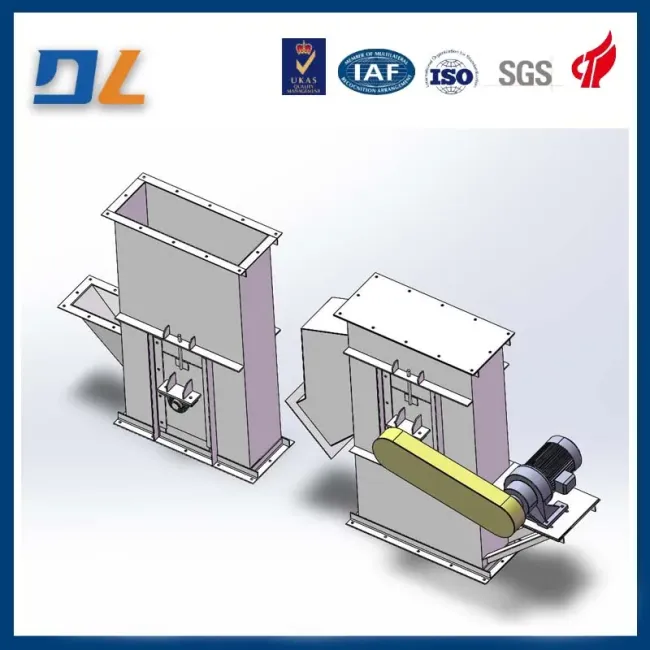

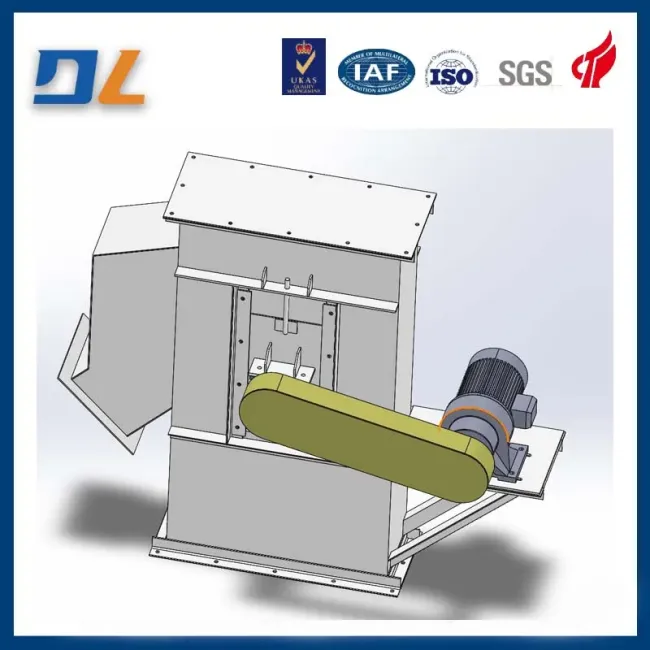

This machine is a modified design of D-type bucket elevator. It is a commonly used vertical conveying equipment in themechanizedcasting workshop. It is mainly used for lifting old sand,waste sand,new sand,cleaning iron shot and other bulk materials. It can be arranged into various forms of conveying system incooperationwith belt conveyor and other equipment.
| Model | Y3716 | Y3725 | Y3735 | Y3745 | |||||
| Deep bucket | Shallow bucket | Deep bucket | Shallow bucket | Deep bucket | Shallow bucket | Deep bucket | Shallow bucket | ||
| () Bucket width(mm |
160 | 250 | 350 | 450 | |||||
| () Capacity(liters) |
1.10.65 | 3.22.6 | 7.87.0 | 14.515 | |||||
| () Bucket distance(mm) |
300 | 400 | 500 | 640 | |||||
| (3/) Transport capacity(m3/h) |
8 | 3.1 | 21.6 | 11.8 | 42 | 25 | 69.5 | 48 | |
| () Weight per meter of hopper and adhesive tape(kg) |
4.72 | 3.8 | 10.2 | 9.4 | 13.9 | 12.1 | 21.3 | 21.3 | |
| Conveying | () Width(mm |
200 | 300 | 400 | 500 | ||||
| Number of plies | 4 | 5 | 4 | 5 | |||||
| () Outer glue layers(mm) |
1.5/1.5 | 1.5/1.5 | 1.5/1.5 | 1.5/1.5 | |||||
| (/) Operating speed of hopper(m/s) |
1.25 | 1.25 | 1.25 | ||||||
| (/) Rotation number of driving drum(rpm) |
47.5 | 47.5 | 47.5 | 47.5 | |||||
| () Maximum size of conveyed materials(mm) |
25 | 25 | 25 | 25 | |||||
