Portable Garage Shelter Metal Garden Shed Prefab Metal Car Garage Buildings Kit Steel Pole Barn
Steel structure garage has features of high fire resistance, strong corrosion resistance, solid and durable enough to withstand high winds, snow disasters, and earthquakes. steel structure garage is mainly refers to the main bearing component is composed of steel.Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect, the building structure forms a link between the mainframe and the secondary structure to form a stable structural system.
| Specification | ||||
| Items | Specification | |||
| Main Steel Frame | Column | Q235, Q355 Welded H Section Steel | ||
| Beam | Q235, Q355 Welded H Section Steel | |||
| Secondary Frame | Purlin | Q235 C and Z purlin | ||
| Knee brace | Q235 Angle Steel | |||
| Tie Rod | Q235 Circular Steel Pipe | |||
| Brace | Q235 Round Bar | |||
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |||
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
||
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |||
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window | ||
| Door | Sliding Sandwich Panel Door / Rolling Metal Door | |||
| Rainspout | PVC | |||
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |||
| Wind Resistance Grade | 12 Grades | |||
| Earthquake-resistance | 8 Grades | |||
| Structure Usage | Up to 50 years | |||
| Finishing Options | Vast array of colors and textures available | |||
| Paint Options | Alkyd paiting, two primary painting, two finish painting (Primer ,Medium paint ,top coat, epoxy zinc etc.) Or Galvanized. |
|||
JinHongTong offers metal building frames main categories:CS Clear Span, MS Multi Span, CL Classic, HS High Span, SST Single Slope, SSS Single Slope, LT Lean-To, Customo Designs.
Our primary framing acts as a single unit after assembly that will support the load of the finished structure while transferring the weight to the foundation.

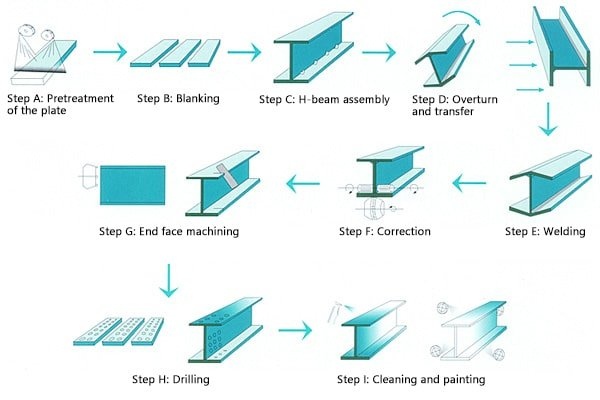

1.Solid Built-up I-beam main frame construction; 2.high strength plate steel; 3.Submerged Arc/welded Frames.

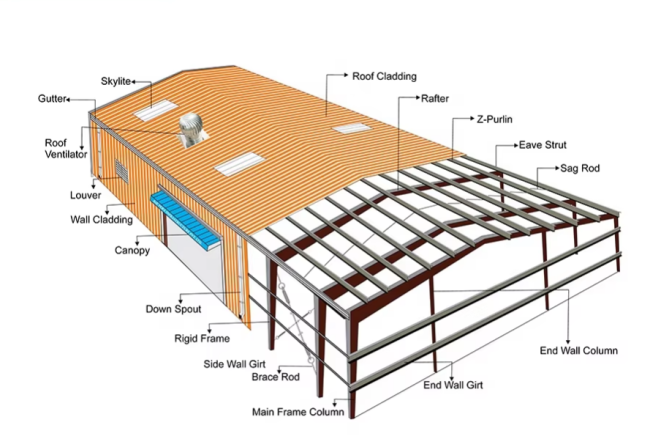

JinHongTong has a generous selection of secondary structural shapes, sizes, and gauges to fit your every need. Secondary structural framing includes purlins and girts (cee and zee profiles), eave struts, base angles, clips, and other miscellaneous structural parts, which are the members that support the wall and roof panels.
Secondary Framing Systems
(Roof Secondary Structural)
(Wall Structural)

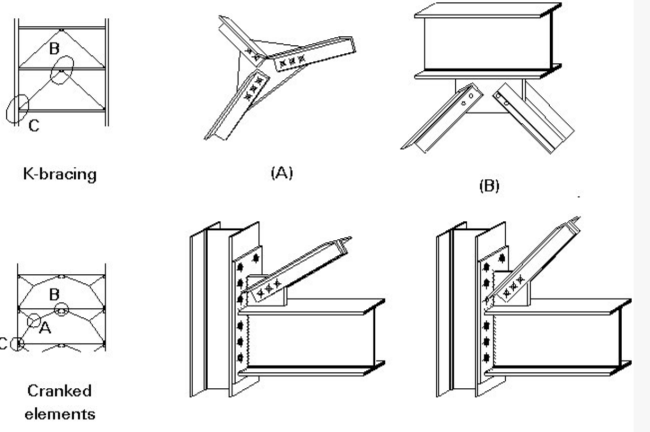

Girt conditions refer to the method in which horizontal girts are attached to the exterior columns of your building. The decision on which structural members to use will be based on the economy of each member, the wall system used, product application, or by customer choice.

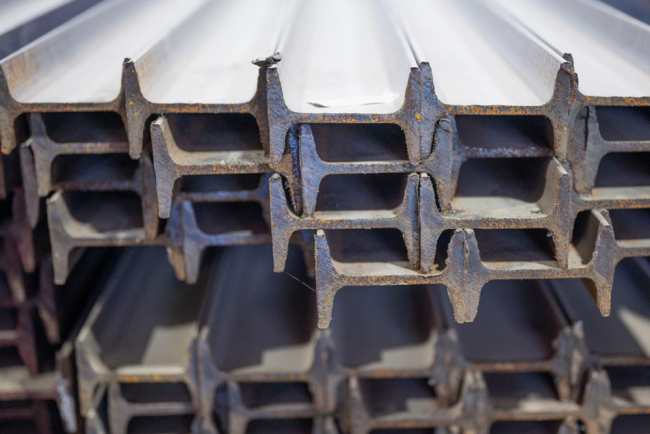

I-Beams, also known as H-Beams have and I or H cross-section. The horizontal elements of the “I" are flanges while the vertical element is the “web". I-Beams are commonly made of structural steel but can be formed out of aluminum. I-beams are most widely used in construction and can have an application for use in both beams as well as columns. Hope offers many different sizes, lengths, and specifications for
