Jk Pb2a16s20p BMS for Solar Energy Storage 16s 48V 100A 150A 200A Compatible with Deye/Growatt
Price:
US $73.86-89 / Piec
MOQ:
2 Pieces
Delivery Time:
Negotiable
Product Description
PRODUCT MODEL | JK-PB2A16S20P |
Number of Battery Strings(Li-ion) | 7S-16S |
Number of Battery Strings(Lifepo4) | 8S-16S |
Number of Battery Strings{LTO) | 14S-16S |

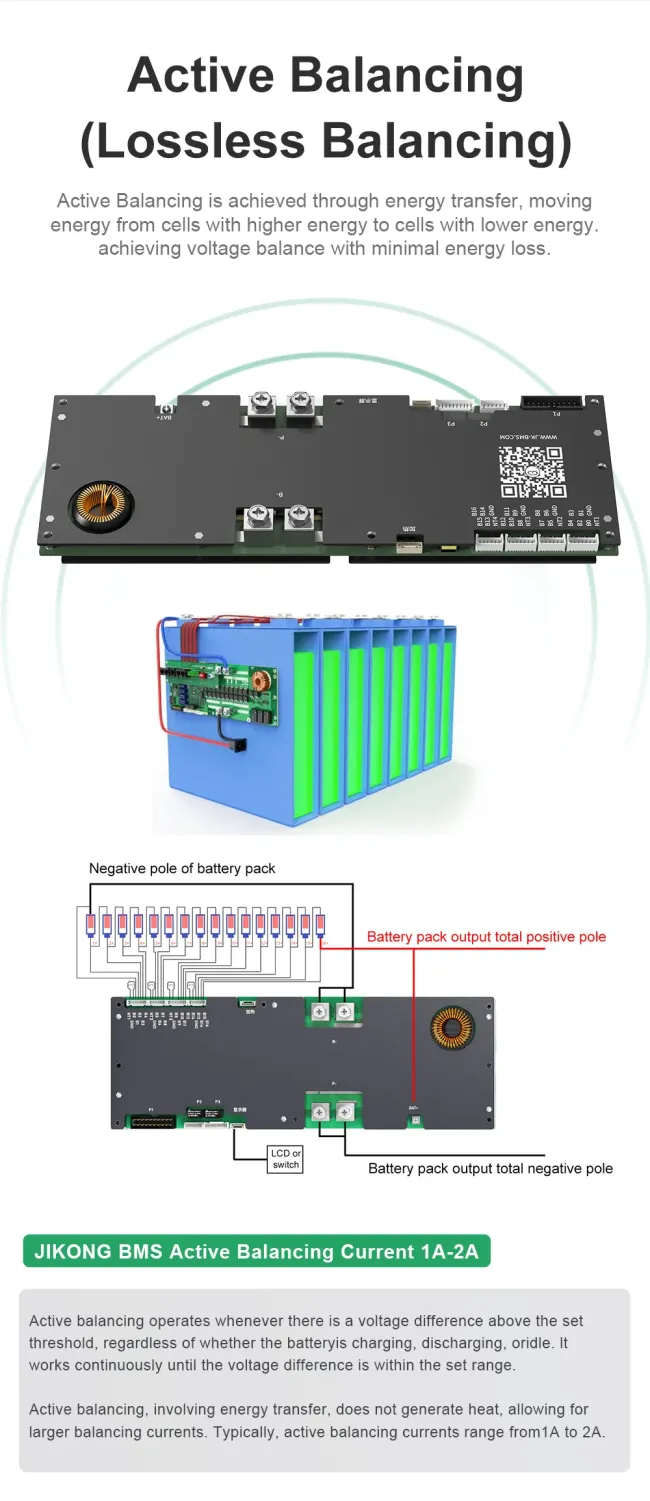

Balance Method | Active Balance(Full State On) |

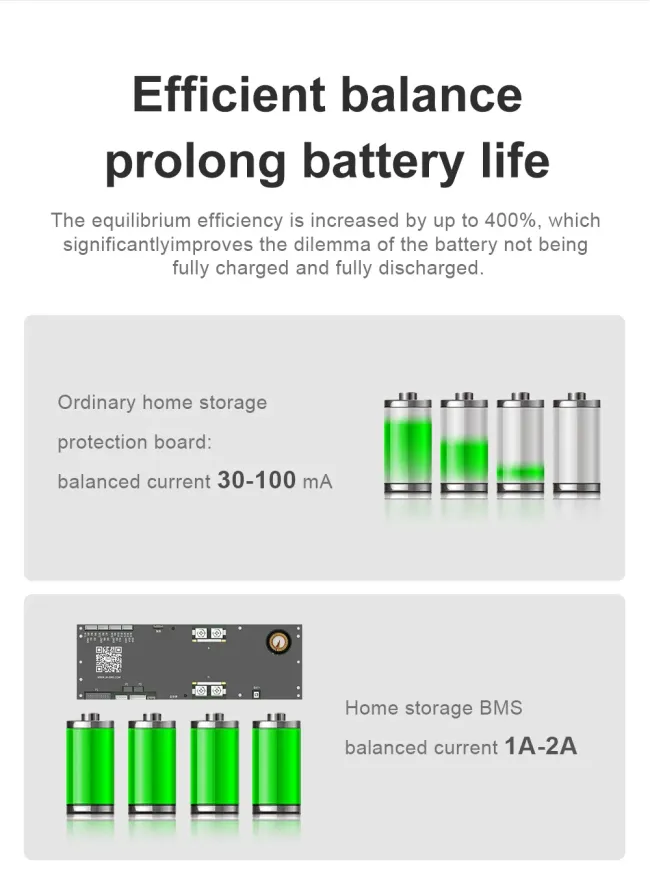

Balance Current | 2A |
Conductive Resistance in Main Circuit | 0.35mΩ |
Continuous Charge Current | 200A |
Continuous Discharge Current | 200A |
Maximum Discharge Current | 400A |
Over Charge Protection Current(ADJ) | 10-200A |

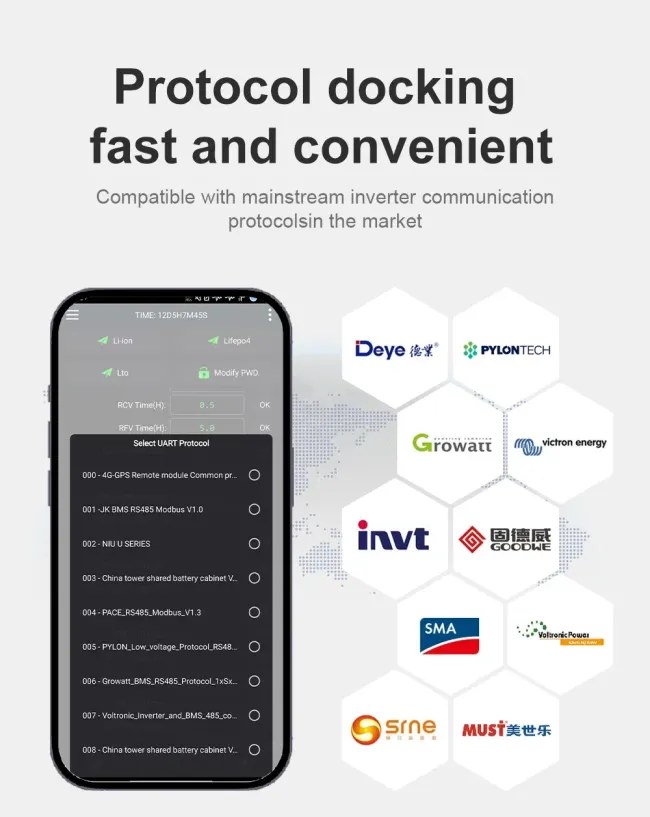

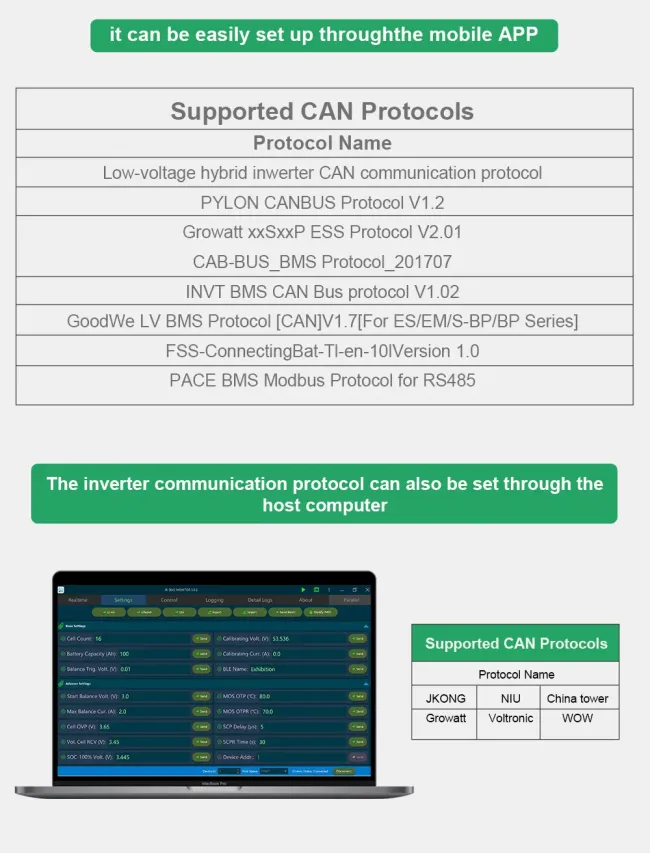

Other Interfaces(Defaut) | RS485/232/CAN |
Proteetive plate size | 300*100*24mm |
Supply Voltage | 20-70V |
Standby power consumption | 12mW |
Operating temperature | -30-70°C |
Maximum number ofcollection strings | 16S |
Wiring Output | Common Port |
Display interface | Support |
Heating interface | Support |
Bluetooth Function | Support for Android/lOS/Harmony |
Charging overwoltage, overeurrent protection | Support |
Discharge uder woltage, over currentprotection | Support |
Shont eireuit protection | Support |
Battery parallel current limiting function | Support |
Single Cell Voltage Range | 1-5V |
Voltage Acquistion Accuracy | ±3mV |
Over Charge Protection Voltage | 1.2-4.4V Adjustable |
Over Charge Relese Voltage | 1.2-4.4V Adjustable |
Over Current Detect Delay | 2~600S Adjustable |
Over Discharge Protection Voltage | 1.2-4.4V Adjustable |
Over Discharge Relese Voltage | 1.2-4.4V Adjustable |
Quantity of Temperature Detection | 4 |
Temp Protection | Yes |
Short Circuit protection | Yes |
Coulomb Counter | Yes |
Parallel charging current limiting | 10A |
Address dial swith | 4 |
DRY Contact | 2 |
Size/mm | 300*100*24mm |
