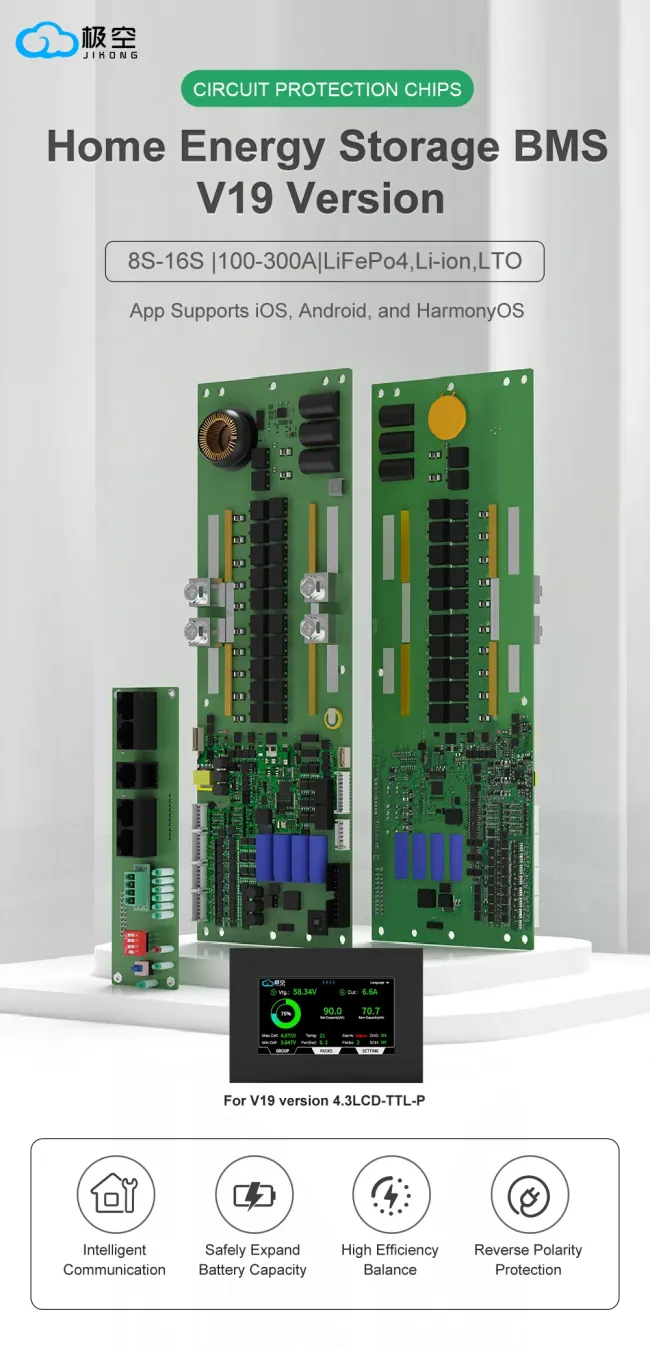

Smart BMS Active Balancer Home Energy Storage Protection Board RS485 Jk BMS Jk-Pb1a16s15p

Price Negotiable

Price: US $50.29-62 / Piec

MOQ: 2 Pieces

Delivery Time: Negotiable

Product Description

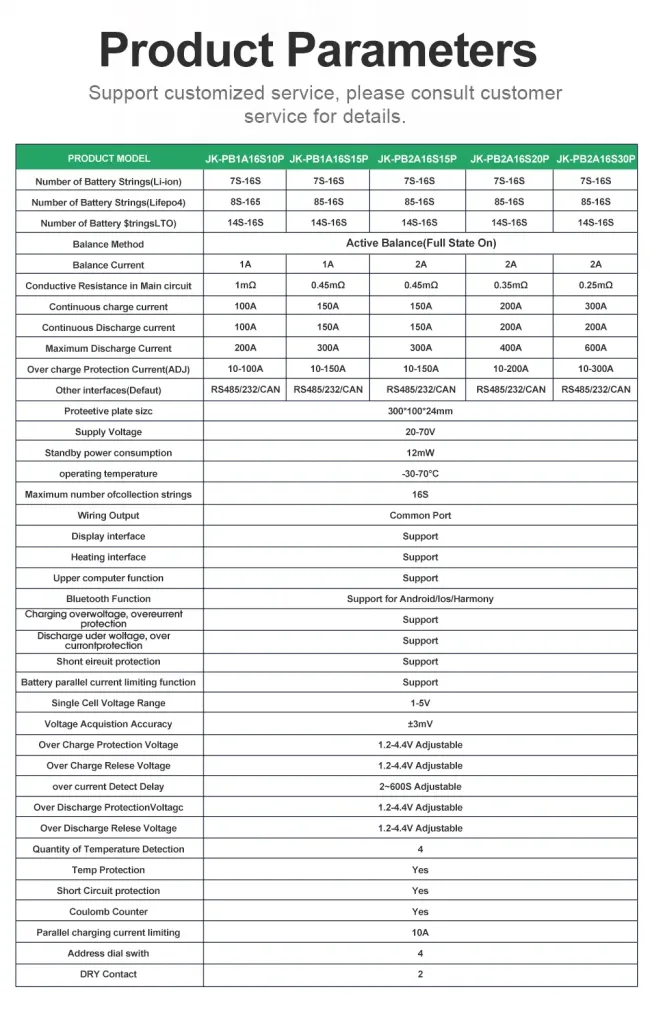

PRODUCT MODEL	JK-PB1A16S15P
Number of Battery Strings(Li-ion)	7S-16S
Number of Battery Strings(Lifepo4)	8S-16S
Number of Battery Strings{LTO)	14S-16S

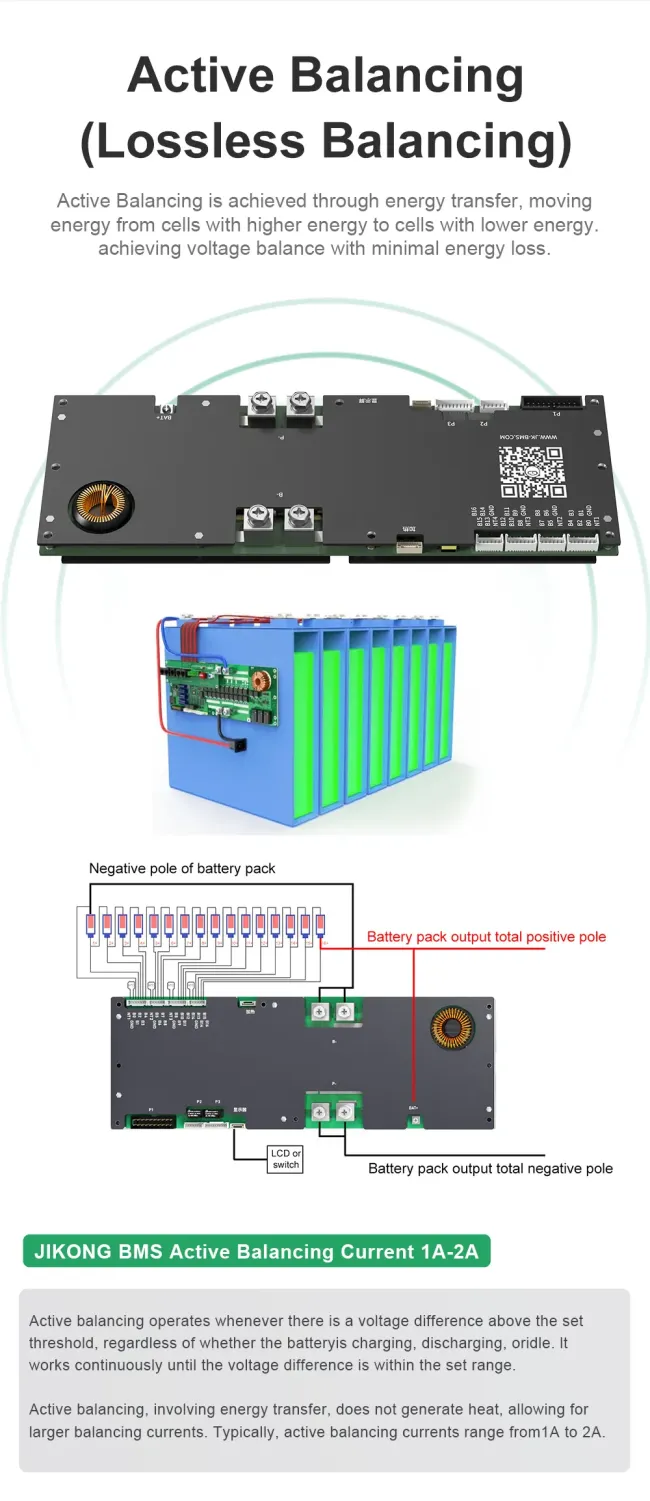

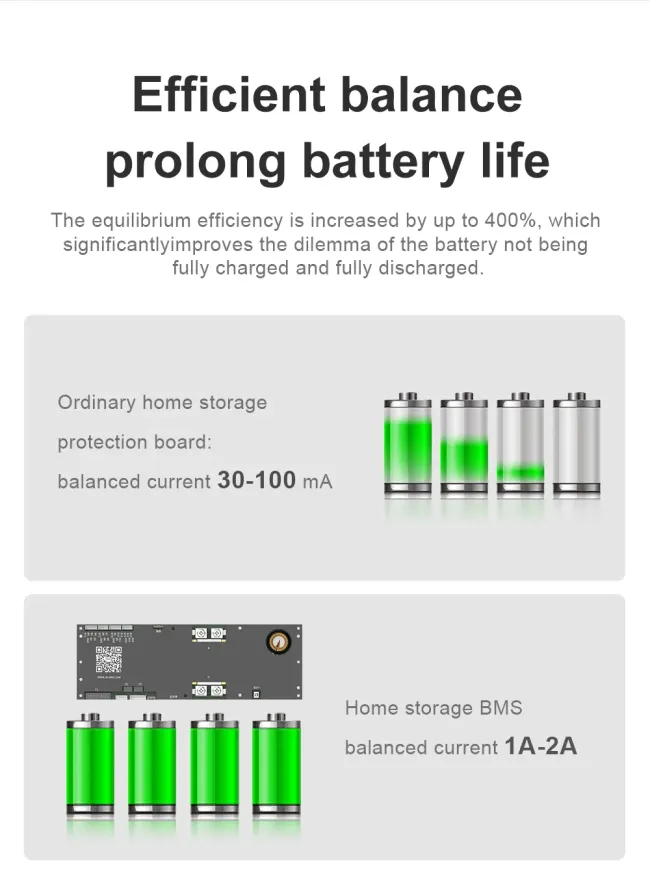

Balance Method	Active Balance(Full State On)
Balance Current	1A
Conductive Resistance in Main Circuit	0.45mΩ
Continuous Charge Current	150A
Continuous Discharge Current	150A
Maximum Discharge Current	300A
Over Charge Protection Current(ADJ)	10-150A

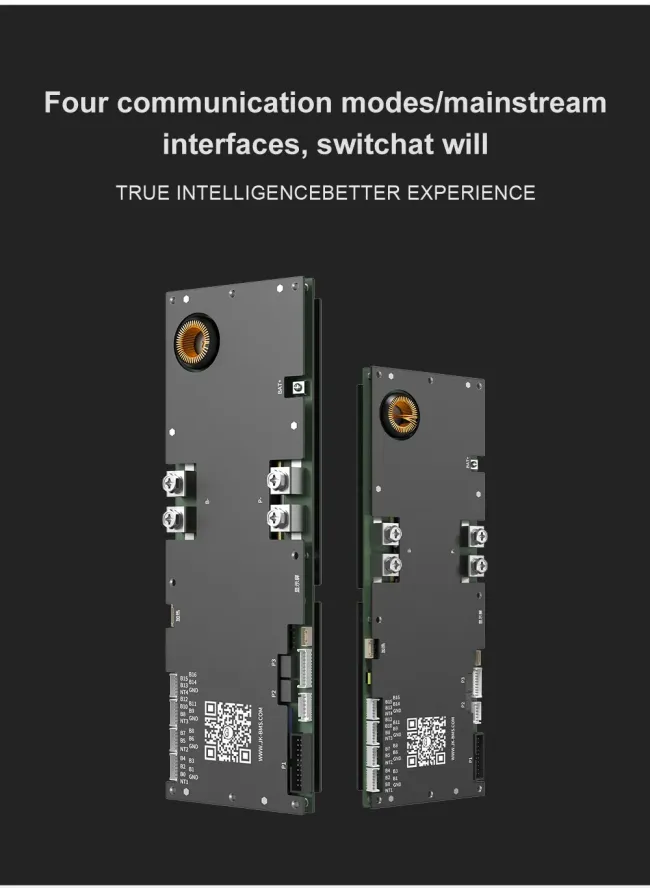

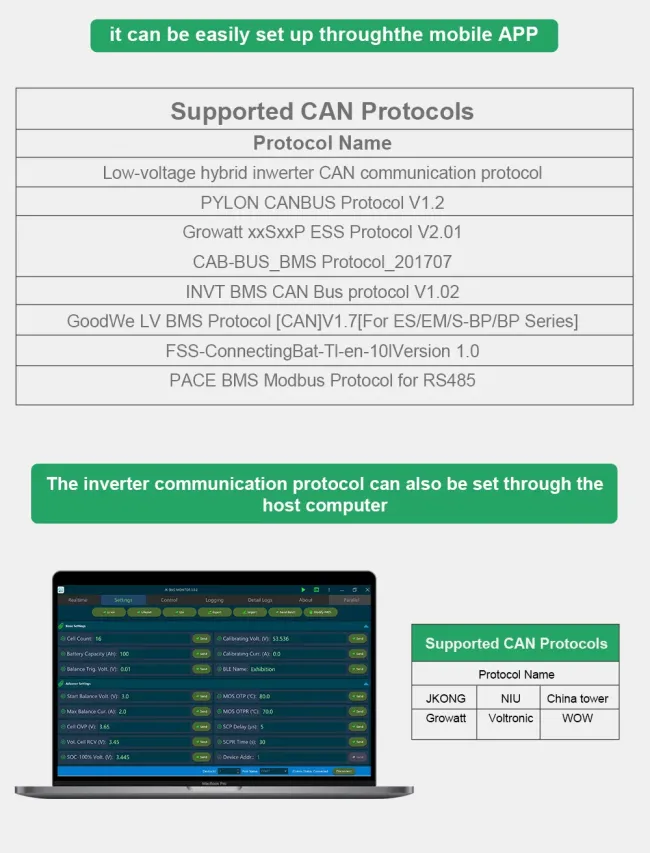

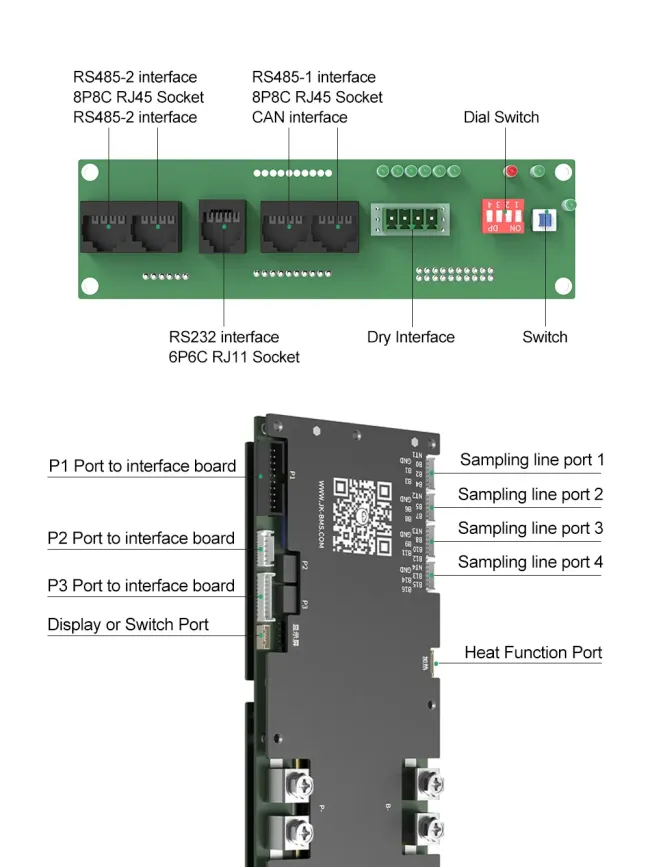

Other Interfaces(Defaut)	RS485/232/CAN
Proteetive plate size	30010024mm
Supply Voltage	20-70V
Standby power consumption	12mW
Operating temperature	-30-70°C
Maximum number ofcollection strings	16S
Wiring Output	Common Port
Display interface	Support
Heating interface	Support

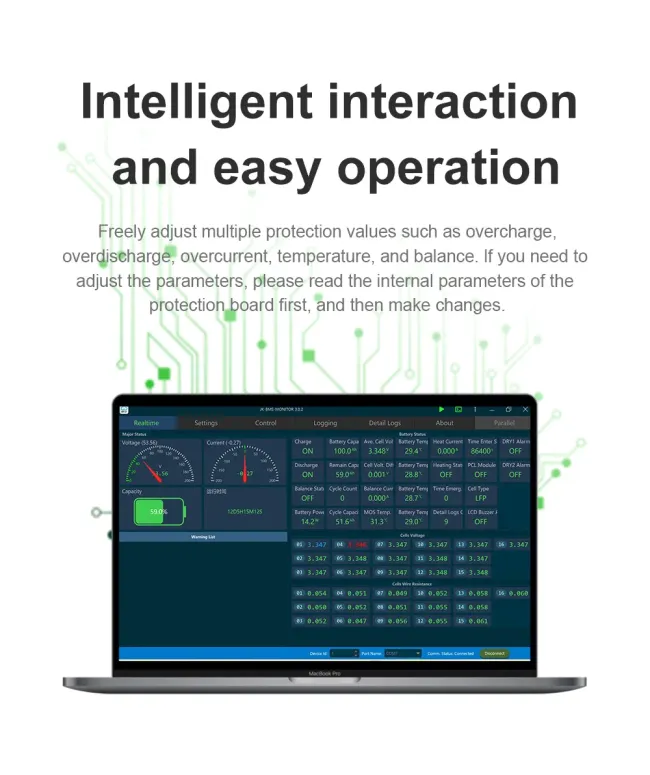

Upper computer function	Support

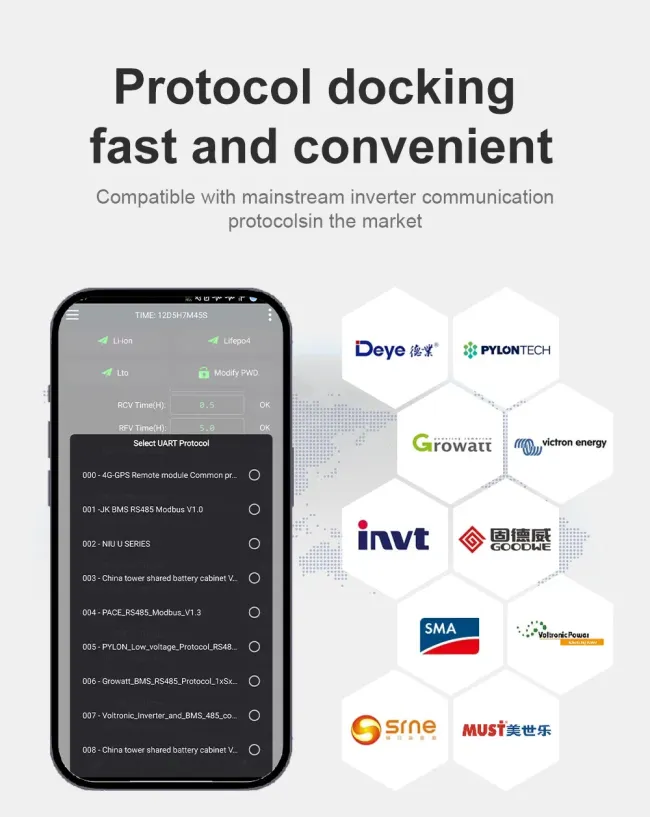

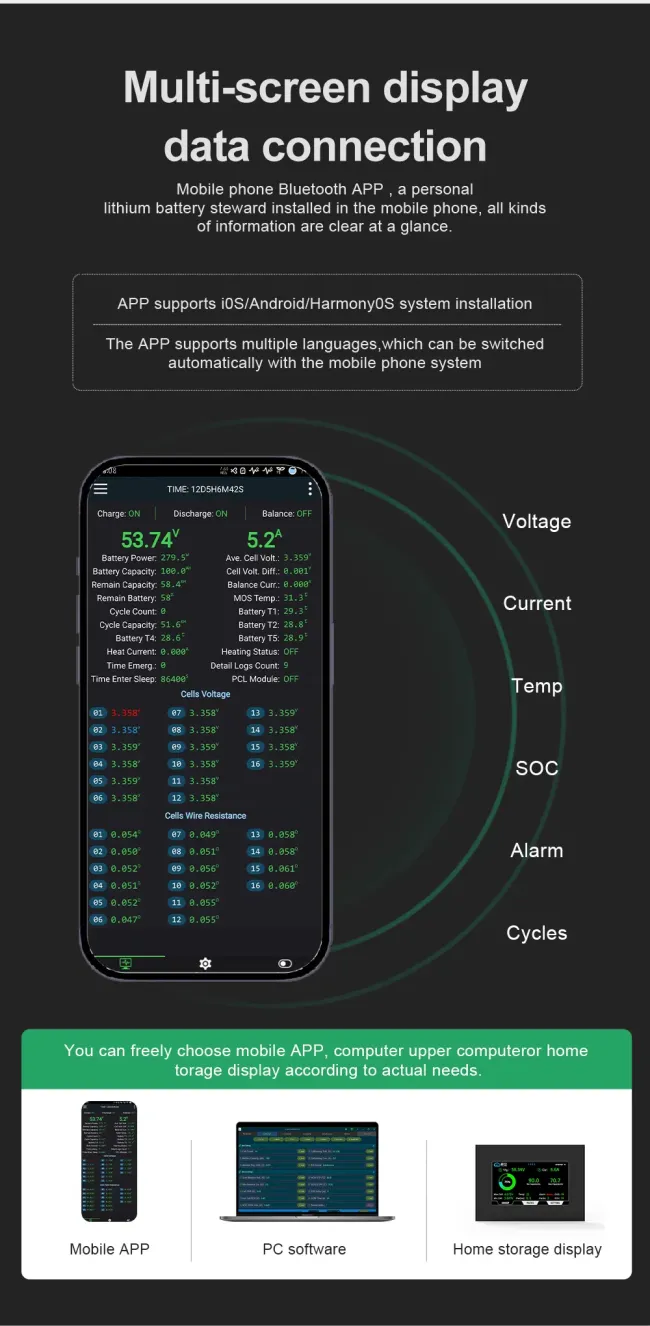

Bluetooth Function	Support for Android/lOS/Harmony
Charging overwoltage, overeurrent protection	Support
Discharge uder woltage, over currentprotection	Support
Shont eireuit protection	Support
Battery parallel current limiting function	Support
Single Cell Voltage Range	1-5V
Voltage Acquistion Accuracy	±3mV
Over Charge Protection Voltage	1.2-4.4V Adjustable
Over Charge Relese Voltage	1.2-4.4V Adjustable
Over Current Detect Delay	2~600S Adjustable
Over Discharge Protection Voltage	1.2-4.4V Adjustable
Over Discharge Relese Voltage	1.2-4.4V Adjustable
Quantity of Temperature Detection	4
Temp Protection	Yes
Short Circuit protection	Yes
Coulomb Counter	Yes
Parallel charging current limiting	10A
Address dial swith	4
DRY Contact	2
