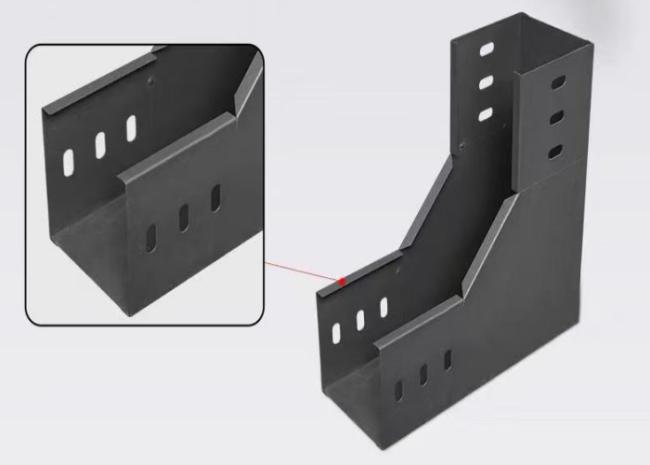

Perforated Type 90 Degree Bend Cable Tray
90 Degree Bend Cable Tray
The 90 Degree Bend Cable Tray of Bending provides a safe, organized pathway for power and control cables, protects cables from damage, and ensures neat installation in commercial, industrial, and construction projects.
Common Specifications
The 90 Degree Bend Cable Tray of Bending is essential for routing cables around corners, enabling safe and organized installation.
| Feature | Description |
|---|---|
| Core Function | To change cable routing direction within a cable tray system |
| Typical Angles | Most common is 90°; also called "90° Horizontal Bend" |
| Key Directions | Horizontal Bend: Changes direction within the same horizontal plane. Vertical Bend: Changes direction upward or downward |
| Common Types | Ladder Type: Open rung design for ventilation. Solid/Perforated Type: Has a continuous or partially enclosed base |
| Standard Materials | Aluminum, Galvanized Steel, Stainless Steel |
Primary Application Scenarios
| Application Scenario | Specific Role & Details |
|---|---|

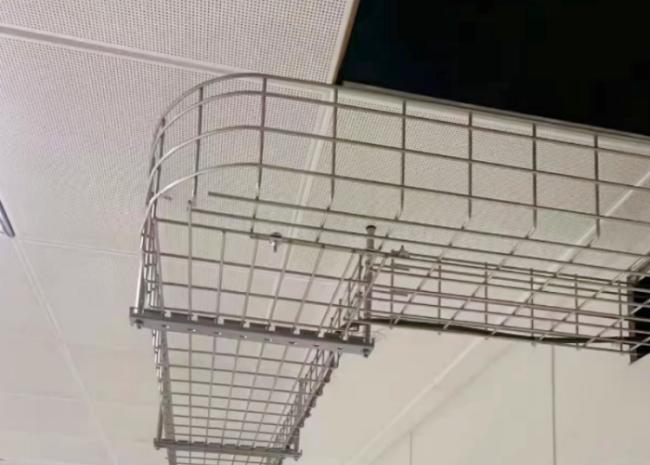

| Navigating Building Corners | Enables cable trays to make 90-degree horizontal turns around corners in hallways, equipment rooms, and along perimeter walls, maintaining a neat and structured pathway. |
| Inter-floor Vertical Routing | Acts as a vertical riser bend to facilitate cable runs between different floors through shafts or raised floors, changing direction vertically. |
| Routing Around Obstructions | Allows the cable tray system to detour around fixed structural obstacles like columns, beams, or large pipes without interrupting the run. |
| Terminating at Equipment | Used to turn the tray run precisely towards control panels, switchgear, server racks, or transformers for a clean and direct cable drop. |
| Creating Perimeter Loops | In large facilities, multiple 90-degree bends are used in conjunction with straight sections to form rectangular or square cable tray loops around a space. |
Frequently Asked Questions
1. Are you a manufacturer?

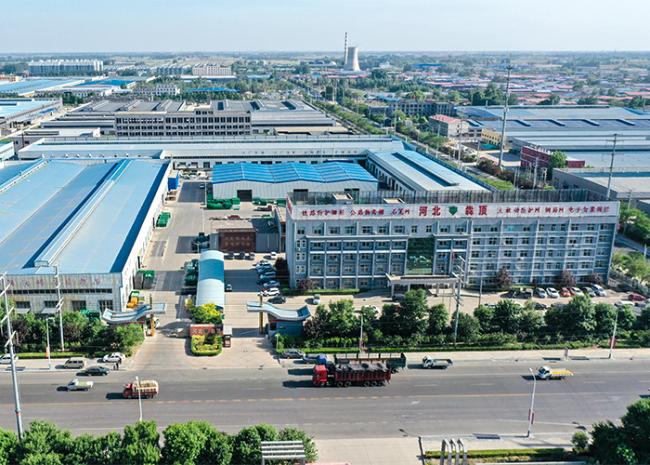

Yes, we have been in this field for over 30 years.
2. Can you provide samples?
Yes, we can provide samples with our product catalog. (However, the express delivery cost will be borne by you.)
3. What payment terms do you accept?
Payment methods: Wire transfer (T/T), Letter of Credit (L/C), MoneyGram, Credit Card, PayPal, Western Union.
4. What are your shipping terms?
FOB, CNF, CIF, DDU, DDP.
5. What is your delivery time?
We always have ample stock of materials to meet your urgent needs. The fastest delivery time is only 10 days. After placing an order, we will send you the exact delivery time and production schedule.
