New Energy EV Battery Lift Platform Vehicle Scissor Lift 500Kg
Price:
Negotiable
MOQ:
1set
Delivery Time:
5-10 days
Brand:
Iter
Product Description
New Energy EV Battery Lift Platform Vehicle Scissor Lift 500Kg By Air Operation
Product Specifications
Color:
red/blue/yellow/green
your request
Lifting Capacity:
1100lbs/500kg
Payment Terms:
EXW/FOB/CIF
Lifting Height:
38"/1170mm
Lifting Time:
25seconds
Product Features
- Designed specifically for new energy vehicle maintenance, including engine and gearbox servicing
- Features automatic mechanical safety device with single shear design for smooth lifting operation
- Available with optional electric or pneumatic hydraulic systems
- Platform designed with grill and insulation paste for easy movement and battery pack support
- Universal sliding table platform with manual locking for precise positioning
- 0-4 degree forward/backward tilt adjustment for optimal vehicle alignment
- Universal self-locking wheels for faster, more convenient operation
- 12V electric control box with battery - no external power required
- Hydraulic system equipped with explosion-proof device for safe, reliable operation
Technical Specifications
| Lifting Capacity | 1100Lbs/500kg |
| Lifting Height | 38"/1170mm |
| Lifting Time | 25.5seconds |
| Min Height | 13"/410mm |
| Overall Width | 18"/550mm |
| Overall Length | 32"/1150mm |
| Motor Voltage | 220V/380V |
| Frequency | 50Hz or 60Hz |
| Phase | 1Ph/3Ph |
| Net Weight | 800Lbs/364kg |

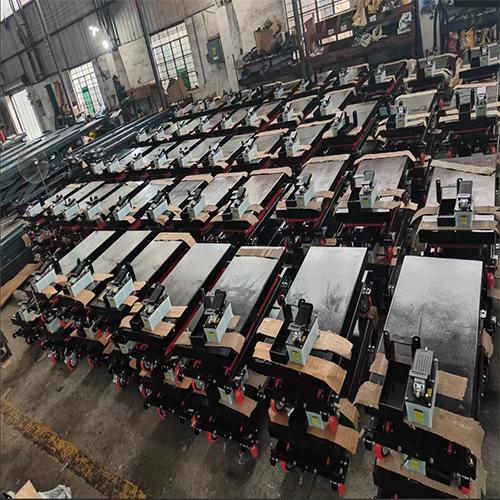

Product Images
