Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable

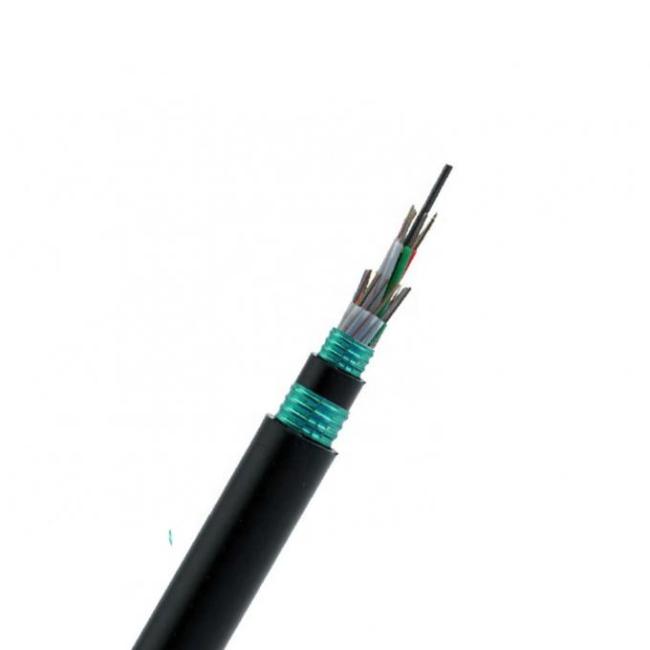

Outdoor fiber optic cable GYTS53 direct buried stranded loose tube armored cable designed for robust outdoor applications.
- Available with single-mode G652, G655, G657 or multimode fibers in loose tubes made of high modulus plastic
- Water-resistant filling compound for complete cable core protection
- Steel wire central strength member, sometimes sheathed with polyethylene
- Tubes and fillers stranded around strength member into compact circular cable core
- Double sides chromium PSP with PE outer sheath
- Compatible with single or double wire lashing installation methods
- Outdoor distribution fiber optic cable systems
- Suitable for aerial, duct pipeline, and direct buried installation using lashing method
- Long distance and local area network (LAN) communication systems
- Excellent mechanical and temperature performance
- High strength loose tube with hydrolysis resistance
- Special tube filling compound for critical fiber protection
- Superior crush resistance and flexibility
- PE/LSZH sheath protects against ultraviolet radiation
- 100% cable core filling for complete moisture protection
| Cable Type | GYTS53 |
|---|---|
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct buried |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) Short Term | Long Term |
Allowable Crush Resistance (N/100mm) Short Term | Long Term |
|---|---|---|---|---|---|---|
| 4 | 9.5 | 80 | 4 | 1 | 3000 | 1000 | 3000 | 1000 |
| 12 | 9.5 | 80 | 6 | 2 | 3000 | 1000 | 3000 | 1000 |
| 24 | 9.5 | 80 | 6 | 4 | 3000 | 1000 | 3000 | 1000 |
| 96 | 14.6 | 220 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 288 | 21.6 | 310 | 12 | 24 | 3000 | 1000 | 3000 | 1000 |
This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for details.
Cable is supplied in lengths as specified in PI or as required. Each length is shipped on a separate iron-wooden drum with minimum barrel diameter not less than 30 times the cable diameter.
Cable ends are sealed with plastic protection caps to prevent water penetration and remain easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
