GYXTC8S Fiber Optic Outdoor Cable Central Tube Self Support Armored Aerial cable
GYXTC8S fiber optic cable is a figure 8 structure cable designed for aerial installation in long-haul communications. Available in 2-core to 144-core configurations, this optical cable features excellent mechanical and environmental performance.
- Central loose tube design with proper excess length
- Minimizes lateral crush influence
- Water-resistant tape for water-tight properties
- Corrugated steel tape armor and PE outer sheath
- Provides crush resistance and gun shot resistance
- Figure 8 cross section with stranded self-supporting wires
- Excellent strain performance and convenient installation
| Cable Type | GYXTC8S |
|---|---|
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended Installation Methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) |
|---|---|---|---|---|
| 2~12 | 7.6*15.6 | 142 | 7000 (Short Term) 4000 (Long Term) |
1000 (Short Term) 300 (Long Term) |
| >12 | Available upon customer's request | |||
This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for details.
| Test | Standard |
|---|---|
| Max Tension Performance | IEC 60794-1-2-E |
| Max. Operation Tension | IEC 60794-1-2-E1 |
| Crush Test | IEC 60794-1-2-E3 |
| Impact Test | IEC 60794-1-2-E4 |
| Repeated Bending | IEC 60794-1-2-E6 |
| Torsion Test | IEC 60794-1-2-E7 |
| Cable Bend | IEC 60794-1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Test | Standard |
|---|---|
| Temperature Cycling | IEC 60794-1-2-F1 |
| Water Penetration | IEC 60794-1-2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |

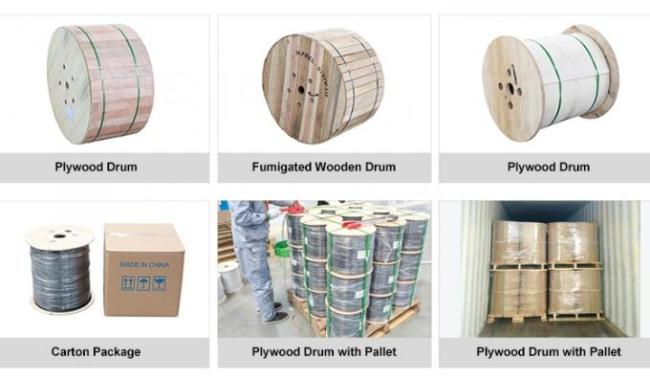

Cable is supplied in lengths as specified in PI or as required. Each length is shipped on a separate non-returnable wooden drum with a minimum barrel diameter not less than 30 times the cable diameter.
Each reel is completely covered with a reusable thermal wrap fastened by packaging straps, providing excellent thermal and UV protection. Cable ends are sealed with plastic protection caps to prevent water penetration and remain easily accessible for testing.
A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
