GYTS 6 Core Fiber Optic Outdoor Cable Water Resistance For Telecommunication
Price:
500-3000RNB/KM
MOQ:
20km
Delivery Time:
It depends on the actual situation
Brand:
MingTong
Product Description
GYTS 6 Core Loose Tube Optical Fiber Cable
GYTS Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
6 Core Optical Fiber Cable Features
- Choice of Fibre Type
- Colour code of Fibre
- High water resistance
- High crush resistance
- Choice Sheath Material
- Low attenuation and dispersion
- Good flexibility and bending performance
Application Fields
- Aerial
- Duct
Structure Characteristics
Metallic strengthen member (phosphated steel wire)
Double coated PE Corrugated steel tape under PE sheath
Technical Characteristics
| Fiber range | Cable outer diameter (mm) | Cable weight (kg/km) | Min. bending radius | Allowable tension (N) | Max. crush loading force (N/100mm) | |||
|---|---|---|---|---|---|---|---|---|
| Static | Dynamic | Short | Long | Short | Long | |||
| 2-30 | 9.8 | 115 | 10× cable diameter | 20× cable diameter | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.6 | 140 | Same specifications as above | |||||
| 38-60 | 11 | 140 | Same specifications as above | |||||
| 62-72 | 11.6 | 165 | Same specifications as above | |||||
| 74-96 | 13.2 | 205 | Same specifications as above | |||||
| 98-120 | 14.7 | 245 | Same specifications as above | |||||
| 122-144 | 16.1 | 285 | Same specifications as above | |||||
| 146-216 | 16.6 | 300 | Same specifications as above | |||||
| 218-240 | 19.8 | 395 | Same specifications as above | |||||
| 242-288 | 22 | 470 | Same specifications as above | |||||

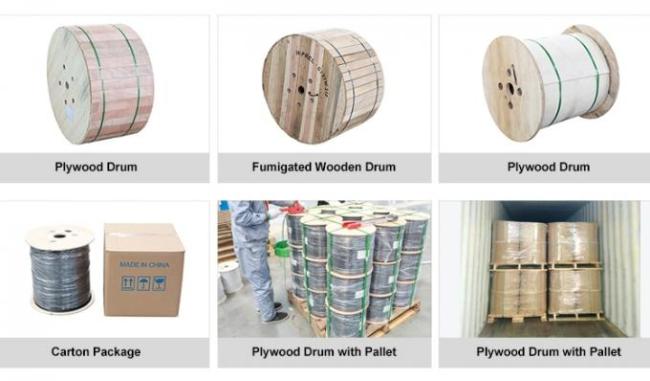

Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
