High Temp Stability Optical Fiber Patch Cord UPC APC 0.5m 1m 3m 5m 10m Length
Price:
5-200RNB/P
MOQ:
200
Delivery Time:
It depends on the actual situation
Brand:
MingTong
Product Description
Polish UPC APC Pigtail Fiber Optic Cable High Temperature Stability

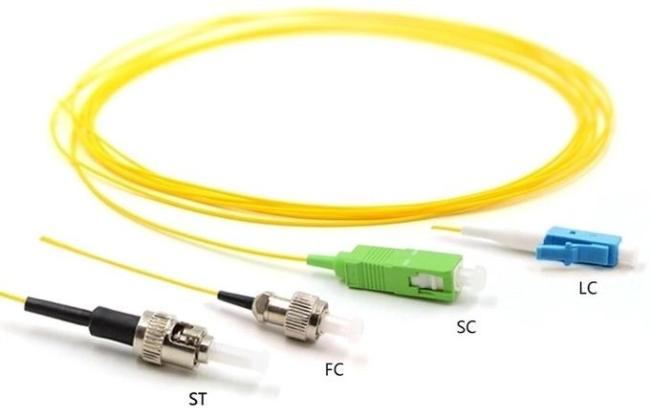

Product Overview
An optical fiber pigtail is a length of fiber with a connector at one end, used for connecting the beam path. It can have various types of connectors and three types of polished fiber end-faces (PC, UPC, and APC). Our advanced techniques and equipment ensure high-quality mass production.
Key Features
- Low insertion loss
- High return loss
- Good repeatability
- Good exchangeability
- High temperature stability
Applications
Applications include optical fiber communication systems:
- Optic-fiber data communications in various applications
- Multiple applications utilizing optic-fiber data communications
- Different scenarios benefiting from optic-fiber access networks
- LAN optic-fiber sensors for multiple applications
Technical Parameters
| Parameter | Single Mode | Multi-mode | PC |
|---|---|---|---|
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.1dB | ||
| Repeatability | ≤0.1dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
| Apex Offset | 0μm ~ 50μm | ||
| Radius of Curvature | 7mm ~ 25mm | ||
| Standards-Compliant | ROHS, IEC and GR-326 | ||
Specifications
Fiber Type
Single mode: 9/125-G652D, 9/125-G657
Multi-mode: 50/125-OM2, 62.5/125-OM1, 50/125-OM3
Multi-mode: 50/125-OM2, 62.5/125-OM1, 50/125-OM3
Fiber
Corning, China Fiber, other
Connector
SC, FC, LC, ST, MU, DIN, MTRJ, E2000, MPO, SMA, D4 and others
Polishing
PC, UPC, APC, MTRJ Male connector, MTRJ female connector
Cord Type
Simplex, Duplex
Cable Diameter
0.9mm, 2.0mm, 1.8mm, 3.0mm
Cable Jacket
PVC, LSZH, OFNR, OFNP
Length (M)
0.5m, 1m, 3M, 5m, 10m, 20m, 200m or other

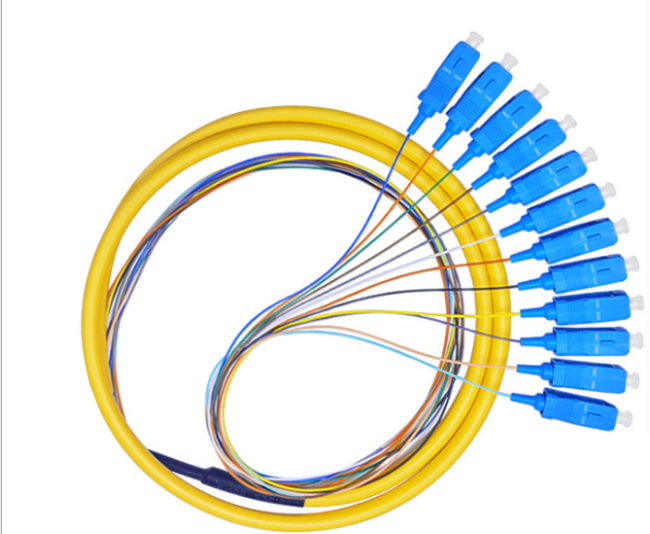

Product Appearance
