OEM Logo PE Sheath Armored Fiber Optic Cable GYXTW 12 Core 24 Core Water Resistant
Price:
500-5000RNB/KM
MOQ:
20km
Delivery Time:
It depends on the actual situation.
Brand:
MingTong
Product Description
Corning Armored Fiber Optic Cable Black Outer Sheath GYXTW Fiber Cable
Product Overview
12/24 Core Single/Multi Mold Outdoor Armoured Aerial Fiber Optic/Optical Cable (GYXTW)
Cable Structure
The central loose tube fiber optic cable features optical fibers positioned in the center of the cable, filled with compound and protected by a PE jacket, reinforced by double steel wires for superior strength and durability.
Key Features
- Double wire strain member provides excellent strain performance
- Superior mechanical performance and reliability
- Easy installation and operation
- Small outer diameter, lightweight, tight structure with excellent bending properties
- Excellent water-resistant properties
Technical Specifications
Construction Details
The 250μm fibers are positioned in a high modulus plastic loose tube filled with water-resistant compound. The tube is wrapped with PSP longitudinally, with water-blocking material applied between PSP and loose tube. Two parallel steel wires are placed at the sides of the steel tape, completed with a polyethylene (PE) sheath.
Performance Characteristics
- Excellent mechanical and temperature performance
- High strength loose tube resistant to hydrolysis
- Special tube filling compound ensures critical fiber protection
- Superior crush resistance and flexibility
- PSP enhancing moisture protection
- Two parallel steel wires ensure tensile strength
- Small diameter, light weight and installation friendly
- Long delivery length capability
GYXTW cable complies with Standard YD/T 769-2003.
Optical Characteristics
| Parameter | G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|
| Attenuation @850nm | - | - | ≤3.0 dB/km | ≤3.0 dB/km |
| Attenuation @1300nm | - | - | ≤1.0 dB/km | ≤1.0 dB/km |
| Attenuation @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | - | - |
| Attenuation @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | - | - |
| Bandwidth @850nm | - | - | ≥500 MHz*km | ≥200 MHz*km |
| Bandwidth @1300nm | - | - | ≥1000 MHz*km | ≥600 MHz*km |
| Numerical Aperture | - | - | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | - | - |
Mechanical Parameters
| Cable Type | Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|
| GYXS/GYXTW-2~12 | 2~12 | 10.0 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-2~12 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-14~24 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-26~36 | 26~36 | 14.0 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-38~48 | 38~48 | 15.0 | 216 | 1000/3000 | 1000/3000 | 10D/20D |
Storage/Operating Temperature: -40ºC to +70ºC
Applications
Aerial & Duct installations

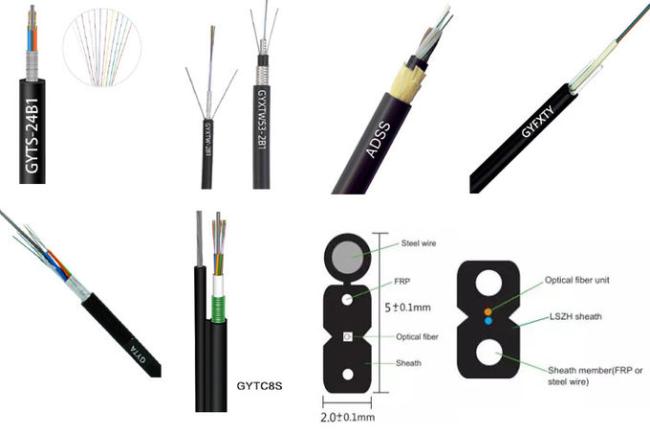

Related Products
