Telecommunication Armoured SM Fiber Optic Cable Small Diameter OEM Color ISO Approved
Price:
500-5000RNB/KM
MOQ:
20km
Delivery Time:
It depends on the actual situation.
Brand:
MingTong
Product Description
Telecommunication Fiber Optic Cable Single Mode Armoured Outdoor Cable 2 core - 12 core
Product Overview

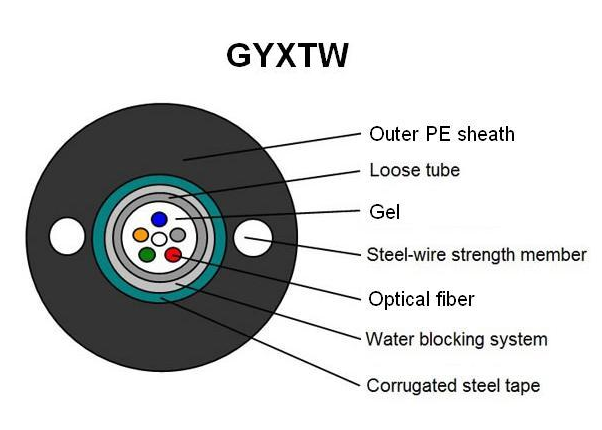

Telcom Fiber Optic Cable SM 2-12 F Unitube Outdoor
Loose tube with 250μm fibers, filled with water-resistant compound and wrapped with PSP layer longitudinally. Water-blocking material applied between PSP and tube for compactness. Cable has parallel steel wires and PE sheath.
Key Characteristics
- Excellent mechanical and temperature performance
- Hydrolysis-resistant loose tube with high strength
- Critical fiber protection and crush resistance
- Enhanced flexibility and moisture-proofing PSP
- Parallel steel wires for superior strength
- Small diameter and lightweight for easy installation
- Long delivery lengths available
Standards Compliance
Optical Characteristics
| Parameter | G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|
| Attenuation (+20ºC) | ||||
| @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | ||
| Bandwidth (Class A) | ||||
| @850nm | ≥500 MHz*km | ≥200 MHz*km | ||
| @1300nm | ≥1000 MHz*km | ≥600 MHz*km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
Technical Parameters
| Cable Type | Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|
| GYXS/GYXTW-2~12 | 2~12 | 10.0 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-2~12 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-14~24 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-26~36 | 26~36 | 14.0 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-38~48 | 38~48 | 15.0 | 216 | 1000/3000 | 1000/3000 | 10D/20D |
Storage/Operating Temperature: -40ºC to +70ºC
Additional Technical Data
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min. Bending radius (mm) | Tension (N) | Crash loading (N/100mm) |
|---|---|---|---|---|---|
| 2-12 | 8.9 | 90 | 10 times O.D. / 20 times O.D. | 1500 / 600 | 1000 / 300 |
| 14-24 | 10.2 | 110 |
