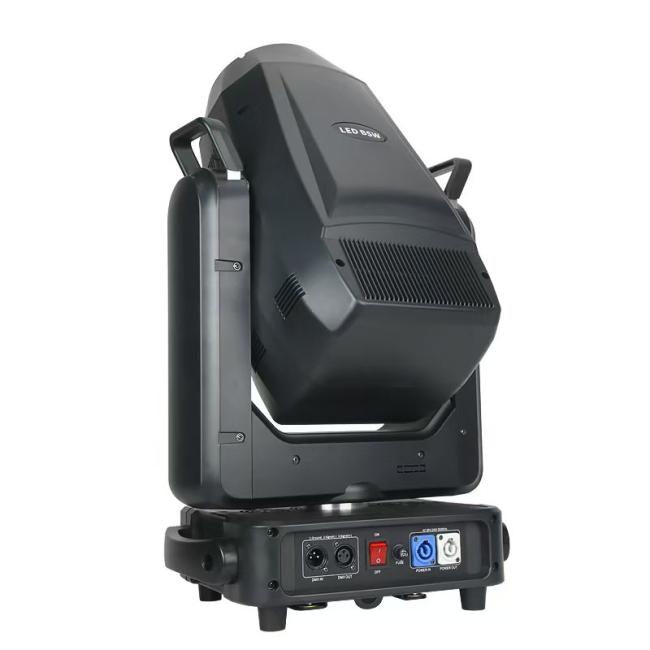

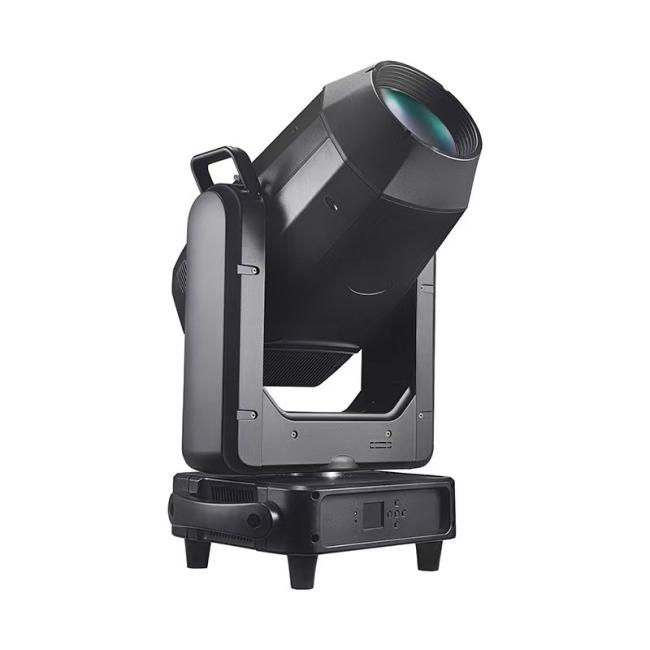

Bertin Lights:New Arrival 600W LED BSWF 4in1 CTO CMY Framing System Moving Head Light Auto Focus LED Stage Lights

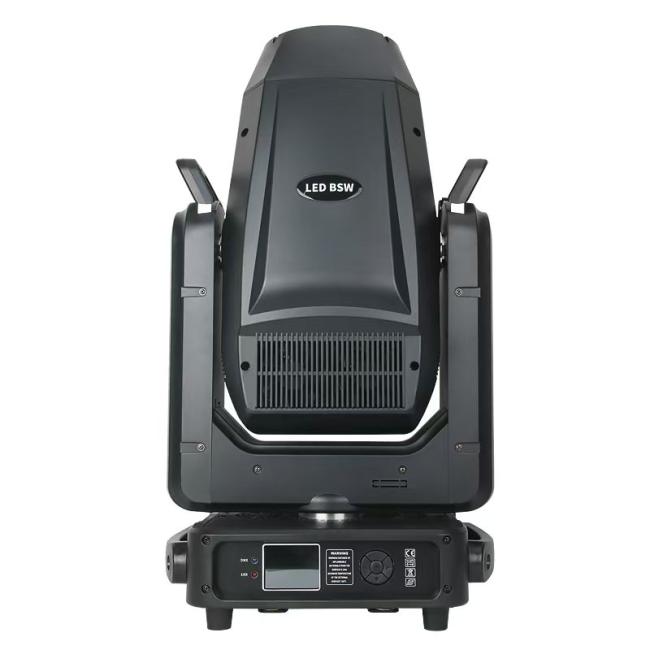

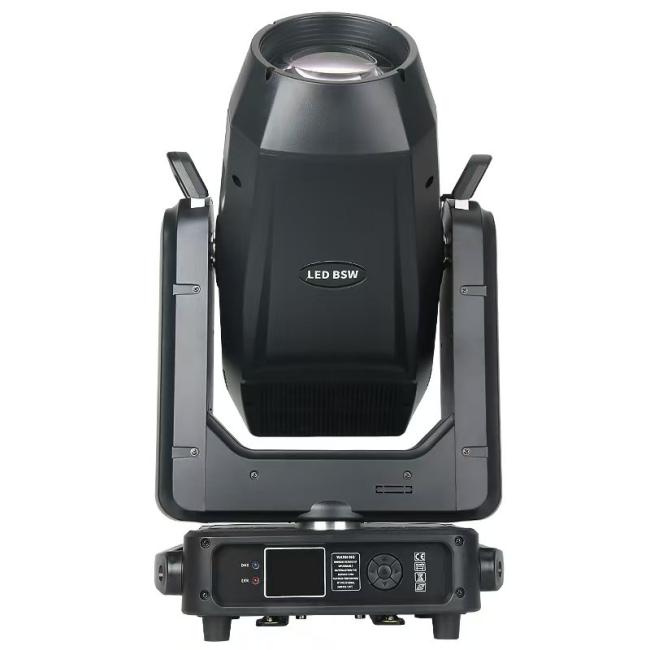

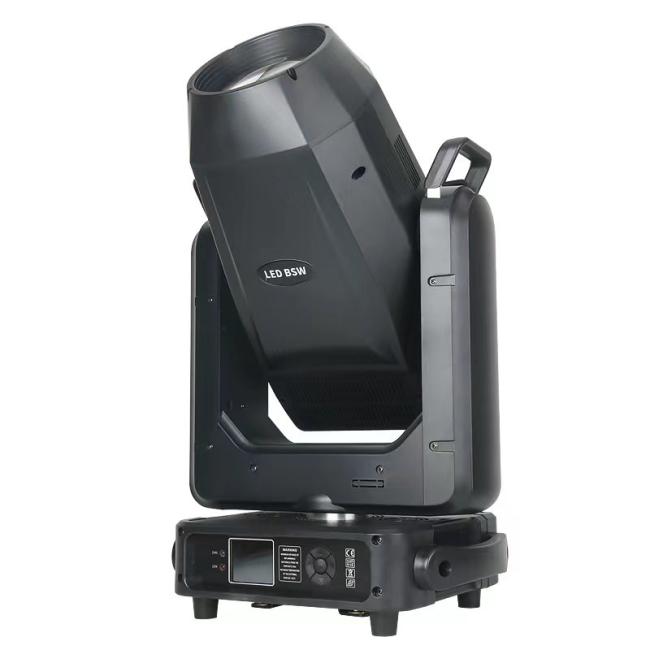

Bertin Lights DA-3700BSWF 4-in-1 LED600W Beam Spot Wash Framing(BSWF) CMYK+CTO+CUT Moving Head Light for Theater TV Station Event
1. Type:DA-3700BSWF 4-in-1 LED800W Moving head lights
2. LED600W full-featured cutting light
3. Input voltage/frequency: AC100V-240V, 50/60Hz.
4. Rated power: 1000W.
5. Light source: Use one high brightness and high-power 800W white LED.
6. Light source lifespan: 20000 hours.
7. Spot uniformity: 90%.
8. Beam angle: 3 ° -40 °, variable zoom lens, linear zoom in/out function.
9. Control channel: 35 international standard DMX512 channels
10. Operation mode: voice control, self-propelled, master-slave, DMX512。
11. Color palette: composed of 5 color palettes and white light, with CTO and display finger
12. Independent CMY system
13. With flowing effect
14. Fixed pattern plate: 6 fixed pattern pieces with pattern shaking function.

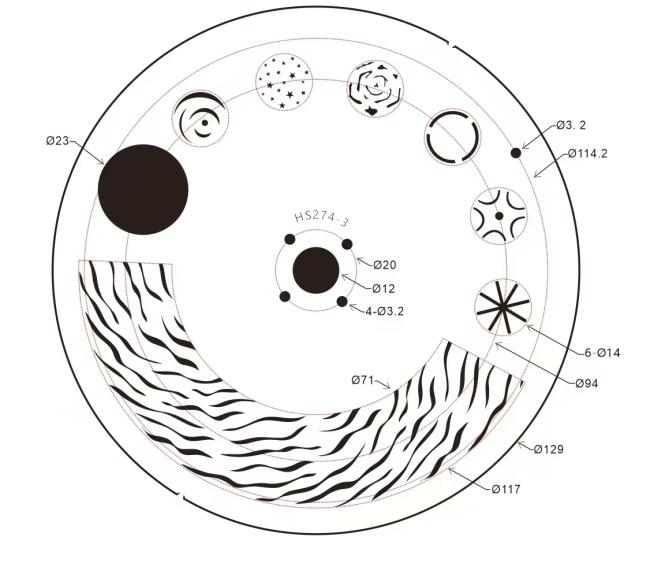

15. Rotating pattern disc: 7 plug-in rotating pattern plates with white light, featuring pattern shaking and arbitrary pattern
positioning functions.
16. Cutting disc: A controllable spot cutting system consisting of 8 cutting blades, which can rotate 150 °. Through precise
control of the cutting blades, any shape of spot can be created.
17. Prism: 1 prism, 1 prism, 8 prisms, prisms can rotate in both directions, can be stacked, and the speed can be adjusted.
18. Focusing: DMX linear high-definition focusing, with clarity adjustment from 2 meters to infinity.
19. Atomization: The built-in atomization mirror can generate a softening effect adjustment.
20. Strobe: 1-25 times/second ultra high speed strobe effect, can choose between random strobe and pulse strobe.
21. Dimming: 0-100% linear dimming.
22. Aperture: Smooth adjustment from 5% to 100%.
23. Horizontal/Vertical: Horizontal 540 °, vertical 270 °, 16 bit precision scanning, automatic return correction function.
24. Display: LCD screen display.
25. Software: Built in programs are available for selection.
26. Functions such as changing the DMX address code, resetting the machine, and switching to voice control mode can be completed
from the console.
27. Other functions: RDM function.
28. Intelligent energy-saving, the LED light source will automatically turn off without turning on the light (Dimmer fully off).
29. Product size: L385 × W280 × H700mm
30. Net weight of product: 25.5kg
31. Gross weight of product: 29.5kg
32. Heat dissipation: fan dissipates heat
33. Software upgrade: Using control box through DMX512 signal line upgrade software, simple and convenient
34. General Purpose Controller: DMX512 Controller,Automatic/Master-slave/sound
35. Control Method:3-pin XLR signal line interface/DMX signal input/output /RDM Control
36. Heat dissipation: Fan heat dissipation Blower four-wire speed measuring fan Better protection of bulb stability
37. Working Temperature(℃):-30 - 40℃
38. Lighting solutions service:Lighting and circuitry design, auto CAD layout,UGNX12.0/CREO 7.0/SOLIDWORKS 2021 /AD19/ Keil
uVision5 layout and design
39. Application:disco DJ concerts theaters stage bar wedding party church concerts
40. Warranty(Year):1-Year
41. Brand Name: Bertin
42. Install Style:Hanging Mount
43. Logo/graphic design:Laser Engraving
44. Plastic shell: high temperature flame retardant plastic shell, high strength alloy cold compression molded core material
45. Material:Aluminum+plastic
