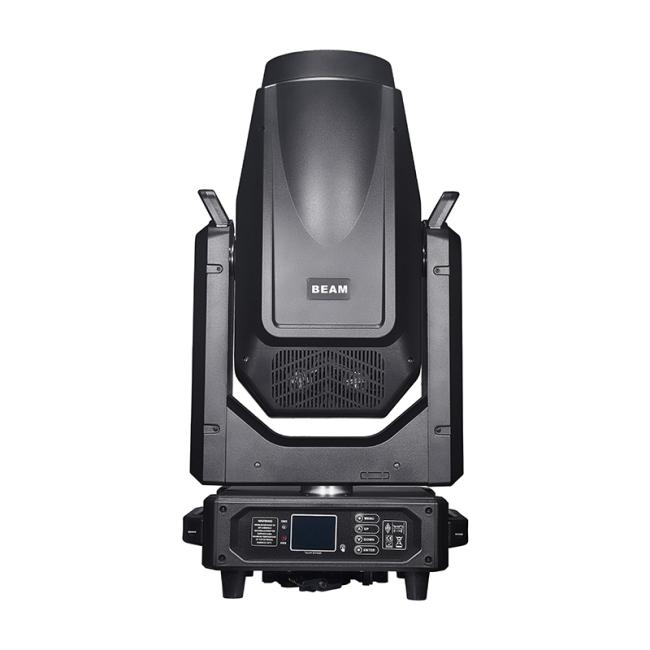

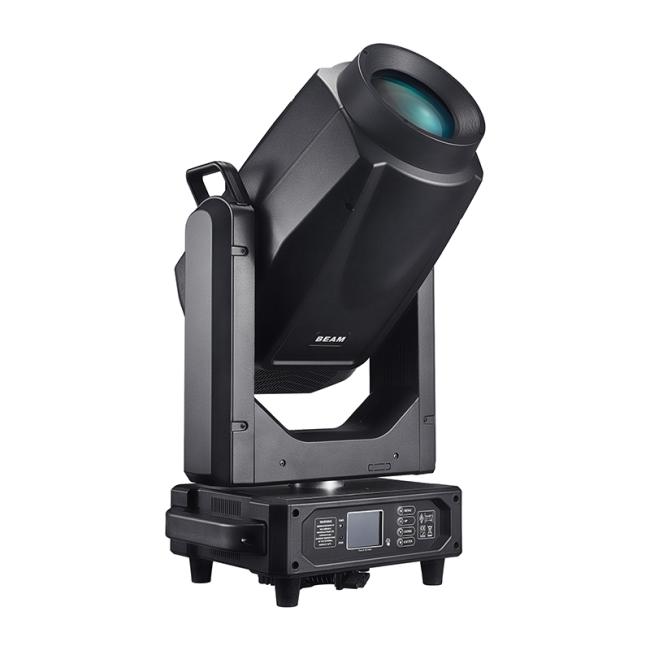

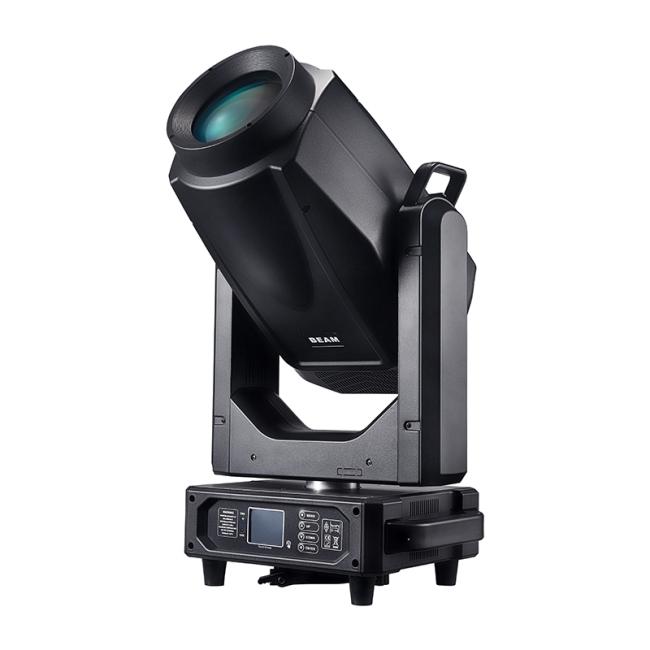

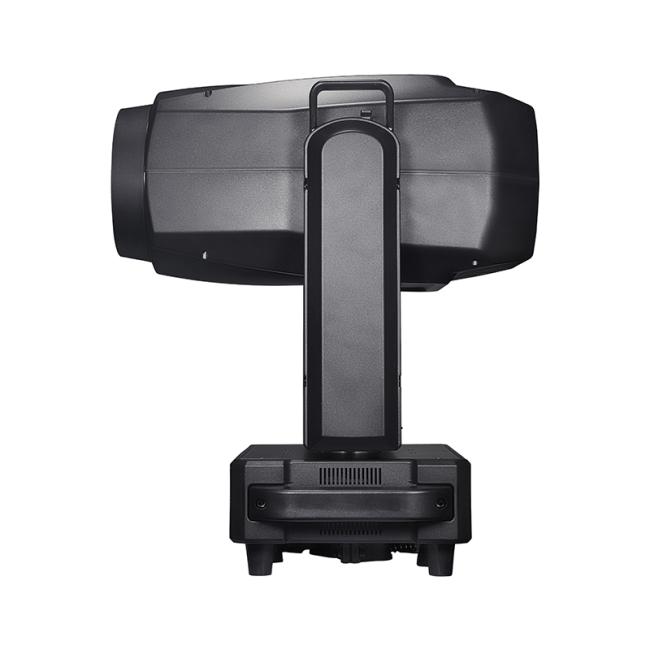

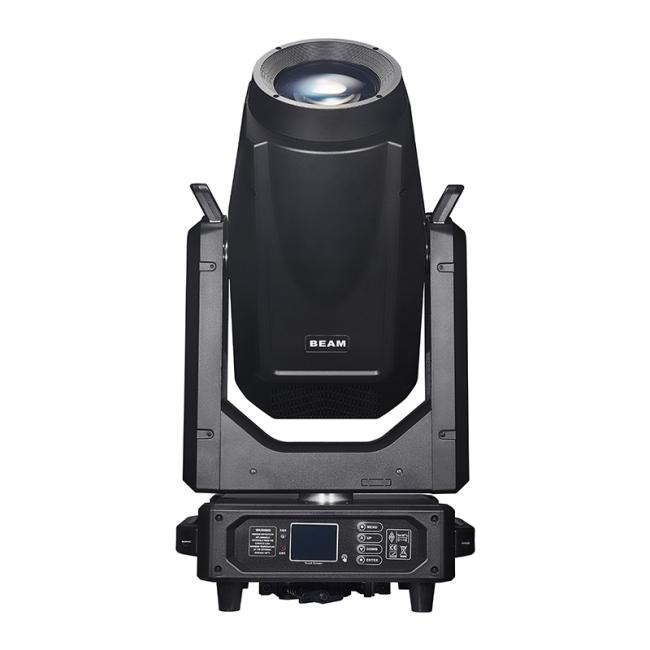

Bertin Lights:New Arrival 800W LED BSWF 4in1 CTO CMY Framing System Moving Head Light Auto Focus LED Stage Lights

Bertin Lights DA-3800/2 BSWF 4-in-1 LED800W Beam Spot Wash Framing(BSWF) CMYK+CTO+CUT Moving Head Light for Theater TV Station
Event
1. Type:DA-3800/2 BSWF 4-in-1 LED800W Moving head lights
2. Rated voltage: AC100-240V, 50/60Hz
3. Power: 1200W
4. Light source: 800W LED module
5. Light source lifespan: 20000 hours
6. Color temperature: 7500K, finger display: 70, (90 cut into finger display)
7. Focusing: Using high-precision glass lens, 5.5 °~60 ° linear high-speed zoom, uniform and consistent light spot in any range
8. A comprehensive graphic cutting system that can generate geometric shapes of different sizes and shapes, which can be rotated
at any angle from 0 ° to 120 °.
9. Rotating pattern: One rotating pattern disc has 7 glass pattern pieces, with variable speed shaking and bidirectional rotation.
The pattern rotation has 16 bit precision fine adjustment.
10. Fixed pattern: 1 metal pattern plate, 6 patterns+dynamic effects+white light, variable speed shaking and bidirectional
rotation, can simulate dynamic effects such as flames and flowing water
11. Color palette: One color palette has 5 color palettes+linear CTO, which can achieve bidirectional rainbow effect, half color
and gradient effect.
12. C M Y: Infinite color mixing
13. Aperture: 5-100% linear adjustment, with multiple macro function effects
14. Strobe: Fast electronic flicker at 1-25Hz per second, with pulse flicker and synchronous asynchronous flicker effects
15. Dimming: 0-100% linear dimming
16. Prism: One octaprism can rotate in both directions with variable speed
17. Atomization: 1 independent atomization mirror
18. Display: Color 2.8-inch touch screen display, can switch between Chinese and English freely
19. Horizontal: Horizontal angle of 540 ° (16BIT precision fine adjustment), with automatic error correction capability
20. Vertical: Vertical angle 270 ° (16BIT precision fine adjustment), can automatically correct errors
21. Control modes: DMX512, RDM, self-propelled, voice controlled, scene, master-slave mode, optional wireless transmission
22. Control channel: 34 channels
23. Protection level: IP20
24. Net weight: 35kg
25. Heat dissipation: fan dissipates heat
26. Software upgrade: Using control box through DMX512 signal line upgrade software, simple and convenient
27. General Purpose Controller: DMX512 Controller,Automatic/Master-slave/sound

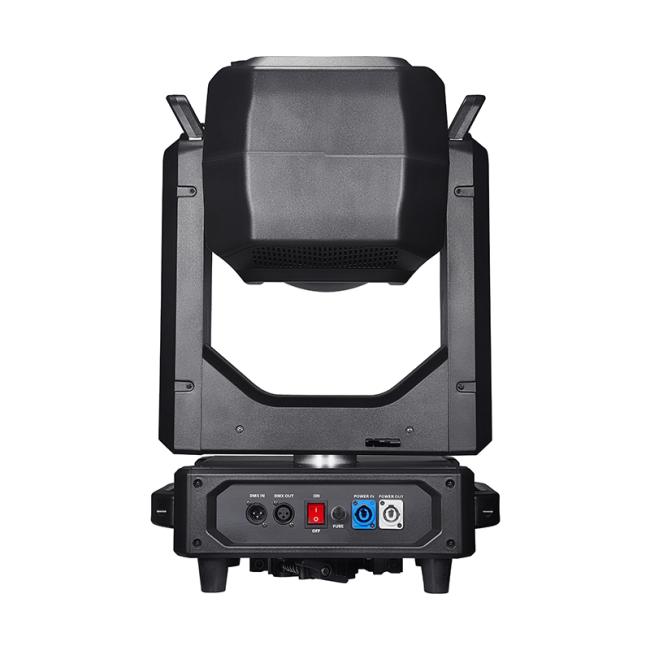

28. Control Method:3-pin XLR signal line interface/DMX signal input/output /RDM Control
29. Heat dissipation: Fan heat dissipation Blower four-wire speed measuring fan Better protection of bulb stability
30. Working Temperature(℃):-30 - 40℃
31. Lighting solutions service:Lighting and circuitry design, auto CAD layout,UGNX12.0/CREO 7.0/SOLIDWORKS 2021 /AD19/ Keil
uVision5 layout and design
32. Application:disco DJ concerts theaters stage bar wedding party church concerts
33. Warranty(Year):1-Year
34. Brand Name: Bertin
35. Install Style:Hanging Mount
36. Logo/graphic design:Laser Engraving
37. Plastic shell: high temperature flame retardant plastic shell, high strength alloy cold compression molded core material
38. Material:Aluminum+plastic
