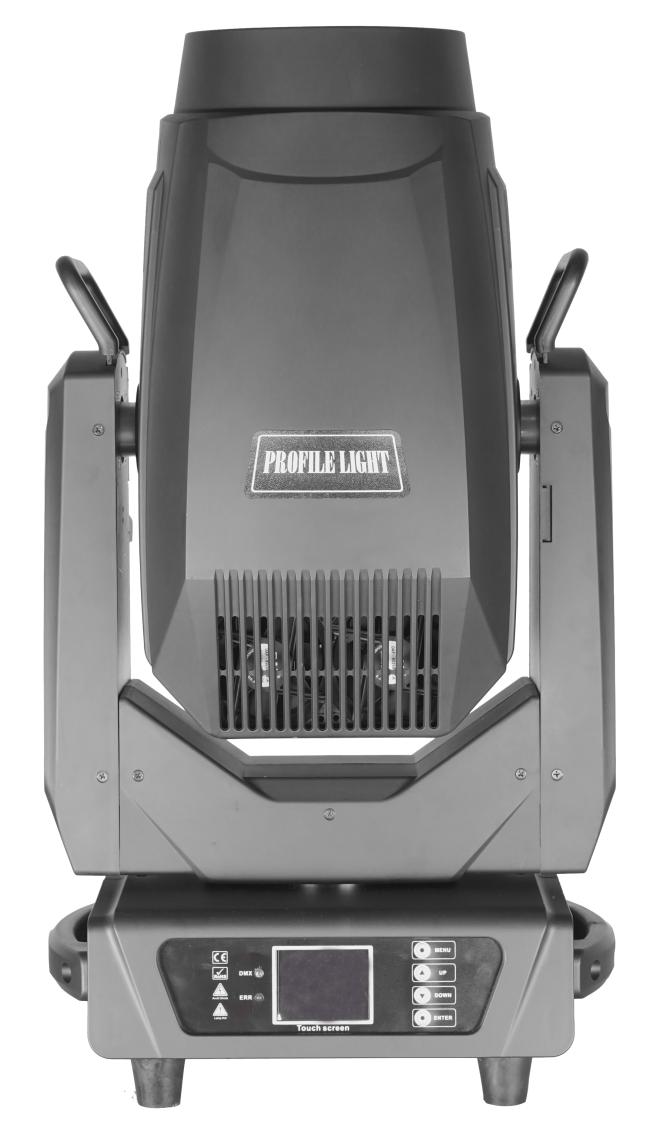

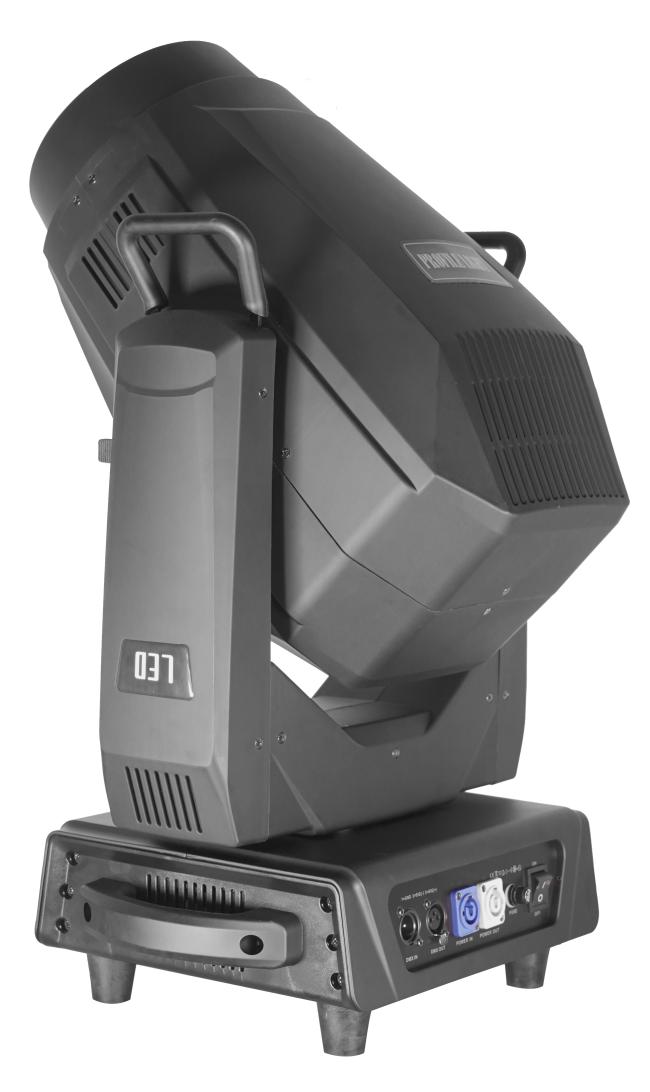

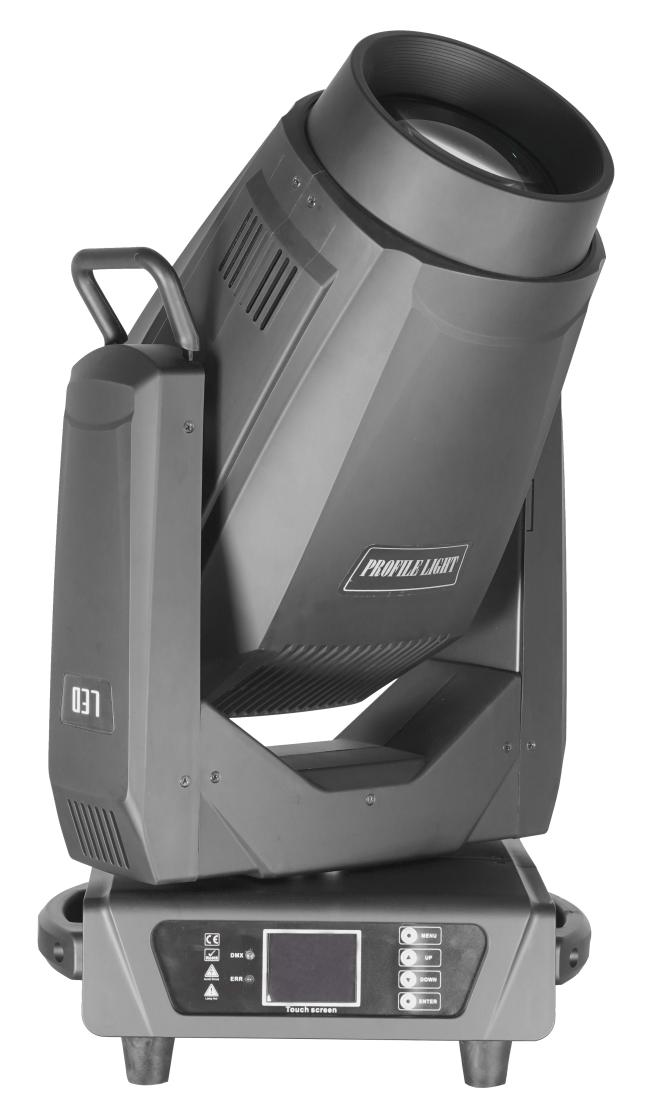

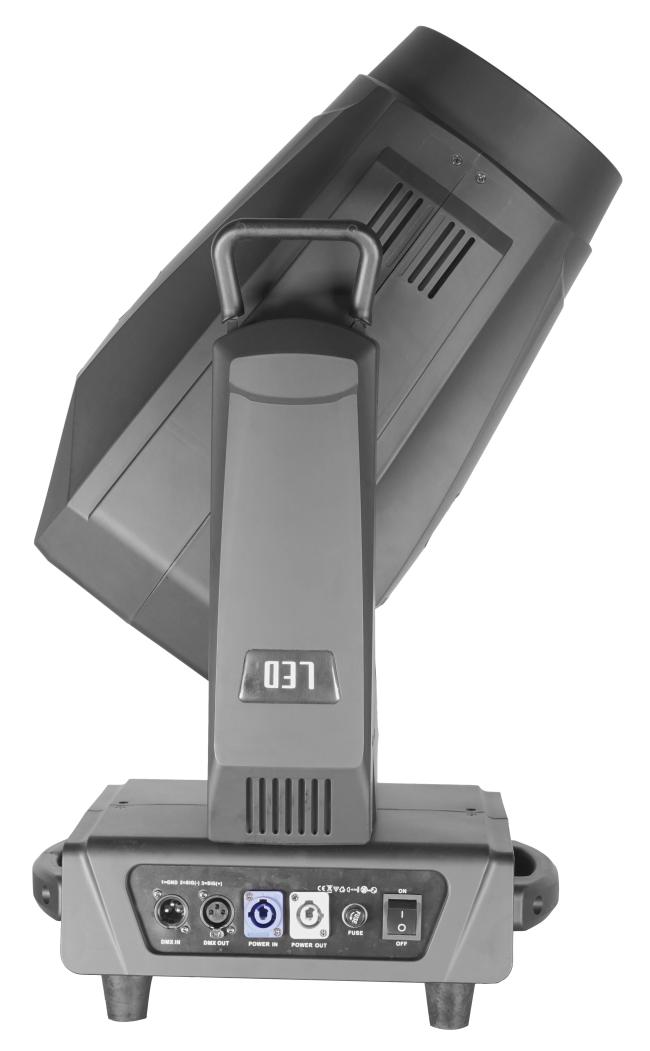

Bertin Lights:New Arrival 500W LED BSWF 4in1 CTO CMY Framing System Moving Head Light Auto Focus LED Stage Lights

1. Bertin lights:New Arrival 500W LED BSWF 4in1 CTO CMY Framing System Moving Head Light Auto Focus LED Stage Lights
2. Type:DA-3500BSWF Moving head lights
3. Voltage used: AC100V-240V, 50/60Hz.
4. Rated power: 700W.
5. Light source: Use one high brightness and high-power 600W white LED module.
6. Light source lifespan: 20000 hours.
7. Spot uniformity: 90%.
8. Beam angle: 3 ° -40 °, variable zoom lens, linear zoom in/out function.
9. Control channel: 35 international standard DMX512 channels
10. Operation mode: voice control, self-propelled, master-slave, DMX512，RDM。
11. CMY color mixing: Blue, magenta, yellow, uniform and smooth infinite color mixing.
12. CTO color temperature linear adjustment, 3000K-6500K.
13. Color palette 1:4 colors+white light, half color effect.
14. Color palette 2: 4 colors+white light, half color effect.
15. Color chips can be positioned arbitrarily, with a rainbow effect of bidirectional rotation.
16. 2 pattern plates:
17. Fixed pattern plate: 11 fixed pattern pieces+fire pattern effect+white light, with pattern shaking function.
18. Rotating pattern disc: 6 plug-in rotating pattern pieces+watermark effect+white light, with pattern shaking and arbitrary
pattern positioning function.
19. Framing System:Cutting disc: A controllable spot cutting system consisting of 4 cutting blades, which can rotate 150 °.
Through precise control of the cutting blades, any shape of spot can be created.
20. Prism: 2 prisms, 1 3 prism and 1 8 prism, prisms can rotate in both directions, can be stacked, and have adjustable speed.
21. Focusing: DMX linear high-definition focusing, with clarity adjustment from 2 meters to infinity.
22. Atomization: The built-in atomization mirror can generate a softening effect adjustment.
23. Strobe: 1-25 times/second ultra high speed strobe effect, can choose between random strobe and pulse strobe.
24. Dimming: 0-100% linear dimming.
25. Aperture: Smooth adjustment from 5% to 100%.
26. Horizontal/Vertical: Horizontal 540 °, vertical 270 °, 16 bit precision scanning, automatic return correction function.
27. Display: LCD screen display.
28. Software: Built in programs are available for selection.
29. Functions such as changing the DMX address code, resetting the machine, and switching to voice control mode can be completed
from the console.
30. Other functions: RDM function.
31. Intelligent energy-saving, the LED light source will automatically turn off without turning on the light (Dimmer fully off).
32. Dimensions: L385 × W280 × H700mm
33. Net weight of product: 25.5kg
34. Heat dissipation: fan dissipates heat
35. Software upgrade: Using control box through DMX512 signal line upgrade software, simple and convenient
36. General Purpose Controller: DMX512 Controller,Automatic/Master-slave/sound
37. Control Method:3-pin XLR signal line interface/DMX signal input/output /RDM Control
38. Heat dissipation: Fan heat dissipation Blower four-wire speed measuring fan Better protection of bulb stability
39. Working Temperature(℃):-30 - 40℃
40. IP Rating:IP65
41. Lighting solutions service:Lighting and circuitry design, auto CAD layout,UGNX12.0/CREO 7.0/SOLIDWORKS 2021 /AD19/ Keil
uVision5 layout and design
42. Application:disco DJ concerts theaters stage bar wedding party church concerts
43. Warranty(Year):1-Year
44. Brand Name: Bertin
45. Install Style:Hanging Mount
46. Logo/graphic design:Laser Engravin
47. Plastic shell: high temperature flame retardant plastic shell, high strength alloy cold compression molded core material
48. Material:Aluminum+plastic
