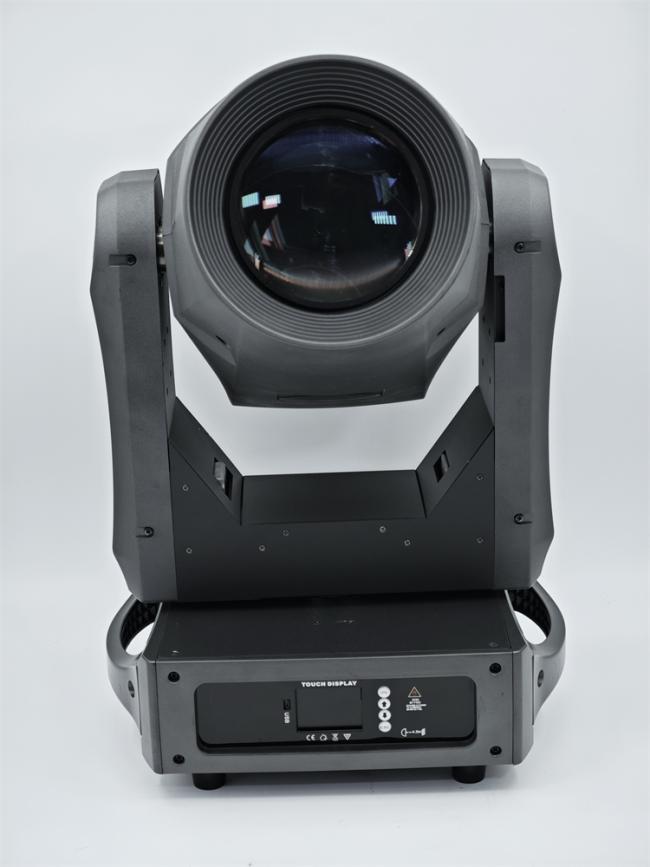

RP-950BSW 380W Moving Head Lights with 540° Pan Range and DMX512 Control for Stage Lighting Equipment
Price:
$516-536 / piece
MOQ:
50 pieces
Delivery Time:
Negotiable
Brand:
Bertin
Product Description
RP-950BSW 380W Moving Head Lights 20r Sharpy DMX Control Stage Lighting Equipment
Product Overview
Professional 380W moving head lights designed for stage performances, disco clubs, theaters, and events. Features DMX512 control, precise pan/tilt movement, and advanced optical systems for exceptional lighting performance.
Technical Specifications
| Model | RP-950BSW |
|---|---|
| Power Supply | 100V~240V AC, 50/60Hz |
| Power Consumption | 750W |
| Light Source | 380W-450W , MSD Silver 380EC with Electronic Ballast |
| Lifespan | 1500 hours |
| Color Temperature | 6300-7000K |
| Movement Range | Pan: 540° | Tilt: 270° |
| Motor Type | 3 phase motor |
| Dimming/Strobe | 0% ~ 100% smooth dimming Strobe: 0-20 times/second |
| Color System | 12 colors plus white, two-way rainbow effect, half color and linear adjustment |
| Gobo System | Fixed Gobo: 17 patterns + open Rotation Gobo: 2 metal + 5 glass patterns |
| Prism System | 6 facet linear prism + 16 facet prism, bidirectional rotation |
| Beam Angle | 2.2-54 degrees |
| Control | DMX512 Controller (Automatic/Master-slave/sound) 3-pin XLR signal interface |
| Working Temperature | -30°C to 40°C |
| IP Rating | IP20 |
| Material | Aluminum + Plastic |
| Net Weight | 19.5Kg |
| Gross Weight | 22Kg |
| Carton Size | 580(W) * 520(D) * 650(H) mm |
Key Features
- Adjustable pan/tilt movement speed with automatic correction
- Magnetic positioning for easy initial position correction
- Pan/Tilt locking function for transport protection
- Electronic linear HD focus with high-precision glass lens
- Efficient optical system with strong light efficiency output
- Fan heat dissipation with four-wire speed measuring fan
- Hanging mount installation
- Laser engraving for logo/graphic design
Product Gallery
Applications
Ideal for disco, DJ concerts, theaters, stages, bars, wedding parties, church concerts, and various entertainment venues.
Additional Services
Lighting and circuitry design, auto CAD layout, UGNX12.0/CREO 7.0/SOLIDWORKS 2021/AD19/Keil uVision5 layout and design services available.
Brand & Warranty
Brand: Bertin
Warranty: 1-Year
