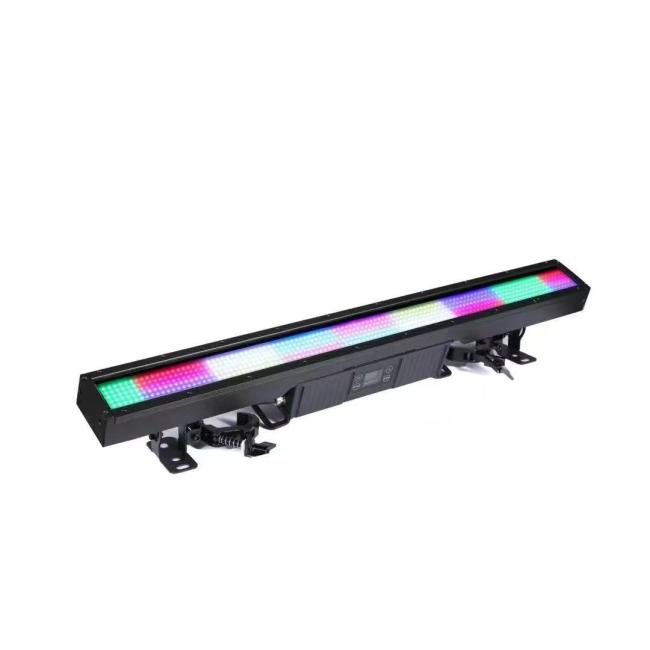

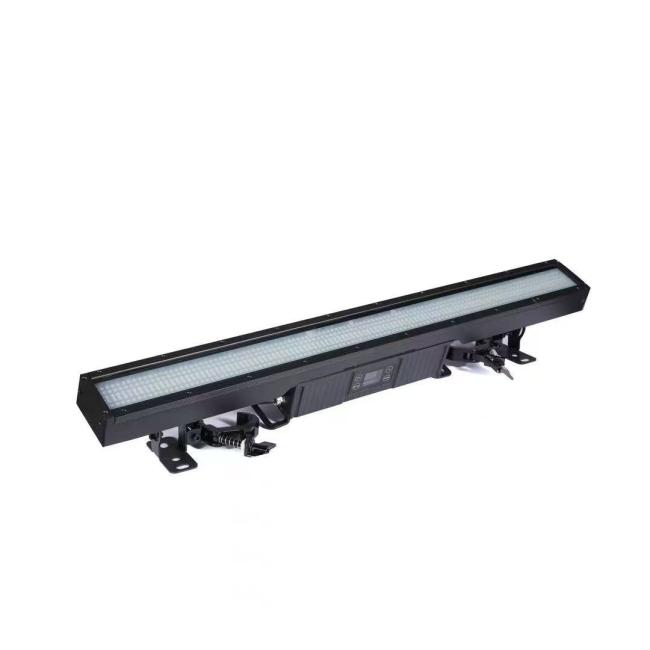

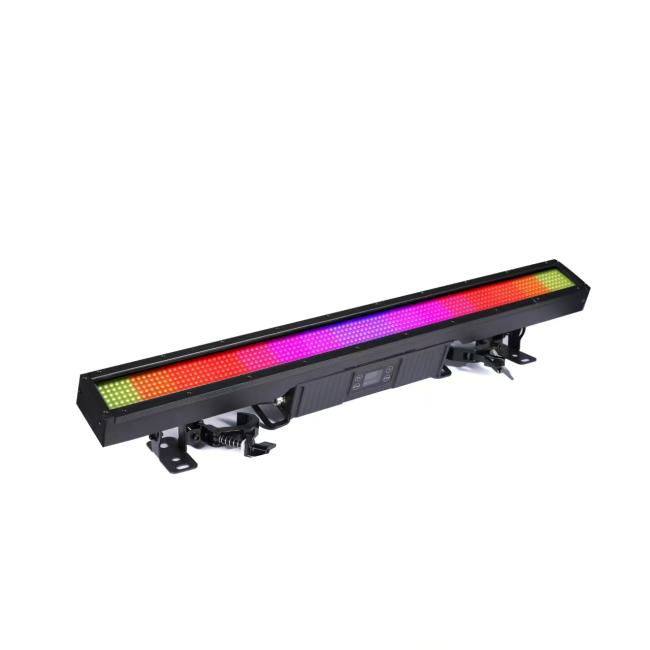

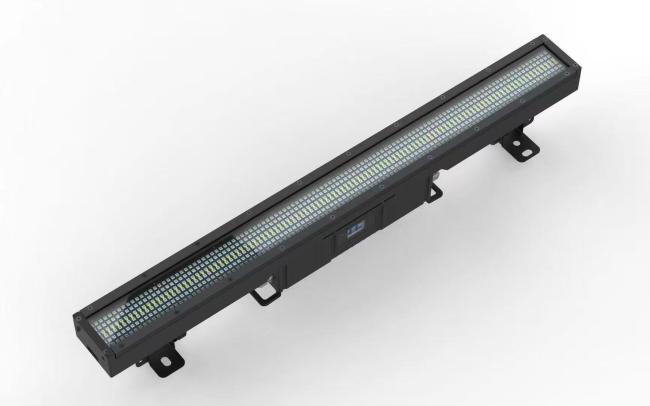

Bertin Lights ST-IP3216 RGB LED Waterproof Long Strip Strobe Light for Theater TV Station Event

1. Bertin Lights:ST-IP3216 RGB LED Waterproof Long Strip Strobe Light for Theater TV Station Event
2. Type:ST-IP3216 RGB LED Waterproof Long Strip Strobe Light
3. Voltage: AC100~240V 50/60HZ
4. Power: 600W
5. Color light: 32 segments 672 x 0.5W RGB LED
6. White light: 16 segment 112 x 3W LED
7. Control panel: Touch screen display, 4 touch buttons
8. Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function can add Art Net, sACN/Maijue software
control
9. Channels: CH17, CH07, CH15, CH21, CH39, CH112, CH17, CH33, CH65, CH68, CH117, CH70
10. Dimming: 16 bit 0~100% linear dimming
11. Features: Running horse+explosion flash+electronic atomization
12. Splicing method: Multiple pins can be spliced together
13. Power connection method: Hand held three core pure copper 2.5-square power cord, with a standard length of 1.5 meters on one
side and 1.3 meters on the outside
14. Signal connection method: Hand in hand with screen closed waterproof signal wire, with a standard wire length of 1.5 meters on
one side and 1.3 meters on the outside
15. Working environment of lighting fixtures
16. Maximum ambient temperature: 50 ° C
17. Minimum operating temperature: -30 ° C
18. Maximum surface temperature: 47 ℃
19. Working temperature: -30 ° C~50 ° C
20. Strobe frequency: 1-30HZ
21. Appearance: Die cast aluminum, black
22. Waterproof rating: IP68
23. Lamp size: Length: 985mm Width: 100mm Height: 150mm
24. Net weight of lamp: 8.65KG
25. Aviation box specification: one pack of eight
26. Aircraft box dimensions: length 99, width 10.5, height 23
27.
28. Bertin Lights CM-850 Effect Lights Light for Theater TV Station Event
29. Type:ST-IP3216 RGB LED Waterproof Long Strip Strobe Light
30. Voltage: AC100~240V 50/60HZ
31. Power: 600W
32. Color light: 32 segments 672 x 0.5W RGB LED
33. White light: 16 segment 112 x 3W LED
34. Control panel: Touch screen display, 4 touch buttons
35. Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function can add Art Net, sACN/Maijue software
control
36. Channels: CH17, CH07, CH15, CH21, CH39, CH112, CH17, CH33, CH65, CH68, CH117, CH70
37. Dimming: 16 bit 0~100% linear dimming
38. Features: Running horse+explosion flash+electronic atomization
39. Splicing method: Multiple pins can be spliced together
40. Power connection method: Hand held three core pure copper 2.5-square power cord, with a standard length of 1.5 meters on one
side and 1.3 meters on the outside
41. Signal connection method: Hand in hand with screen closed waterproof signal wire, with a standard wire length of 1.5 meters on
one side and 1.3 meters on the outside
42. Working environment of lighting fixtures
43. Maximum ambient temperature: 50 ° C
44. Minimum operating temperature: -30 ° C
45. Maximum surface temperature: 47 ℃
46. Working temperature: -30 ° C~50 ° C
47. Strobe frequency: 1-30HZ
48. Appearance: Die cast aluminum, black
49. Waterproof rating: IP68
50. Lamp size: Length: 985mm Width: 100mm Height: 150mm
51. Net weight of lamp: 8.65KG
52. Aviation box specification: one pack of eight
53. Aircraft box dimensions: length 99, width 10.5, height 23
54. Heat dissipation: fan dissipates heatSoftware upgrade: Using control box through DMX512 signal line upgrade software, simple
and convenient
55. General Purpose Controller: DMX512 Controller,Automatic/Master-slave/sound
56. Control Method:3-pin XLR signal line interface/DMX signal input/output /RDM Control
57. Heat dissipation: Fan heat dissipation Blower four-wire speed measuring fan Better protection of bulb stability
58. Working Temperature(℃):-30 - 40℃
59. IP Rating:IP65
60. Lighting solutions service:Lighting and circuitry design, auto CAD layout,UGNX12.0/CREO 7.0/SOLIDWORKS 2021 /AD19/ Keil
uVision5 layout and design
61. Application:disco DJ concerts theaters stage bar wedding party church concerts
62. Warranty(Year):1-Year
63. Brand Name: Bertin
64. Install Style:Hanging Mount
65. Logo/graphic design:Laser Engraving
66. Carton size: 460(W)*460(D)*580(H)mm
67. Plastic shell: high temperature flame retardant plastic shell, high strength alloy cold compression molded core material
68. Material:Aluminum
