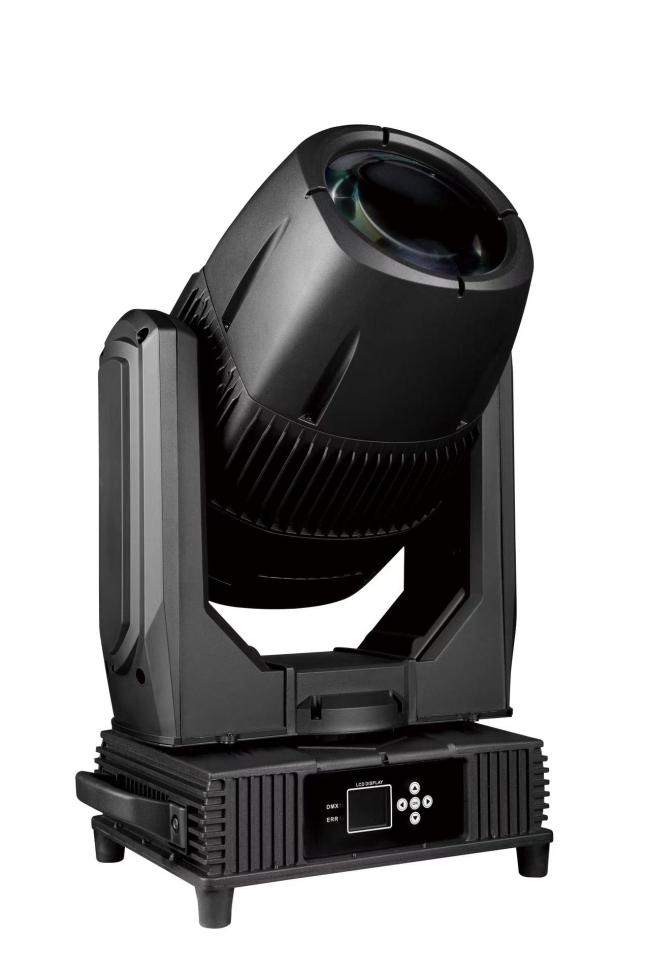

Bertin 420W IP66 Waterproof Beam Moving Head Stage Light with RGBW Emission for Outdoor Events
Bertin Lights 420W IP66 Waterproof Moving Head Waterproof Beam Moving Head Light for Theater TV Station Events. This professional-grade lighting solution delivers exceptional performance with robust waterproof construction.
- Type: RFS-420 IP Beam Moving Head Lights
- Wide Voltage: AC90V-235V 50-60Hz
- Power Supply: 800W Wide Voltage Driving
- Light Source: 420W High-Output System
- Color Temperature: 7900±500K
- Color System: 14+1 White Light Color Palette
- Pattern System: 17 Fixed Patterns + 1 White Light
- Focusing: Electronic Focusing System
- Atomization: Equipped with atomization function for soft lighting effects
- Strobe: Dual motor independent strobe, 0.5-20 times/second adjustable speed
- Motor: XY axis uses three-phase motor for high-speed stability and accurate positioning
- Dimming: 0%-100% linear dimming, smooth without flicker
- Beam Angle: 0-2°
- Channels: 16 or 20 channel options
- Lens Diameter: 165mm
- Waterproof Rating: IP66 Certified
- Control Mode: DMX 512, self-propelled, master-slave self-propelled
- RDM Function: Remote setting of address code for controller control
- Prism System: 8 prisms and (8+16) prisms (configurable per customer requirements)
- Display: LCD screen, rotatable 180°, adaptable to different installation positions
- Horizontal/Vertical: High-precision three-phase motors for accurate positioning
- Horizontal: 540° rotation, 8/16 bit resolution with fine tuning
- Vertical: 270° rotation, 8/16 bit resolution with fine tuning
- Automatic correction of positioning
- Heat Dissipation: Intelligent fan drainage heat dissipation system
- Air Convection: Software-analyzed heat flow calculation
- Performance: Extends light source decay time, ensures bulb service life
- Noise: Low-noise heat dissipation system with excellent fan drive performance
- Working Temperature: -30°C to 40°C
| Material | Cast Aluminum + Outdoor Engineering Plastic Shell |
| Installation | Upright/Upside Down Hanging Mount |
| Dimensions | 43 × 26 × 63cm |
| Net Weight | 25KG |
| Gross Weight | 29KG |
- Software Upgrade: Control box via DMX512 signal line
- Controller: DMX512 Controller, Automatic/Master-slave/Sound
- Control Method: 3-pin XLR signal line interface, DMX signal input/output
- Plastic Shell: High temperature flame retardant, high strength alloy cold compression molded core
- Branding: Laser Engraving for logo/graphic design
Disco, DJ concerts, theaters, stage, bar, wedding parties, church concerts, and professional events.
- Warranty: 1-Year Comprehensive
- Lighting Solutions: Lighting and circuitry design services
- Design Software: Auto CAD, UGNX12.0, CREO 7.0, SOLIDWORKS 2021, AD19, Keil uVision5
Craftsmanship Masterpiece: High-end appearance, powerful energy output, and thick light column waterproof beam lamp achieving high standard performance in optics, structure, and appearance. Utilizes advanced technology high brightness light source, optical technology, and rigorous industrial design to ensure perfect presentation of lighting design.
