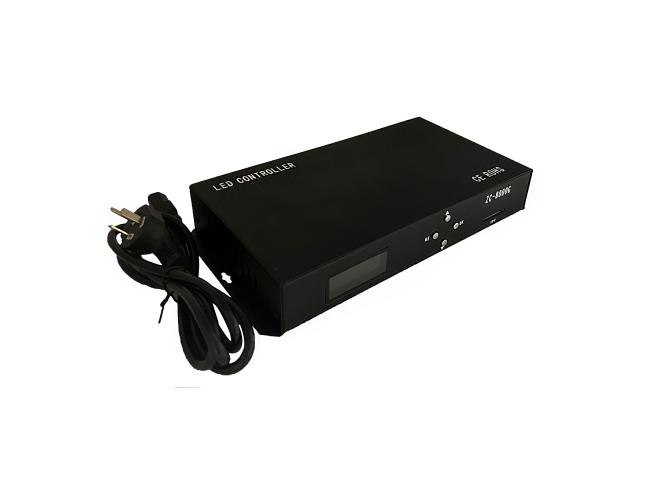

Bertin Lights BT-10000 GPS+DMX+SPI+Sub Controller Controller

Bertin Lights BT-10000 GPS+北斗+DMX+SPI+Sub controller Controller
Type:BT-10000 GPS+北斗+DMX+SPI Controller
Rated Power: 15W
Online and offline integration, with free switching between online and offline modes; Automatically switch between three working
modes: Art Net mode, computer online mode, and SD card offline mode;

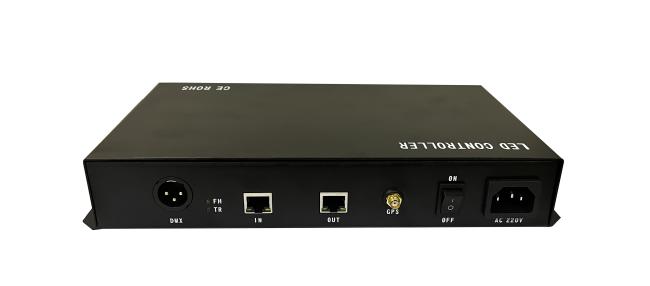

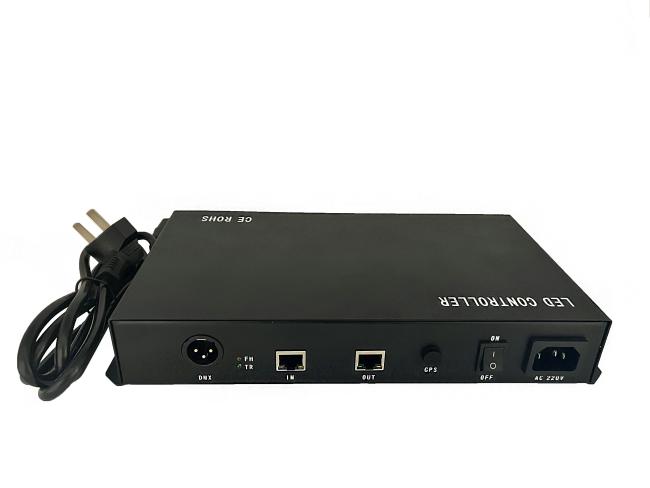

The Art Net mode forwards data from the computer host to the sub controller through the LINK OUT network port;
In online mode, data from the computer host is forwarded to the sub controller through the LINK OUT network port;
SD card mode sends program files from the SD card to the controller through the LINK OUT network port; Multiple controllers can be
synchronized wirelessly, through a network, or via RS485;

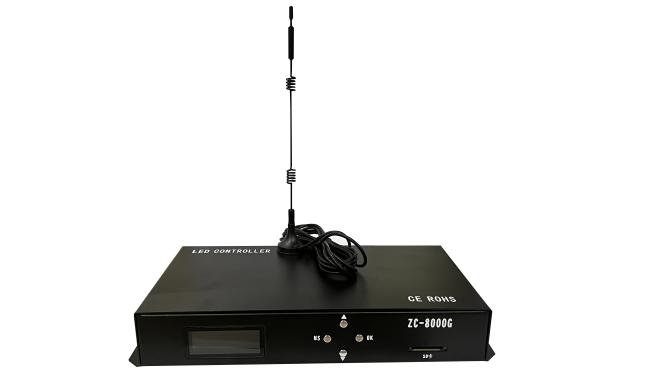

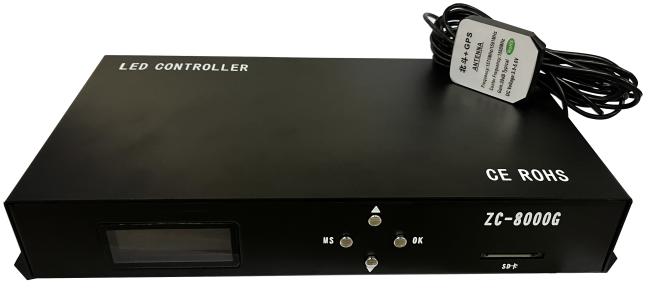

LCD display, supporting free switching between Chinese and English;
Support one click addressing for DMX512 lighting fixtures;
Support DMX512 and SPI communication protocols;
A system supports multiple communication protocols;
A system supports multiple types of lighting fixtures such as monochrome, dual color, and full-color;
Complete interface anti reverse protection, capable of withstanding up to DC36V reverse protection.
Working Temperature(℃):-30 - 40℃
IP Rating:IP33
Lighting solutions service:Lighting and circuitry design, auto CAD layout,UGNX12.0/CREO 7.0/SOLIDWORKS 2021 /AD19/ Keil uVision5
layout and design
Application:disco DJ concerts theaters stage bar wedding party church concerts
Warranty(Year):1-Year
Brand Name: Bertin
Install Style:Hanging Mount
Logo/graphic design:Laser Engraving
Net weight: 1100g
Gross weight: 1200g
Carton size: 288✕154✕45
Plastic shell: high temperature flame retardant plastic shell, high strength alloy cold compression molded core material
Material:Aluminum
