8-channel DMX512 Network Signal Extender with 300 meters anti-interference extension and DMX512 protocol support

4-way Ethernet cable extender, 4-channel DMX512 network signal extender with anti-interference extension capability of 300 meters. This LED light controller features 1000w capacity, 4 ports, plug-and-play operation, 24v offline control, and supports Artnet and DMX protocols.

The DMX converter follows standard ArtNet, sACN, DMX512, and RDM protocols, enabling bidirectional conversion of DMX512 data. Capable of expanding DMX channels up to 4 DMX512 interfaces for a total of 2048 channels. Features include 1 USB input port, 1 RJ45 network interface, and 4 standard DMX512 interfaces with 100% electrical isolation between all input/output ports. Ideal for TV recording and broadcasting, stage performances, and entertainment venues.

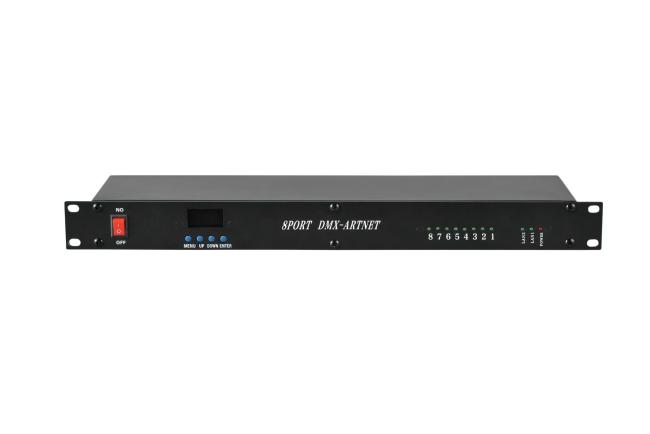

• DMX NODE (DMX Network Node)

  Equipped with a 128×64 OLED display, it allows viewing of various signal statuses

  DMX ports: More than 8

  Ethernet (Ethernet) port: more than one

  Supported Protocols: ArtNet, sACN

  Each port can be controlled independently.

  Waterproof rating: IP20

  Built-in Universal Power Supply (Wide Voltage Power Supply)

  support

  DMX:ANSI E1.11

  RDM:ANSI E1.20

  Ethernet support:

  10BASE-T / 100BASE-TX

  Auto Negotiating (Automatic Negotiation)

  Auto MDI-X (Automatic MDI/MDI-X detection)

  DMX Output Mode:

  The frame rate can reach 30Hz to 44Hz or higher

  Screen protection function:

  The screen will automatically turn off after 40 seconds of inactivity

  Lock function:

  Supports password lock feature





  All 8 DMX ports can automatically recognize input or output, enabling bidirectional data conversion

  Supports ArtNet, SACN, DMX512, and RDM protocols

  * Supports automatic recognition and conversion of ArtNet and SACN protocols without manual configuration

  * Supports Web browser configuration parameters, enter the IP address to access the parameter panel

  * Supports DMX output ports for consoles such as Tiger Touch and MA

  * Ethernet I/O based on high-speed switches, with zero connection latency

  * The DMX output can be set to single, HTP value priority, or LTP post-motion priority, with one of these modes

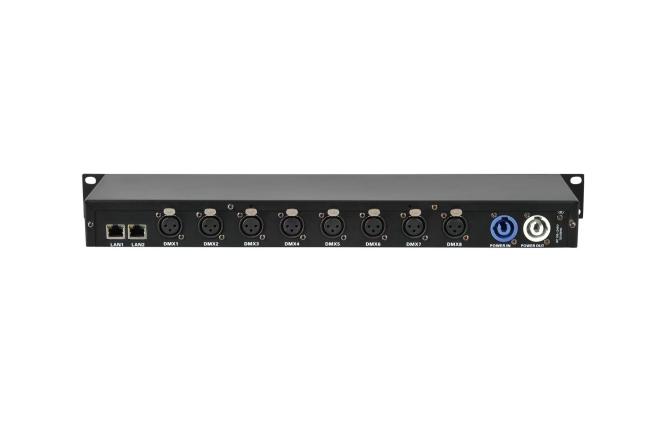

  All DMX ports are equipped with 3-pin XLR Cannon jacks

  * 100% electrical isolation between all input/output ports

  * 0.96-inch OLED display showing various parameters with an auto screen saver function

  * Each input and output port is equipped with an LED indicator

  * Supports multi-unit series expansion with each converter capable of setting 128 network addresses. Each network address includes 16 subnet addresses, and each subnet address contains 16 domains. When connected in series, up to 32,768 domains and 16,777,216 channels can be controlled

  * Wide voltage input: AC 100~250V 50/60Hz

  * Dimensions: 1U, 485mm x 100mm x 45mm

  * Weight: 1.7Kg

  * Packaging dimensions: 50cm x 18cm x 13cm

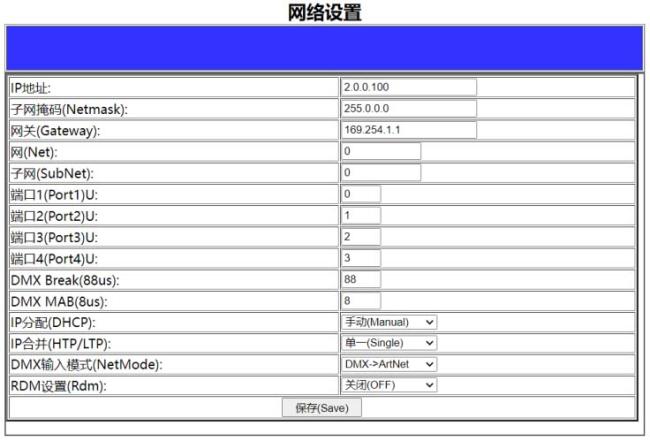

Connect the computer via USB or Ethernet port, open the built-in web browser, enter the default IP address in the address bar, and press Enter to access the internal network settings dialog.
