1000W IP65 Waterproof RGBW LED Projection Light with DMX512 Control for Outdoor Advertising and Traffic Safety
Price:
RMB 9000~10000
MOQ:
2
Delivery Time:
Negotiable
Brand:
Bertin
Product Description
1000W IP65 Waterproof RGBW LED Projection Light for Outdoor Advertising and Traffic Safety

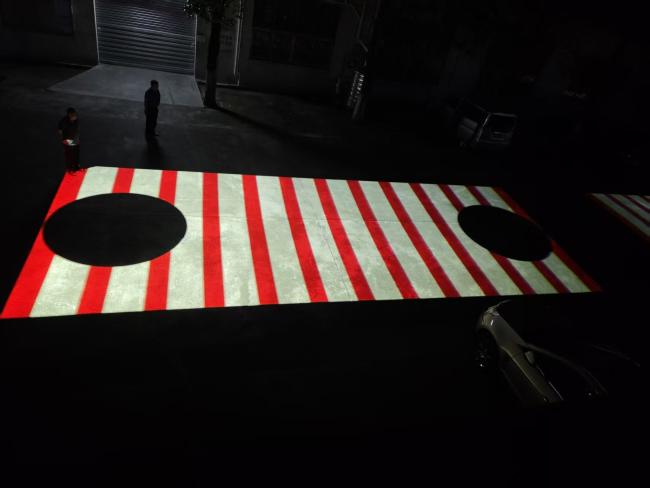

700W IP65 RGBW LED Advertising Lights with Traffic Safety Projection Zebra Crossing Pattern for Outdoor Use
Product Overview
Bertinlights 700W LED Outdoor Gobo Projector is a high-performance advertising projector featuring rotating LED technology with IP65 waterproof rating. Ideal for theater, TV stations, events, KTV, bars, internet cafes, restaurants, coffee shops, and exhibition halls.
Technical Specifications
| Model Type | TY-1000F Projection Lights |
| Power Supply | 100V~240VAC, 50/60Hz |
| Rated Power | 1000W |
| Light Source | 1000W Module light source |
| Color Temperature | 6900-7000K |
| LED Driver | Split constant current power supply |
| Lamp Bead Lifespan | >20,000 hours (Domestic Sanan core chip) |
| Color Palette | 5 colors (red, green, blue, yellow, green) + 1 white light (optional) |
| Projection Effects | 1 dynamic pattern effect disc with bi-directional variable speed rotation |
| Dimming | Linear dimming gradient effect from dark to light |
| Light Output Angle | 30 degrees (8°, 18°, 30°, 40° optional) |
| Imaging Lens | 6-piece ultra high definition optical lens |
| GOBO Lens Size | 26+18MM lamp piece with seven rotating pattern pieces |
| Pattern Playback | 4 synchronized carousel images, 0-255S adjustable timing |
| Control Mode | Standard DMX512, RDM, self-propelled, master-slave |
| Number of Channels | Standard 6CH |
| Adjustment Angle | 180° up and down adjustment |
| Projection Distance | 1-16 meters (in darker environments) |
| Protection Level | IP65 outdoor rainproof |
| Transmission Mode | Stepper motor transmission with gear belt drive |
| Installation Method | Snap spring installation, surface mounted ceiling, seated |
| Lightning Protection | ESD protection: IEC61000-4 (Level 4) |
| Product Material | High-strength aluminum alloy, cold forged aluminum heat dissipation shell |
| Heat Dissipation | Fan heat dissipation with blower four-wire speed measuring fan |
| Working Temperature | -60°C to 45°C |
| CRI Color Rendering Index | 70-75Ra |
| Net Weight | 16.5Kg |
| Gross Weight | 20Kg |
| Carton Size | 460(W) * 460(D) * 580(H) mm |
Key Features
- IP65 waterproof rating for reliable outdoor operation
- High-intensity 1000W RGBW LED projection with traffic safety patterns
- Advanced DMX512 control with RDM compatibility
- Multiple installation options including hanging mount
- Comprehensive safety protections: lightning, overcurrent, overvoltage, and leakage protection
- Professional lighting solutions service including CAD layout and design
- Custom logo/graphic design via laser engraving
- Wide operating temperature range from -60°C to 45°C
Applications
Perfect for disco, DJ concerts, theaters, stages, bars, wedding parties, church concerts, and various commercial entertainment venues requiring high-quality projection effects.
Additional Resources
View Additional Product Image
Warranty: 1-Year | Brand: Bertin | Install Style: Hanging Mount
