300W Beam Moving Head Light with DMX512 Control and Prism Effect for Stage and Disco Lighting
Price:
$348/ piece
MOQ:
50 pieces
Delivery Time:
10~20 work days
Brand:
Bertin
Product Description
Beam Spot 230W 250W 260W 280W 295W 300W Beam Moving Head Light DMX512 Moving Head Light with Prism Effect for Stage and Disco Lighting
Product Overview

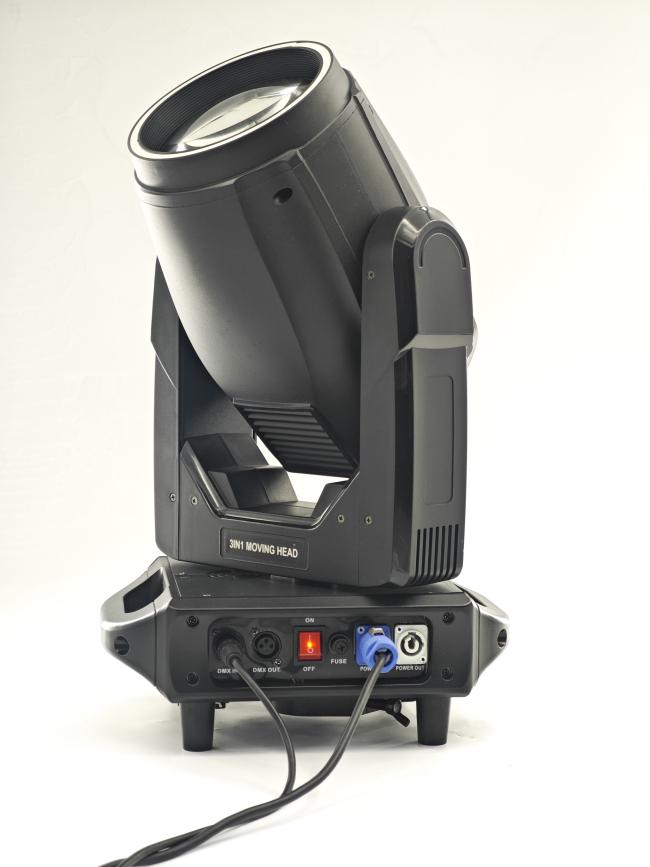

Professional RBS-5 Beam Spot Moving Head Beam Light designed for disco clubs, DJ stages, concerts, theaters, and event rentals. This high-performance lighting solution delivers exceptional beam quality and versatile effects.
Technical Specifications
Electrical Specifications
- Input Voltage: 100V-240V, 50/60Hz
- Rated Power: 500W
- Bulb: Phoenix brand (domestic options available)
Optical Performance
- Color Temperature: 6900K
- Illuminance: 120,000 LUX at 15 meters
- Efficient optical system with high-quality lenses
Movement & Control
- Pan: 540° | Tilt: 270°
- XY three-phase ultra-high-speed motor
- Magnetic coding with Hall bit function
- Automatic pan/tilt correction
| Feature | Specifications |
|---|---|
| Dimming/Strobe | 0% - 100% smooth dimming with multiple speed strobe effects |
| Color Wheel | 1 color wheel with 14 colors, magnetic sensor positioning, and two-way rainbow effect |
| Gobo Rotation Wheel | 1 gobo wheel with 5 gobos plus white circle, magnetic sensor positioning |
| Zoom System | Electronic linear Zooming |
| Gobo Wheel | 1 gobo wheel with 13 gobos plus white circle, magnetic sensor positioning |
| Prism System | Prism 1: 8 prism, rotated and superimposed in both directions | Prism 2: 48 prism, rotated and stacked in both directions |
| Focus System | Electronic linear focusing |
| Control Method | DMX512 controller, RDM control with 3-pin XLR signal interface |
| Software Upgrade | Via DMX512 data cable using control box |
| Heat Dissipation | Fan cooling with four-wire speed measuring fan for bulb stability protection |
| Working Temperature | -10°C to 40°C |
| IP Rating | IP20 |
| Installation | Hanging mount |
| Material | Aluminum and plastic construction |
| Net Weight | 15.6 kg |
| Gross Weight | 18.8 kg |
| Carton Size | 375mm (W) * 405mm (D) * 530mm (H) |
Additional Features
Power Management
Power-off display function for DMX address setting and menu functions
Battery System
Automatic charging when powering on (battery replacement not required)
Customization
Laser engraving available for logo/graphic design
Professional Support
Professional lighting solutions service including CAD layout and design
Warranty
1-Year warranty
Applications
Ideal for disco clubs, DJ performances, concerts, theaters, stage productions, bars, wedding parties, churches, and various event applications.
Brand & Support
Brand Name: Bertin - Professional lighting solutions with comprehensive support including lighting design, circuitry design, and technical assistance.
