100kg/Batch 130kg/Batch Wet Mixing Granulator 270rpm Super Mixer Granulator
Price:
small equipment：5000-10000$ | medium & large equipment：15000-30000$
MOQ:
1 set
Delivery Time:
Shipment arranged within 3 working days after payment.
Brand:
Pengduo
Product Description

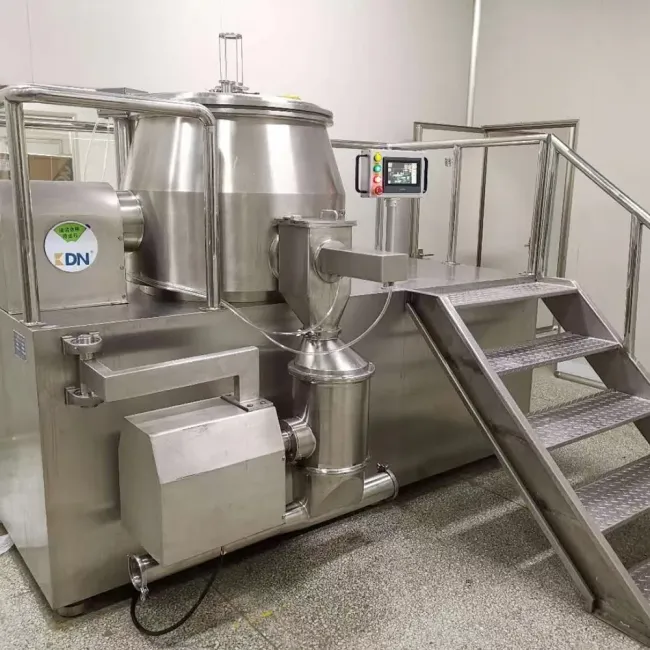

GHL High Shear Granulator
The GHL High Shear Granulator processes powder raw material and adhesive in a cylinder, where they are fully and rapidly mixed at the bottom to form humid soft material. This material is then cut by high-speed cutter/wings to produce uniform granules.
Product Features
- Cylinder structure with rotor wings for high-speed wet granulation, providing high granulate density and particle stability
- Air-filled seal shaft drive system that can be converted to water during washing
- Fluidized granulation producing spherical granules with excellent flow ability
- Reduces adhesive usage by 18-25% compared to traditional processes with shorter drying time
- Efficient operation: 2 minutes mixing time and 1-4 minutes granulating time, increasing efficiency by 4-5 times
- Complete process (dry mixing, wet mixing, and granulating) in the same sealed container, compliant with GMP requirements
- Comprehensive safety and protective measures throughout operation
- Optional jacket type available upon request
Technical Specifications
| Model | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
|---|---|---|---|---|---|---|---|
| Volume (L) | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Output (kg/batch) | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mixing Speed (r.p.m) | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Mixed Power (kw) | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting Speed (r.p.m) | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
| Cutting Power (kw) | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Compressed Air Consumption (m³/min) | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
| Weight (kg) | 500 | 800 | 1000 | 1300 | 1800 | 2200 | 2600 |
Product Gallery
Related Products
Our complete product line includes: GFL High Efficiency Fluidized Granulating Dryer, FLP Series Multi-Function Granulator & Coater, PGL-B Spray Drying Granulator, ZLB Extruder (Single screw extruder), BZJ Centrifugal Coater and Granulator, GK Dry Granulator, YK Swing Granulator, and KZL Rapid Granulator.
Company Advantages
We offer a diverse range of products and are committed to responding to your inquiries promptly. We adhere to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for management, with "zero defect, zero complaints" as our quality objective.
Certifications
Frequently Asked Questions
What kinds of payment terms can you accept?
The most commonly used payment terms are T/T, L/C, Paypal, Western union, etc.
What's your delivery time?
Usually we will arrange the shipment within 15-45 days after confirming the order.
How about the packing?
Standard packing, we also accept customized pack.
What is the Min Order Quantity?
Different products have different MOQ.
How about the validity of quotation?
Normally, the validity can keep a month, but when market changes fast, the validity will be short accordingly.
What documents you provide?
Usually, we provide Commercial Invoice, Packing List, Bill of loading, COA, and Origin of certificate. If your markets have any special requirements, let us know.
For more information, please don't hesitate to contact us.
