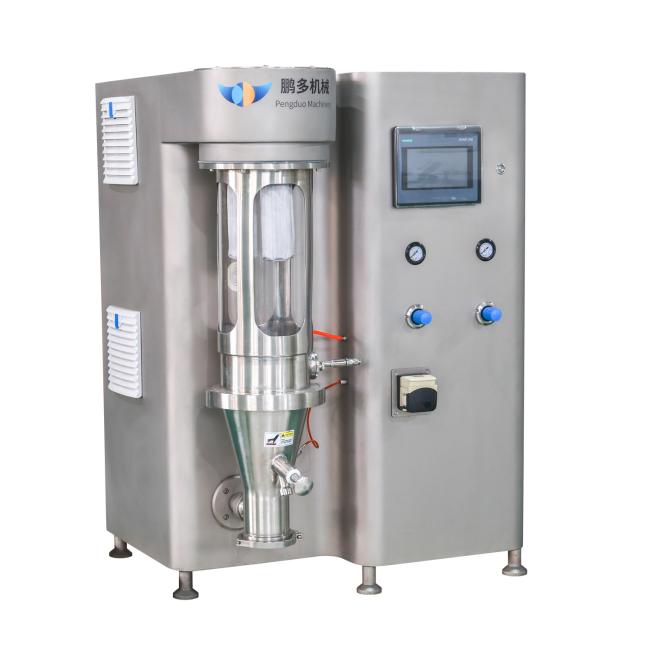

FLP Series Integrated Multi-Process Laboratory Fluidized Bed R&D Test Equipment
The FLP multi-functional granulation and coating machine is a multi-functional device integrating spray drying, granulation, centrifugal pelletizing, fluidized coating, and drying. This machine is compatible with a variety of process operations . It is particularly suitable for granulation, pill-making, and coating of multiple varieties and dosage forms in the pharmaceutical, food, chemical, and other industries
- All-in-One Multi-Functionality: Integrates granulation, pelletizing, and coating within a single machine.
- Extensive Processing Range: Handles granulation, coating, and pelletizing directly from raw powder materials.
- Chinese Herbal Extract Expert: Specifically optimized for traditional Chinese medicine (TCM) spray granulation and coating.
- Granule Sizing Capability: Successfully prepares large-sized granular granules ranging from 10 to 30 mesh.
- Advanced Membrane Processing: Supports thin, enteric-coated, sustained-release, and controlled-release coatings for powder, granule, and pill beds.
- Protective & Aesthetic Barrier: Provides exceptional odor masking, moisture-proofing, anti-oxidation, waterproofing, heat insulation, coloring, and isolation coating.
- Multi-Material Drying: Functions efficiently for the deep drying of powdery, granular, and lumpy materials.
| Name | Unit | 10 | 15 | 20 | 30 | 60 | 90 | 120 | |
| Container Diameter | mm | 700 | 800 | 900 | 1000 | 1200 | 1400 | 1500 | |
| Production Capacity | kg/batch | 2.5-10 | 3-15 | 5-20 | 7.5-30 | 10-45 | 20-90 | 30-120 | |
| Power of Fan | kW | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | |
| Steam | Pressure | Mpa | 0.4-0.6 | ||||||
| Consumption | kg/h | 35 | 42 | 47 | 60 | 160 | 180 | 240 | |
| 240Compressed Air | Pressure | Mpa | 0.6 | ||||||
| Consumption | m³/min | 0.6 | 0.6 | 0.6 | 0.9 | 1.1 | 1.3 | 1.5 | |
| Noise Level | dB | ≤ 75 | |||||||
| Mainframe Installation Dimensions | H₁ (mm) | 2790 | 3350 | 3650 | 3720 | 3850 | 3950 | 4190 | |
| H₂ (mm) | 340 | 490 | 490 | 590 | 690 | 740 | 790 | ||
| H3 (mm) | 2750 | 3130 | 3130 | 3500 | 3630 | 3720 | 3975 | ||
| Φ₁ (mm) | 700 | 1000 | 1000 | 1200 | 1300 | 1400 | 1500 | ||
| Φ₂ (mm) | 250 | 250 | 280 | 280 | 280 | 280 | 315 | ||
| L (mm) | 1250 | 1400 | 1450 | 1500 | 1600 | 1650 | 1700 | ||
| B₁ (mm) | 1160 | 1460 | 1560 | 1600 | 1760 | 1960 | 2060 | ||
| B₂ (mm) | 1860 | 2460 | 2460 | 2860 | 3260 | 3460 | 3660 | ||
- Top Spray Granulation Bed: Perfect for converting raw chemical or food blends smoothly into porous, rapidly dissolving powder granules .
- Bottom Spray Coating Bed: High-precision fluidization ideal for building controlled-release, micro-thin enteric membrane skins cleanly onto core pills .
- Swirl Fluidized Bed: Multi-angle vortex circulation preventing material blockages while maximizing total uniform fluid contact .
- Tangential Spray Pelletizing Coater: Mechanically optimized centrifugal action turning fine-grain micro-powders straight into perfectly dense spherical pellets .
