Liquid Chili Sauce Butter Packing Machine Stainless Steel Automatic Liquid Packaging Machine 4KW
Liquid Chili Sauce Butter Packing Machine Filling Automatic High Speed

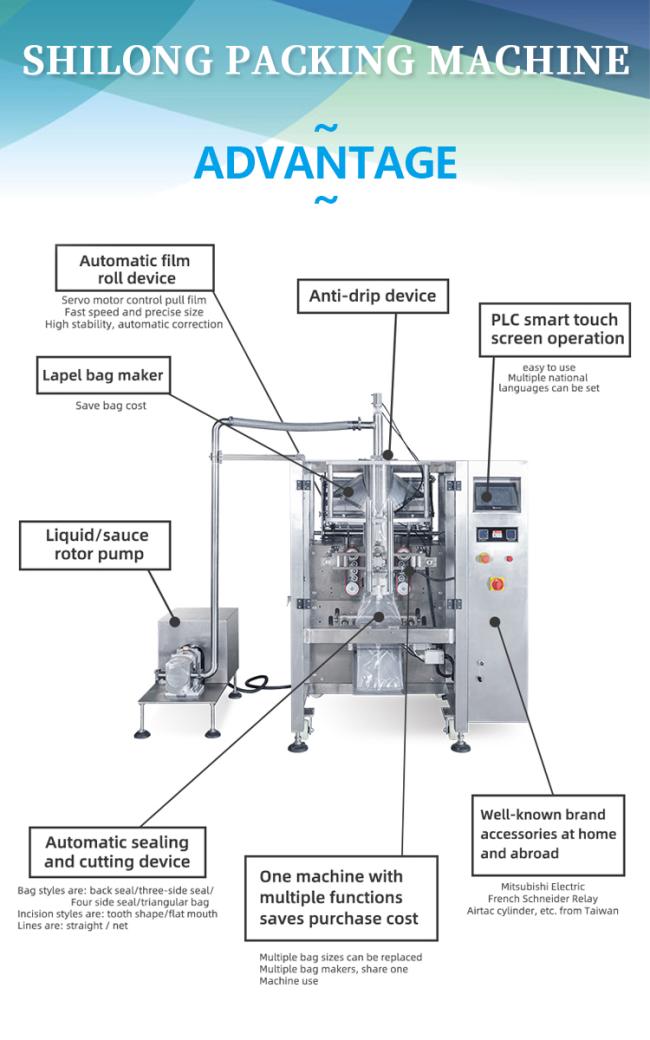

Characteristic
1. English and Chinese screen display ,operation is simple .
2. PLC computer system , function is more stable , adjustment any parameters not need stop machine.
3. It can stock ten dispose , simple to change variety.
4. Sever motor drawing film , position accurately.
5. Temperature independent control system ,precision get to±1°C.
6. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
7. Packing type diversification , pillow sealing, standing type ,punching etc.
8. Bag–making , sealing, packing, print date in one operation.
9. Work circumstance quiet, low noise.
can pack:All liquid,water,shampoo,sauces , such as packaging, suitable for 200ml or less of the product
Liquid Packaging Machine Specification
|
Type
|
SLIV - 520
|
|
Packing material
|
OPP/CPP,OPP/CE,PET / PE (etc complex film )
|
|
Bag-making size
|
400mm( L )
|
|
Packing speed
|
5-60( bags / min )
|
|
Max width of film roll
|
520mm
|
|
Measuring range
|
6000ml
|
|
Air consumption
|
0.65mpa
|
|
Gas consumption
|
0.7m3 / min
|
|
Voltage
|
220V / 50Hz
|
|
Power
|
4KW
|
|
Product size
|
1400 * 1000 * 1500mm
|
|
Product weight
|
500Kg
|
|
Optional Item:
|
|
|
Optional Features
|
Options / Description
|
|
Sealing Patterns
|
Checkerboard pattern
|
|
Flat line pattern
|
|
|
Other customized pattern
|
|
|
Sachet Cut-off Shape
|
Flat cut - off
|
|
Serration cut - off
|
|
|
Linking pouch cut - off
|
|
|
Tear Notch
|
To make tear notch with specific shape
|
|
Code Printing
|
Pressing type coder built - in
|
|
Ribbon code printing
|
|
|
Code inkjet printing
|
|
|
Hang Hole
|
To make hang hole with specific shape
|
|
Dust Collecting Device
|
To collect the dust during dosing
|
|
Inflating & Deflating
|
Air / Nitrogen Inflating
|
|
Air deflating
|
|
|
Packaging Film Correction Device
|
To ensure correct movement of the packaging film
|
