Cotton Candy Automatic Bag Filling And Sealing Machine 2.5L 0.8m3/ Min 0.65Mpa

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 15-25/day
Brand: Shiyuan
Product Description

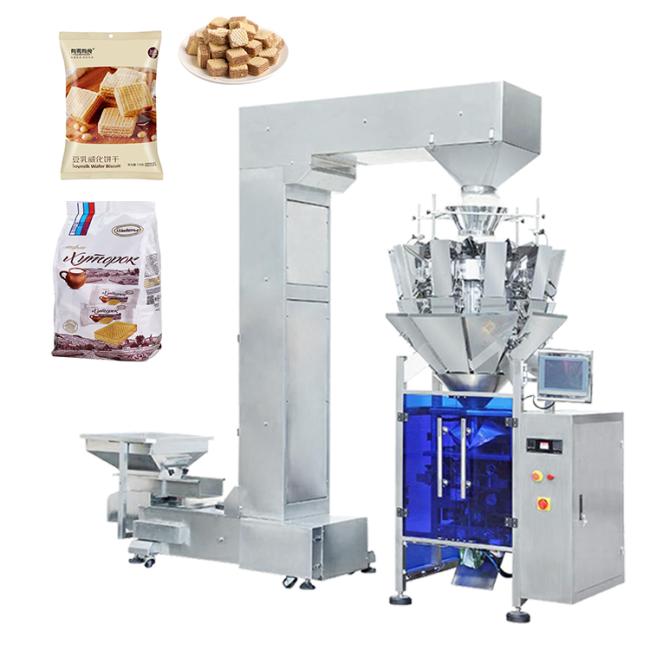

Cotton Candy Automatic Pouch Packing Filling Sealing Machine





Main Characteristics


1. Requirement for high precision measurement and fragile packaging bulk goods, such as gummy candy, puffed food, biscuit, crispy rice, dry fruit, potato chips, sweets, pistachio, apple slices, frozen food, chocolate, screw the nut hardware item, medicines etc.
2. Highly sensitive weighing sensor, with the highest measurement accuracy up to ± 0.5g—3g.
3. Separate circuit boxes for power control and pneumatic control, low noise, good tightness and much more stable for machine working.
4. Finish the procedure of measuring, filling, bagging, gas flushing (exhausting), sealing, cutting and counting automatically.
5. Have error indicating system, helping handle the trouble immediately.





Advantage


1. Equipped safely protection, comply with firm's safety management requires.
2. Use intelligent temperature controlling machines to have accurate temperature control ensure the artistic and neat seal.
3. Use PLC Servo System, pneumatic control system and super touch screen to form the drive control center; Maximize the whole machine’s control precision, reliability and intelligentized level.
4. Combine with weigher system, conveyor feeding and discharging, date printing equipment to be a complete packaging line.
5. This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging (exhausting) and products transporting automatically as well as counting.





Granule Packaging Machine Specification



Packing Material OPP / CPP OPP / PE NILO / PE PE
Measuring Range (Max) 2500ML
Bag Width 100 - 200mm
Bag Length (max) 300mm
Packing Speed 5 - 60bag / min
Max Width of Roll Film 420mm
Voltage 220VAC / 50HZ
Power 3KW
Product Size 1265L * 1060W * 1600H
Net Weight

400KG

Name 10 Head Weigher Checkered Plate
Model No. SL - 10 - 1
Features

60o steep discharge chute makes sure products discharge is acted smoothly.

Equipped with a especially designed central cone, rotary top cone can dispense the products into each linear feeder pans evenly.

Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers.

It is suitable for weighing soft and material, such as cheese,jelly candy etc.

Max. Capacity(g) 100 - 1000g
Weighing Accuracy ± 1 - 5g
Max. Weighing Speed 50Bags / Min
Hopper Volume 1.6L
Control Panel 7"LCD Touch Screen
Driving System Step Motor
Power Requirements 220V / 1500W / 50/60HZ / 10A
Dimension(mm) 1620 ( L )  × 1100 ( W )  × 1100 ( H )
Weight 380KG



Name Dip angle style elevator
Model No. SL - 350
Operational Throughput 6 cubic / h
Voltage 220V / 380V
Power 2KW



Name Finished Product Conveyor
Model No. SLIV-1000
Material 304SS
Conveying height 800mm
Throughput 50 - 300mm/s
Power 250W
Dimension 2190L* 437W * 1050H
