Automatic Silk Screen Printing machine For Glass Bottle JarCup plastic cup

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 45days

Brand: LC

Product Description

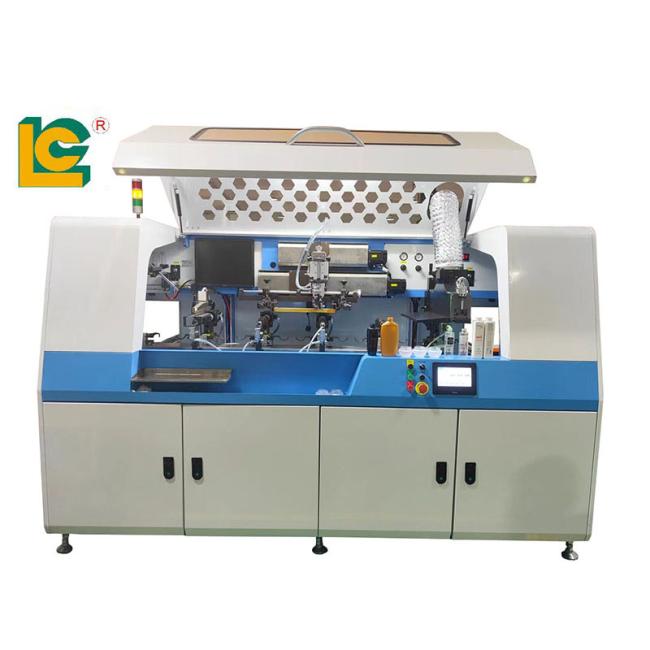

Automatic Silk Screen Printing machine For Bottle Jar Cup

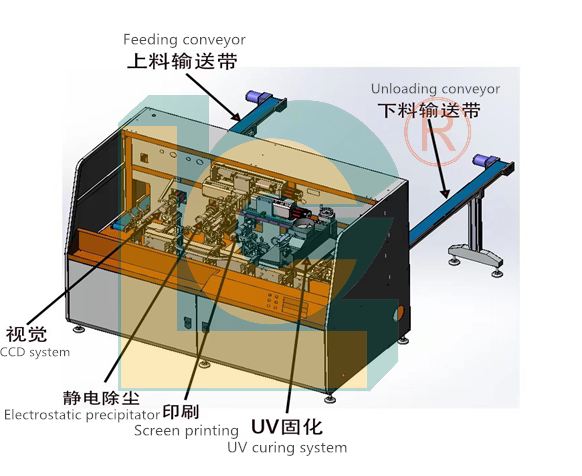

1.This machine with auto feeding ,flame treatment,CCD image positioning ,CNC Servo screen printing ,UV curing ,auto unloading.
2. It fit for printing round, oval, square, and other special shape glass and plastic ,metal products. The visual positioning system can locate the bottle bottom or bottle body.

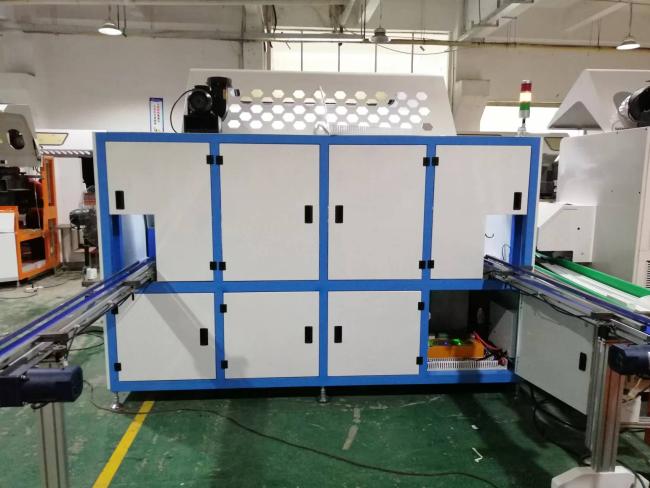

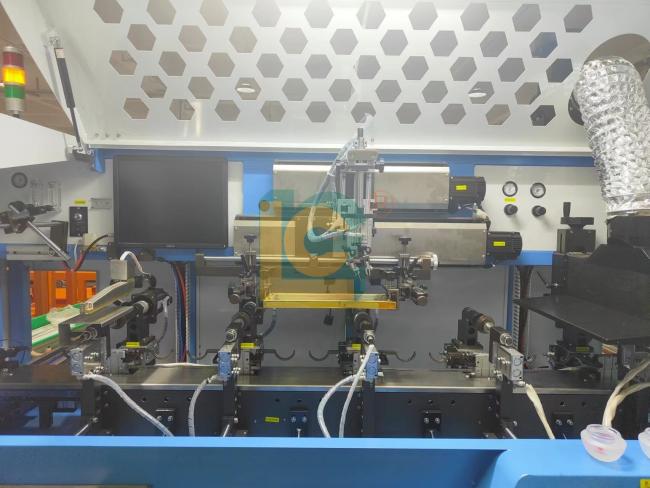

Details of the machine

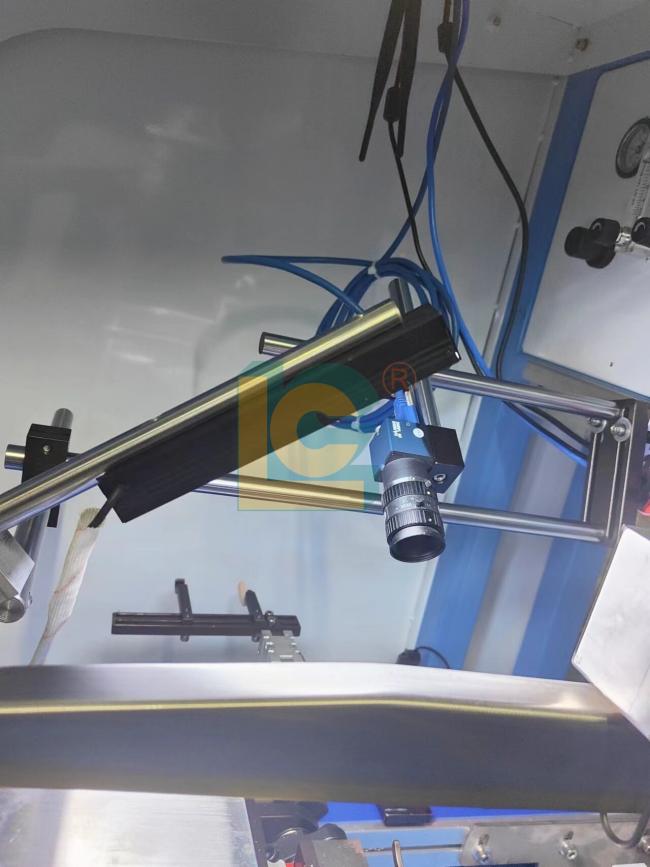

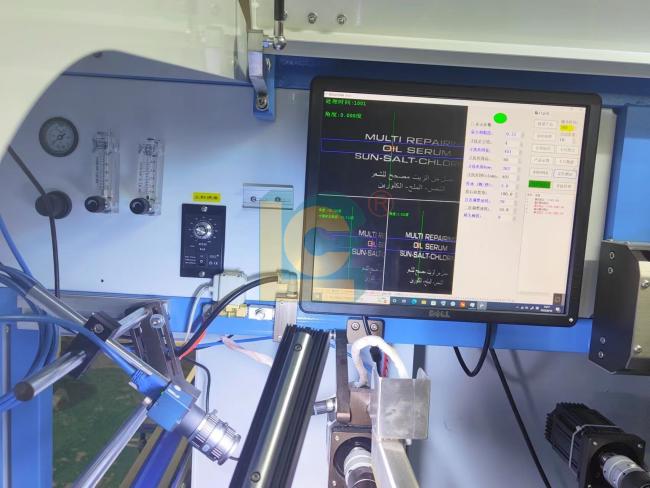

CCD Image Positioning

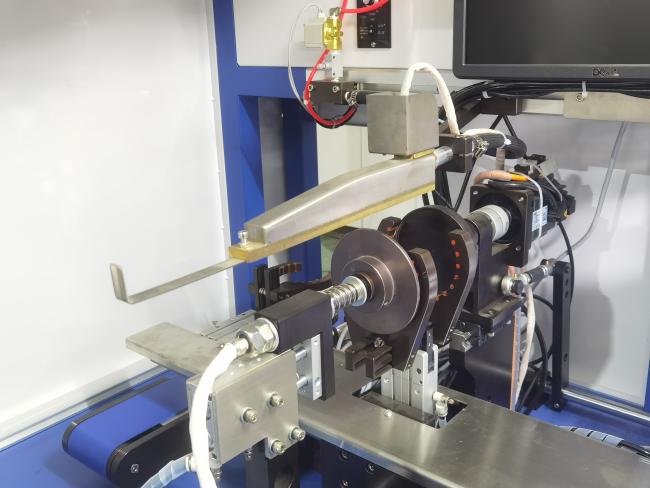

Flame Treatment

Machine Advantage

Auto loading and unloading .
With Dust clean
Auto flame treatment before printing and UV curing after printing .
With servo control ,can print square shape bottles 4sides at one time .
Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
Printing accuracy: ±0.02mm
Well built machine house with CE standard safety design.

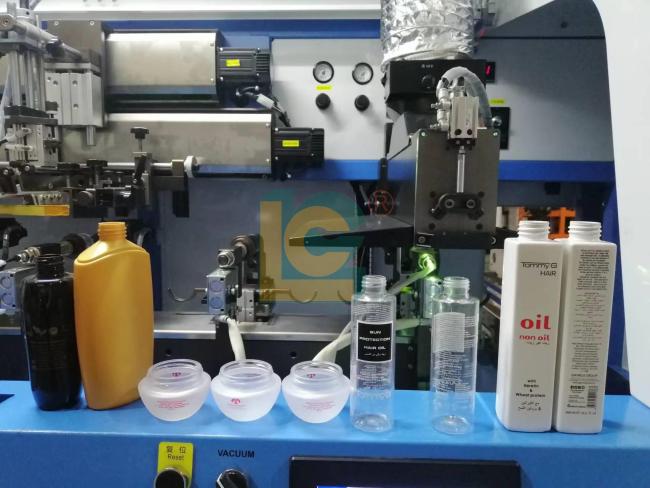

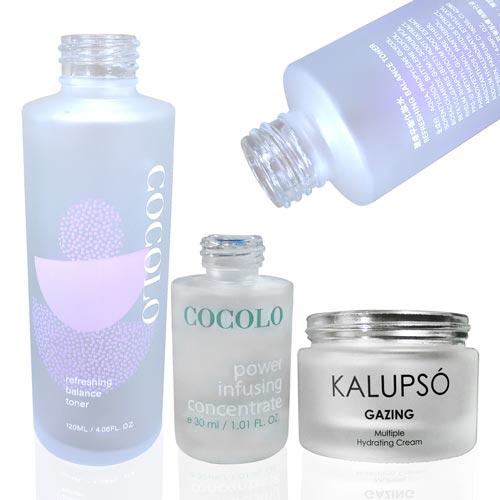

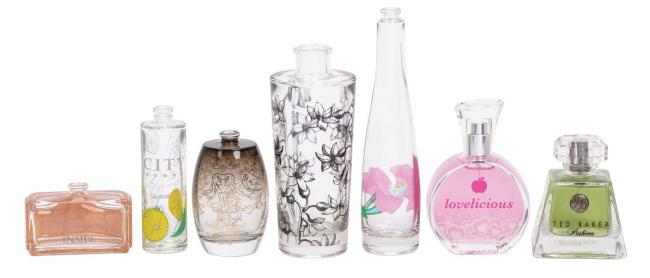

Printing Samples

Specification

item	value
Plate Type	Screen Printer
Applicable Industries	Printing Shops, Other
Condition	New
Place of Origin	Guangdong China
Brand Name	LC
Usage	Tube Printer, Bottle Printing
Automatic Grade	Automatic
Color & Page	Multicolor
Voltage	380v
Weight	2500KG
Certification	CE
Warranty	1 Year
	Online support, Free spare parts
Key Selling Points	High-accuracy
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	PLC, Other
Printing color	1 color(can print multi color by multi times)
Product appearance	cylinder/flat/oval and other special shape,
Operation	Full CNC Servo
Diameter of circular printing	15mm~100mm
Circular printing height	20mm~270mm
Flat printing diameter	R20mm~R180mm
Flat printing height	20mm~270mm
The fastest printing speed	70Pcs/min
Rated power	7.5KW
Air pressure requirement	5~8bar

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

01:04

02:43

Luen Cheong Printing Equipment Limited has manufactured LC brand color printing machines for more than 30 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine.We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard. With great effort and constantly exploration, now we can supply 200 various industrial printers per month. Our printing machines have been exported to more than 65 countries around the world and we also dispatch some printing engineers to give our customers technical support overseas. Our clients are satisfied with our products We produce 8 series of printing machines with more than 30 types of screen printers, pad printers and hot stamping machines. Our main series are as follows: (1) Full Automatic UV Screen Printer (2) Plane/Cylinder Semi-Automatic Silk Screen Printer (3) Manual AD Silk Screen Printer (4) Multi-Colour Sealed Ink Cup Pad Printer (5) Multi-Colour Open Ink Tray Pad Printer (6) UV Curing Machine & IR Dryer Oven (7) Hot Foil Stamping Machine (8) Heat Transfer Printing Press (9) Machine Equipment Pre-Post Printer Our printing machines are widely used in the industry of plastic and hardware cosmetics case packaging, and electronic gift or toys, electronic industry, household appliance, bottle cap, stationery pen, glass, PCB board, advertising, textiles, lighting etc. We have a professional training after sales service department, which is free to resolve your problem on installation and adjustment of the machine. We are located in China industrial zone center, Dongguan City, only two hour's car ride from Guangzhou BAIYUNPORT. If you are interested in our products, please feel free to contact us at any time. Welcome to make a field inspection of our factory.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2010,sell to Western Europe(35.00%),North America(15.00%),Southeast Asia(15.00%),Africa(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Flat Screen Printer / Cylinder Screen Printer / Automatic Screen Printer / Servo Screen Printer / Pad Printer,Hot Stamping Machine

4. why should you buy from us not from other suppliers?
We are specialized in Pad Printer, Screen Printer, Hot Stamping Machine and UV Curing Machine with excellent quality and reasonable price for 30 years. Welcome to make a field inspection of our factory.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
