China Automatic Silk Screen Printing machine For Glass Bottle Cup plastic cup for sale

Automatic Silk Screen Printing machine For Glass Bottle Cup plastic cup

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 45days

Brand: LC

Product Description

Fully Automatic screen printing machine for conical,voal,square,more irregular products, glass bottle,jar screen printer

High-Precision 360° Wrap Glass Bottle Printer for Custom Designs

Specification

Model	LC-CNC106
Printing color	1 color
Printing speed	2700-3600pcs/hr
Max Product size	round diameter 100 mm, length 300 mm
Applicable products	Round ,Square,Oval and other special shape glass plastic bottles,jars,cans ,cups.
Left and right stroke of scraper	355 mm
Scraper, oil return knife up and down stroke	Cylinder control 20 mm, adjustable screw stroke 50 mm
Compressed air	5-6 BAR
Power supply	380V/50HZ
Total power	20KW

Features
1.Auto loading and unloading with multi axis servo robot.
2.Dust clean
3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc. all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for future maintenance and ungrading.

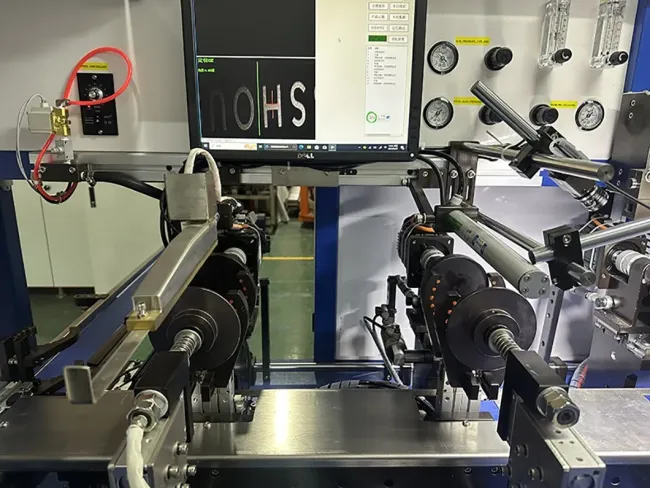

7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.

Fast, Innovative, Convenient and GreenThis full servo printing machine can print round, oval, square, polygonal plastic and glass
products. The visual positioning system can locate the bottle bottom or bottle body. Compact look and reduced overall dimensions
make it suitable for small-sized companies as well.
User-friendly interface.screen printing head can be replaced to hot stamping head,make multi color screen printing and hot
stamping in one line.

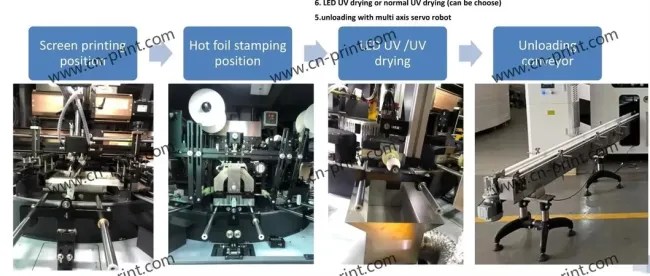

CNC106 monochrome 6 station turntable machine, with double vision, electrostatic dust removal, flame treatment, LED UV system, can
print glass self-drying oil, LED oil, plastic UV oil, but also can change the hot foil head! Instead of traditional mechanical
models, shuttle models!
