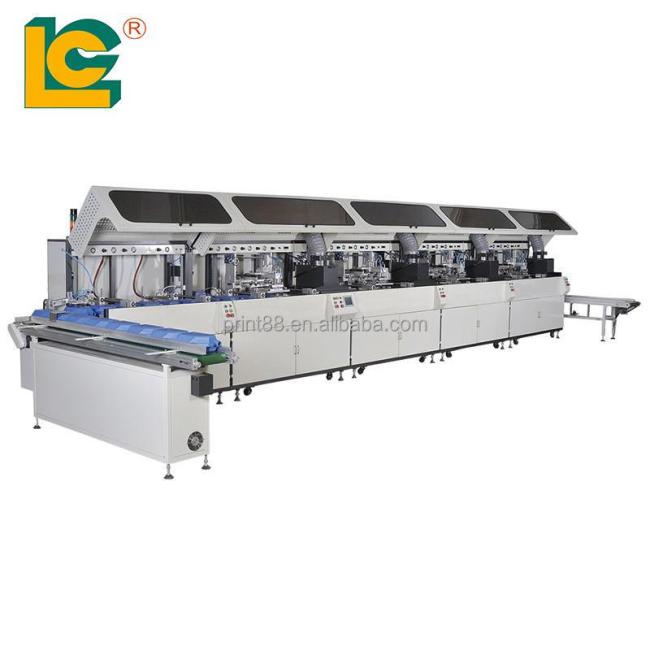

China 4 color automatic big bucket screen printing machine for sale

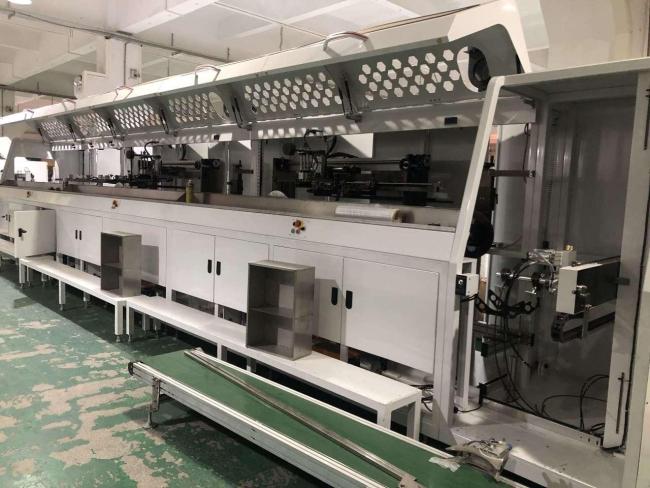

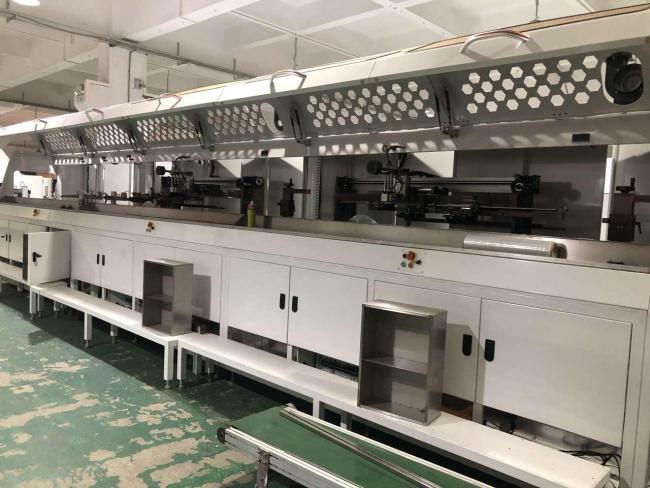

4 color automatic big bucket screen printing machine

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 35days

Brand: LC

Product Description

The machine is specialized design for printing the round or oval bottles, with easy operation and stable.

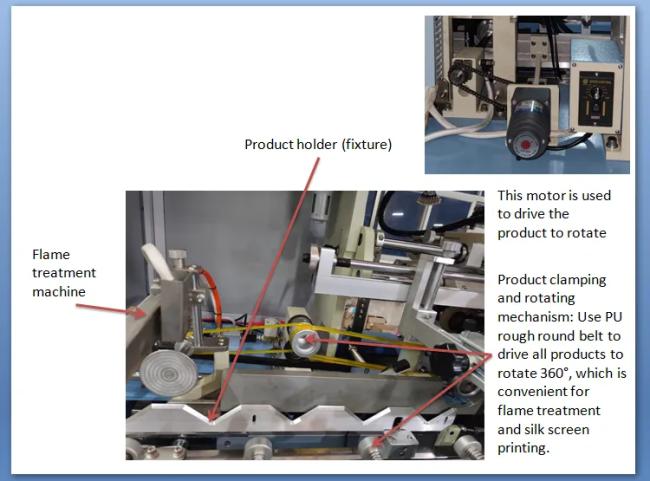

Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV screen printing and UV curing.
It is a mechanical conveyer ,With touching control panel operation , easy to operate the machine. Fast adjustment, easy operation. Fast printing,speed:4000pc/hr.

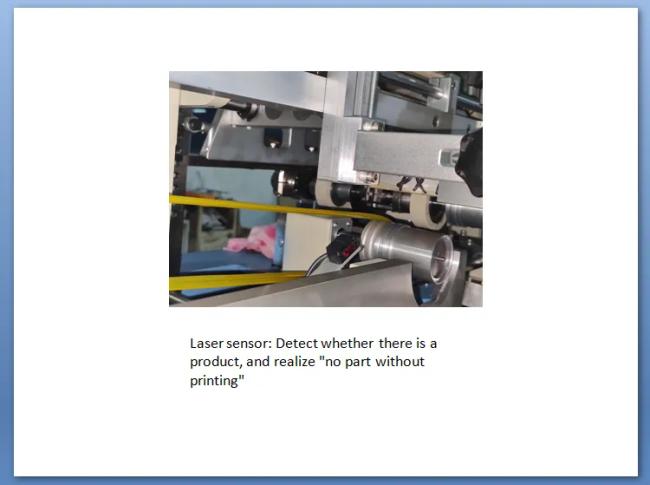

Fully automatic,It will alarm when the machine without product loading and no printing without product. it can save energy.
All components and control system are from Germany and Japan, guarantee the quality of the print.

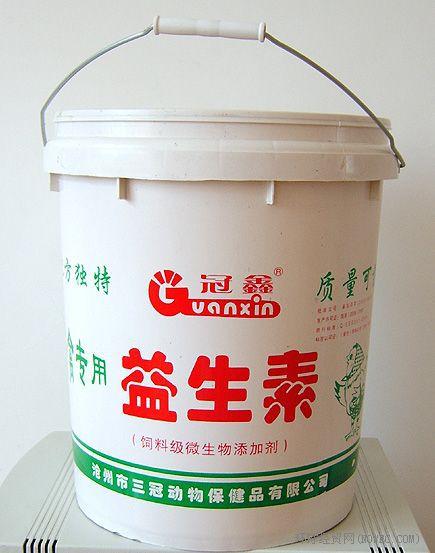

It is suitable for print round/oval product printing such as the cosmetic bottles, drink bottles, cans ect

Specification

item	value
Plate Type	Screen Printer
Applicable Industries	Building Material Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Condition	New
Place of Origin	China
	Guangdong
Brand Name	LC
Automatic Grade	Automatic
Color & Page	four color
Voltage	380V
Dimensions(LWH)	467146216cm
Weight	6500KG
Certification	CE
Max. Print Area	900*280mm
Warranty	1 Year
Key Selling Points	Easy to Operate
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, PLC
Model No.	LC-120AL-4S
Subject surface	Oval and Round
Circular printing diameter	60-200mm

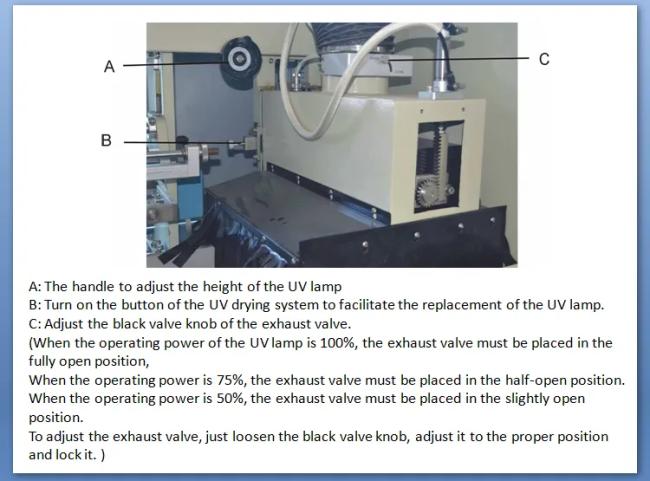

The power of UV lamp	4Kw/unit
UVair draft power	0.2KW
Output(pcs/min)	25-40
Flame treatment fuel	LPG
Air consumption	400Liter/Min
Power supply	AC380V 3Phase 50Hz
Vacuum supply	500 mmAq
