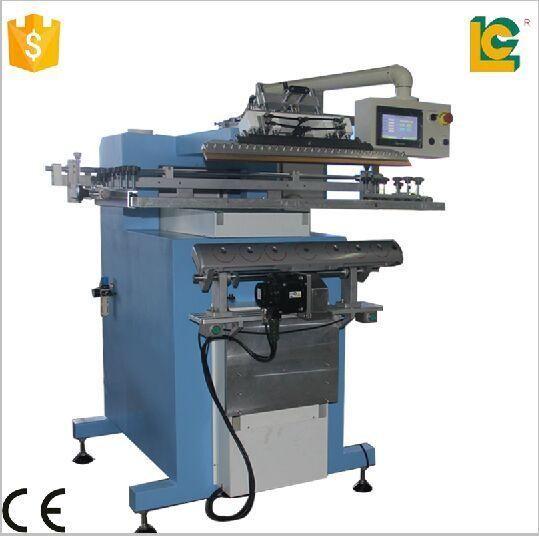

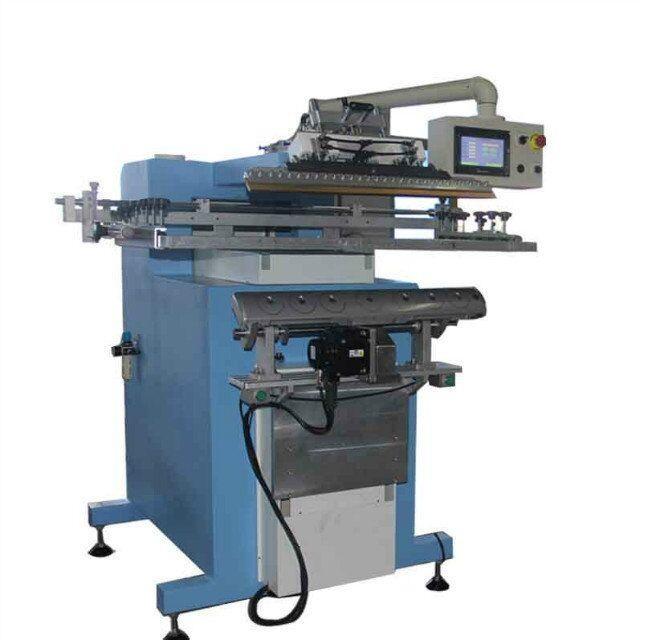

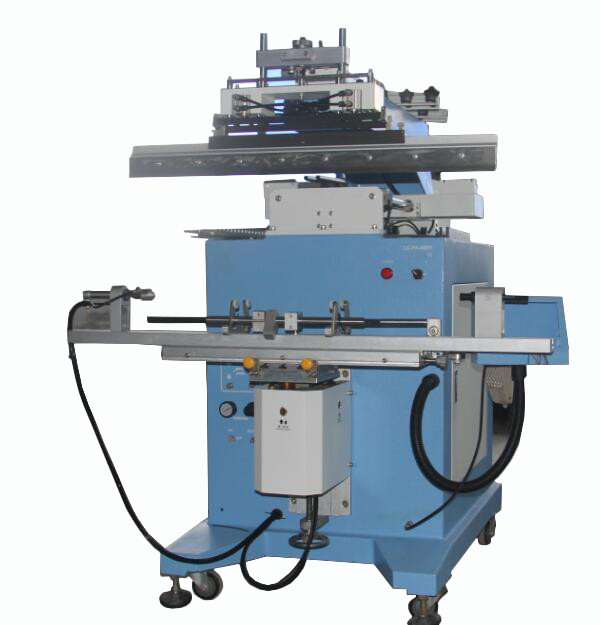

Long Tube Cylinder Screen Printing Machine
This machine is designed for precise printing of long shafts. such as fish pole, golf clubs, cue, Golfball Rod, Fishing Rod, Water Pipe, and any kinds of long tube product printing with long printing size. It is also featured by its 360 degree printing and one fixture is suitable for all diameter is within 130mm whole circle or half circle single color and multicolor printing!
1. Model number:LC-PA-400H
2. Printing color:1 colors
3. Max.printing diameter:120mm Max length:800mm
4. Printing Speed:1000P/H
5. power:35W
6. Air pressure:0.5Mpa
7. Power supply:220V/50Hz
8.machine size:1430x1240x1510(mm)
9.machine weight:180(kg)
https://www.youtube.com/watch?v=8T0bMal_lDk
- 1. 110V or 220V power supply.
- 2. 5-7 bar compress air.
- 3. Esposal screen plate 1 pcs.
- 4. A jig 1pcs.
- 5. 5-10 pcs product samples.
Price Terms:FOB or CFR
Payment Terms:T/T or L/C
Packing:Wooden case
Lead Time:5 days after confirm Payment.
SKU:10 set
Standards Certificate:CE
Cubic Meter:1.6
Machines Fittings:Screen Cliche
Gross Weight:180KG
Main Parts:FESTO cylinde made by Geramny
Application area:detergent bottles, Pens, beverage bottles, cups, cans, , Cosmetics package box, lipstick tube,
