Application Scope

• Cosmetic packaging factories: Perfume bottles, skincare bottles, makeup containers, personal care packaging.
• Beverage & liquor factories: Wine bottles, beer bottles, juice bottles, beverage packaging bottles.
• Pharmaceutical packaging factories: Medical bottles, oral liquid bottles, health care product containers.
• Food packaging factories: Seasoning bottles, honey jars, edible oil bottles, food glass containers.
• High-end packaging & custom packaging manufacturers: Premium gift bottles, branded customized containers, decorative packaging.

Large size buckets heat transfer machine

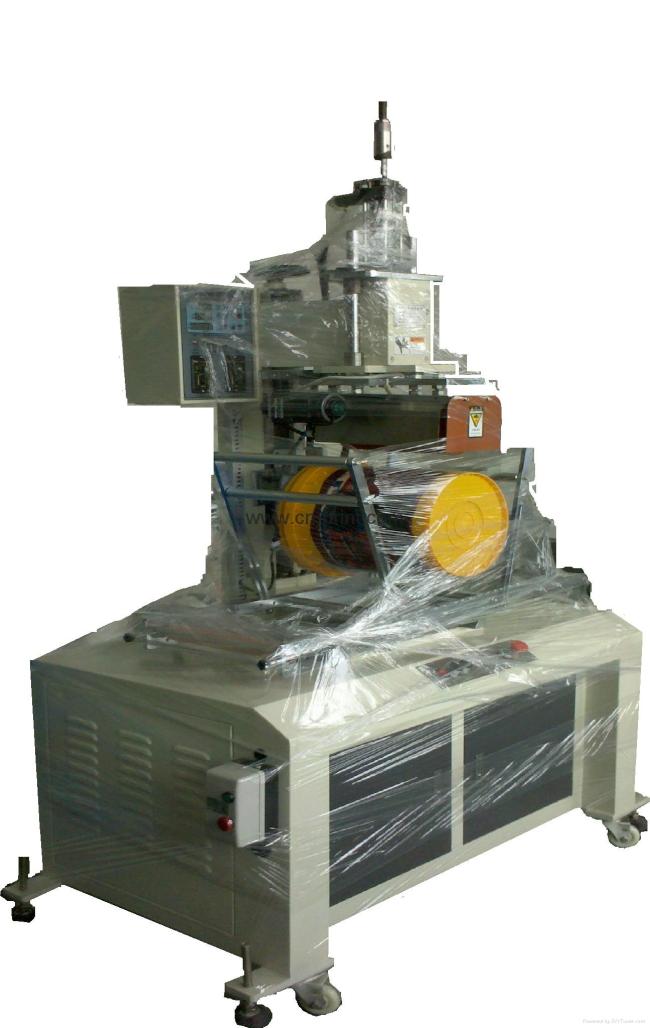

Full automatic 20L paint bucket heat transfer machine with PLC

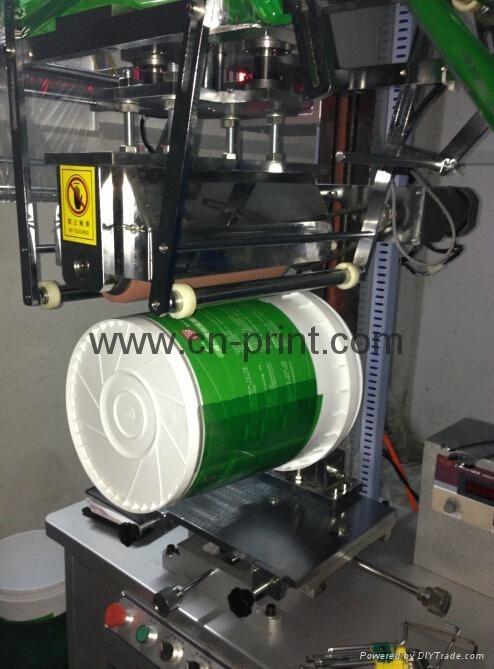

Here is the video show the machine working

Features:

1. An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping , roll stamping , flat stamping and round surface, such as a multi-purpose pressure round running.
2. Gilding press elbow mechanism design, strong steady pressure of 250kgf, under hydraulic pressure, up to 1 ton.
3. Stamping pressure, temperature, hot pressing time is adjustable.
4. operating panel with emergency stop device, easy to operate ,safe and fast.
5. the fixtures rotation speed pressure is adjustable,the time is adjustable .
6. automatic collection feeding  is adjustable. Taiwan motor, can be customized for the two-speed winders cover a bit more precise, go within membrane accuracy 0.5mm.
7. installation photocell (Taiwan's Yangming electric eye, 250 times per second high-precision motion) to locate the point of thermal transfer paper with precise tracking control.
8. lifting stamping head height adjustable, stamping 300MM larger workpieces. Taiwan gold solenoid valve precise control, the German NASS coil stable and durable. All screws are made of 12.9, more stable and more durable.
9. with emergency stop safety devices to protect the safety of the operator.

Product parameters:

• Max stamping diameter: L 280* φ300mm
• Heating power(can be customize): 2000W
• hot head outer diameter: 100mm /inner diameter of 30mm
• Stamping temperature range of options: room temperature reach 280 degrees Celsius
• Stamping time: 0-99 seconds
• Stamping pressure range of options: ≤250kgf -100kgf (7bar)
• Stamping speed: 120pcs / hr
• Power: 220 V/ 50Hz
• Machine weight: 500KG
• Dimensions: 1400 × 1000 × 1900mm
