2-Colors Conveor Belt Sealed Cup neck label pad printing machine
Price:
Negotiable
MOQ:
1set
Delivery Time:
35days
Brand:
LC
Product Description

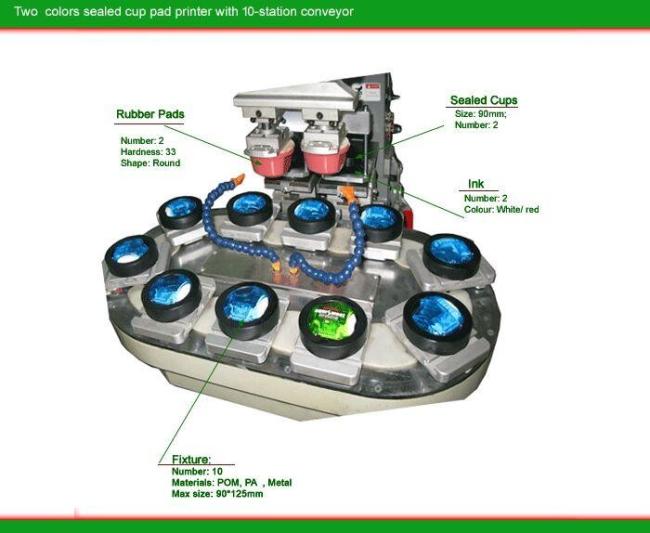

Two color pad printer with conveyer & Closed ink Cup
Two color pad printer with conveyer has 10 PCS printing position. It can print 10 PCS products and two colors at one cycle.
Features
- Controlled by microprocessor, easy operation, running stably and accurately.
- 4-digit auto counter built-in.
- Cast aluminum machine frame, low weight and high intensity, turnable machine head.
- Separate adjustment of the pad up/down stroke speed.
- Ink scraper is auto balance keeping in printing.
- With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
- Ink cup is turnable and adjustable in vertical and horizontal direction.
- Super long slide stroke to print large size workpiece.
- Speed of every single pneumatic organ is adjustabl
Specifications
Model No: LC-SPM2-150/10T
- Operation: Pneumatic
- Printing Colors: 2
- Max. Printing area: 80x135 mm
- Plate area: 100*250 mm2
- Sealed ink cup diameter: 90mm
- Max printing speed: 1800PCS/H
- Wattage: 220V/ 50Hz 110V/60Hz
- Air pressure: 6 Bar
- Machine size: 1400* 730* 1470mm3
- Machine weight: 198kg
Model No: LC-SPM2-200/10T
- Operation: Pneumatic
- Printing Colors: 2
- Max. Printing area: 80x165 mm
- Plate area: 100*300 mm2
- Sealed ink cup diameter90mm
- Max printing speed: 1800PCS/H
- Wattage: 220V/ 50Hz 110V/60Hz
- Air pressure: 6 Bar
- Machine size: 1400* 730* 1470mm3
- Machine weight: 208kg
| Model No | LC-PM2-100T | LC-PM2-150T | LC-PM2-150LT | LC-PM2-200T | LC-PM2-250T | LC-PM2-150-10T | LC-PM2-200-10T |
|---|---|---|---|---|---|---|---|
| Printing Colors | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| station | 1Pcs | 1Pcs | 1Pcs | 1Pcs | 1Pcs | 10Pcs | 10Pcs |
| Plate area | 100*200mm | 100*250mm | 150*300mm | 100*300mm | 150*400 | 100*250mm | 100*300mm |
| Workbench size | 165*165mm | 165*165mm | 165*165mm | 165*165mm | 165*165mm | 90*125mm | 90*125mm |
| Sealed ink cup diameter | 60 or90mm | 60or90mm | 140mm | 60or90mm | 140mm | 60or90mm | 60or90mm |
| Max printing speed | 1300pcs hr | 1200 pcs hr | 1200 pcs hr | 1200 pcs hr | 1200 pcs hr | 1800 pcs hr | 1600 pcs hr |
| Air pressure | 6bar | 6bar | 6bar | 6bar | 6bar | 6bar | 6bar |
| Wattage: | AC110V 220V | AC110V 220V | AC110V 220V | AC110V 220V | AC110V 220V | AC110V 220V | AC110V 220V |
| Machine size | 860*460*1400 | 880*460*1400 | 980*530*1400 | 960*460*1400 | :910*550*1470mm | 1000*700*1420 | 1100*700*1400 |
| Machine weight | 120kg | 120kg | 130kg | 135kg | 150kg | 165kg | 170kg |
Free Fitting
- Two PCS pad steel plate
- Two PCS silicone rubber pad
- One PCS jig
- Tooling box
- Englishi specifications
Commercial Terms
- Price Terms --FOB or CFR
- Payment Terms --T/T or LC
- Packing --Wooden case
- Lead Time ---5days after confirm PO
- SKU ---5-10sets
- Standards Certificate--- CE
- Cubic Meter--- 1.42
- Gross Weight ---208kg
- Main Parts FESTO CYLINDER (MADE BY GRMANY )
