G4FJ 1.6T T-GDI Cylinder Block Bare Engine Block for Hyundai Kia Tucson Kona I30 Sportage OEM 21110-2B700

Product Overview

This is a 100% brand new Hyundai-Kia G4FJ 1.6L turbo direct-injection (T-GDI) bare cylinder block, aluminum alloy casting with cast-in iron liners, open-deck cooling design, CNC deck surfaced and torque-plate honed. It is the correct block for all G4FJ 1.6T applications — not interchangeable with G4FD/G4FA non-turbo Gamma blocks due to piston oil-nozzle bosses, main cap geometry and turbo oil return port differences.

Key Specifications

• Engine Code: G4FJ (Gamma 1.6 T-GDI)
• OEM / Reference No.: 21110-2B700, 21110-2B750, 211102B700, 211102B750
• Displacement: 1591 cc (Bore 77 mm × Stroke 85.4 mm)
• Configuration: Inline-4, DOHC 16V, Turbo + GDI, Dual CVVT
• Power / Torque: 129-150 kW (177-204 HP) / 265 N·m
• Block Material: Aluminum alloy + cast-in iron liners, open deck
• Condition: New casting, machined, cleaned, pressure-tested, no crack

What's Included (Bare Block Only)

Cylinder block casting, finished bores, cam-chain case mating surface, turbo oil feed/return ports, piston oil-nozzle bosses, coolant passages, threaded holes. Main caps supplied per build option. Crankshaft, pistons, rods, cylinder head, oil pump, timing kit, pans are NOT included — reuse buyer's original or source separately.

Fitment / Application

Hyundai: i30 (GD 2015-2017 / PD 2017+), Elantra (AD 2017-2020), Kona (OS 2017-2020), Lafesta (2018-2022), Sonata (LF 2014-2019), Tucson (TL 2015-2020), Veloster (FS 2012-2018 / JS 2018+).
Kia: Ceed (JD 2013-2018 / CD 2018+), ProCeed (CD 2019+), Cerato/Forte (YD 2013-2018 / BD 2018+), K3/K4 (2012+), KX3 (2015-2019), Optima/K5 (JF 1.6T 2015-2019), Seltos (SP2 2019+), Soul (PS 2016-2019 / SK3 2019+), Sportage (QL 2015-2021), XCeed (CD 2020+).

*Confirm engine tag reads "G4FJ" (not G4FD/G4FA/G4FG). 1.6T only. Match OEM block number 21110-2B7xx before ordering.*

Quality & Machining

Each block is magnetic-particle checked for cracks, torque-plate honed to factory clearance, deck resurfaced, main bore line-honed, oil galleries high-pressure flushed, and leak-tested before crating.

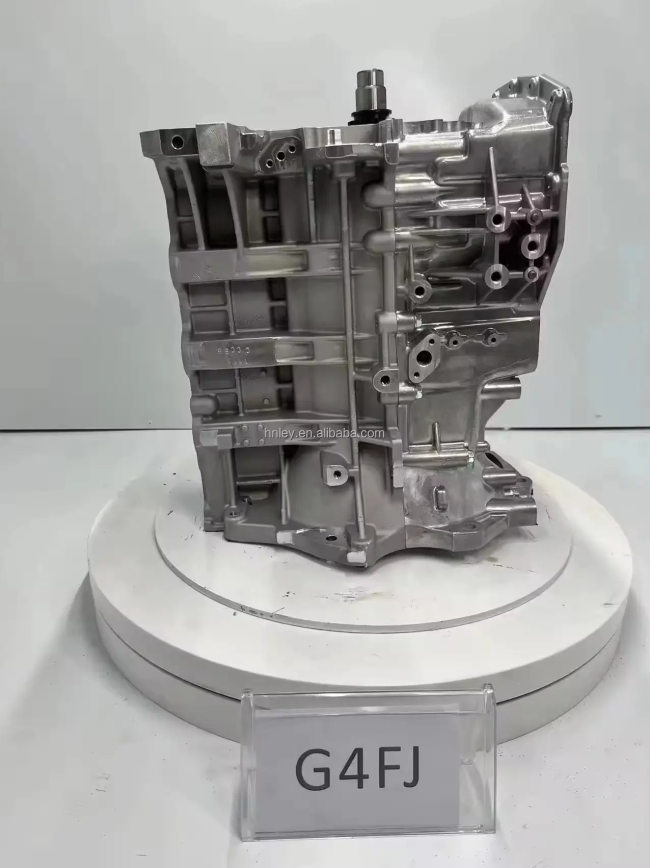

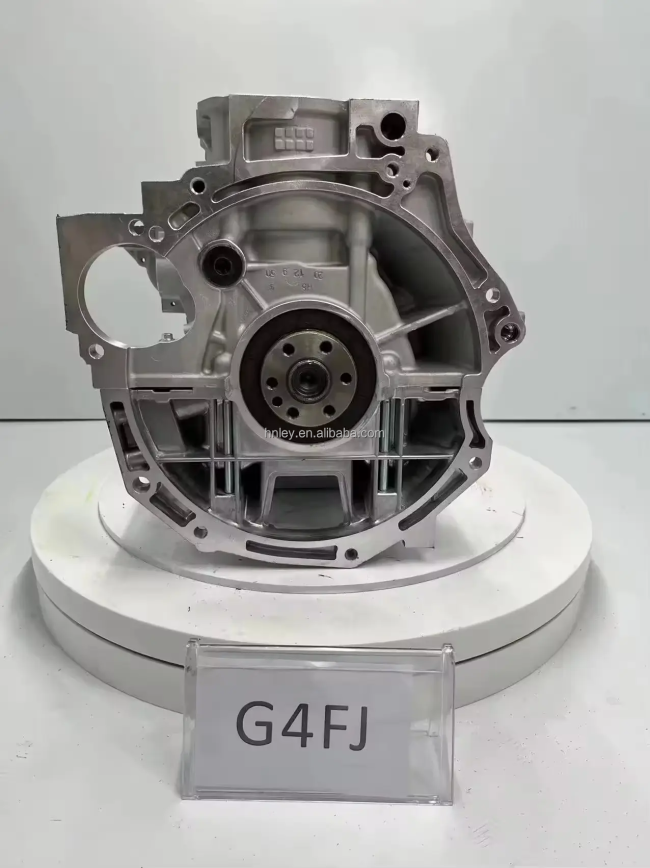

Note: This listing is BARE BLOCK ONLY, not a long block and not a complete engine. Photos show actual casting; neutral packing or laser logo available for bulk orders.
