Measuring Laser Distance Sensor 35~435mm Wide Range With NPN PNP Analog And RS485 Output

• Product performance description

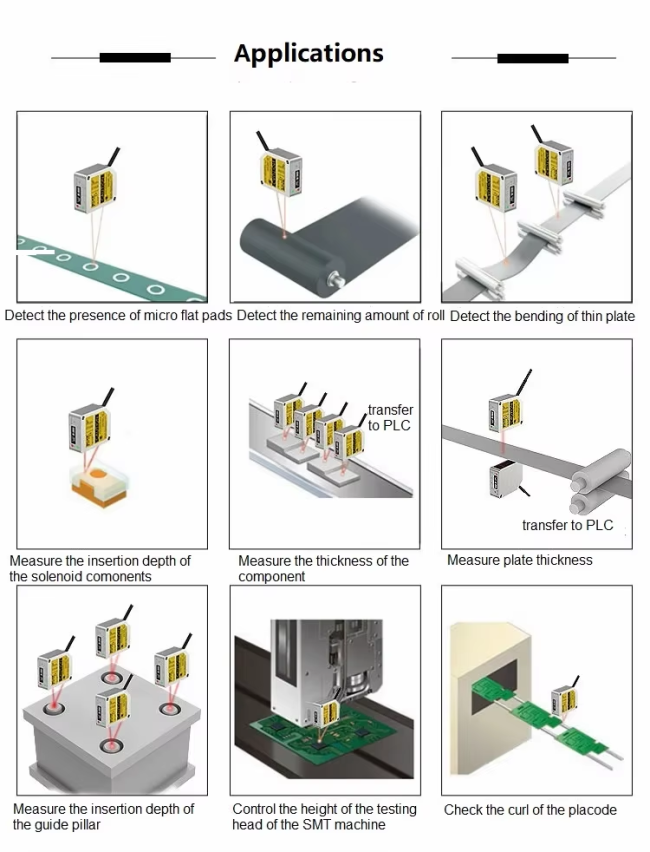

• BGL series laser displacement sensor is a sensor that uses laser technology to measure. It can be used to detect the geometry of the object's position, displacement, distance, thickness, height and diameter by accurately distinguishing the position and displacement change of the measured object. It is especially suitable for various application scenarios that require high detection accuracy.
•
  Advantage
•
  1. Ultra-high cost performance;
  2. Precision, small spot and small volume;
  3. Tri output modes: NPN, PNP analog and RS485;
  4. Multiple detection modes are suitable for more application scenarios: general detection mode, one-point teaching mode, two-point teaching mode, three-point teaching mode, descending differential mode, and ascending differential mode;
  5. The top of the large output indicator light, beautiful and generous
  6. Digital tube display distance value, clear and bright;
  7.Membrane switches, easy to use;
  8. Aluminum alloy shell, strong and durable.

• Model	NPN	BGL-235NZ		PNP	BGL-235PZ
  	NPN+Analog	BGL-235NMZ		PNP+Analog	BGL-235PMZ
  	NPN+RS485	BGL-235NZ-485		PNP+RS485	BGL-235PZ-485
  Detection Type		Diffuse reflection
  Datum (center) Distance		235mm
  Sensing Range(F.S.)		35~435mm
  Full Scale		400mm
  Repeat Accuracy		35~135mm:0.1mm 135~235mm:0.3mm 235~335mm:0.8mm 335~435mm:1.5mm
  Linear Precision		35~200mm:±0.1% F.S. 200~400mm:±0.2% F.S. 400~435mm:±0.3% F.S.
  Temperature Drift		±0.03% F.S./℃
  Light Source	Mediun	Red laser, wavelength 655nm
  	Output Power	<1mW
  	Laser Class	IEC Class 1
  Output	Switching Output	NPN Open collector, ≤ 50mA/DC 24V, residual voltage<1.5V
  	Analog Output	Analog voltage: 0~5V (5.2V during alarm); Analog current: 4~20mA (alarm: 0mA),  switchable
  Output Operation		Light.on/Dark.on selectable
  Response Time		1.5ms/5ms/10ms,switchable
  Operation Voltage		DC 12~24V ±10%
  Consumption (no-load) Current		<30mA(at supply voltage 24V DC),<60mA(at supply voltage 12V DC)
  Indicator		Output indicator light: yellow; Power indicator light : green
  Ambient Illuminace		Incandescent lamp ≤ 3000Lux; Sunlight ≤ 20000Lux
  Ambient Temperature		Operation temperature:-10℃~45℃；  Storage temperature:-20℃~60℃(no freezing)
  Ambient Humidity		Operation humidity: 35%~85% RH; Storage humidity: 35%~85% RH (no condensation)
  Protection Circuit		reversal protection/surge protection/short circuit protection
  Protection Level		IP66(IEC) (IP67 can customized)
  Vibration Resistance		10~55Hz , dual amplitude 1.5mm,  X/Y/Z each direction 30 min
  Impact Resistance		300m/s2  X/Y/Z each direction 3 times
  Material	Housing Material	aluminum alloy
  	Lens	PMMA
  	Cable	PVC
  Connection Type		Include 2 meters 5 core standard cable (cable diameter 4.0mm), can be customize
  Weight		about 85g (include 2 meters 5 core standard cable)
