Easy to setting
30~500 mm long sensing distance
can adjust spot size.
Digital sensor, can sensing/ distinguish products/accurately distinguish others' different colors.
suitable for various scenarios
Industrial Color Sensor Photoelectric Color Mark Detection Packaging Machine Label LR Series Replacement
Price:
$68
MOQ:
1
Delivery Time:
5~8 work days
Brand:
BOJKE
Product Description

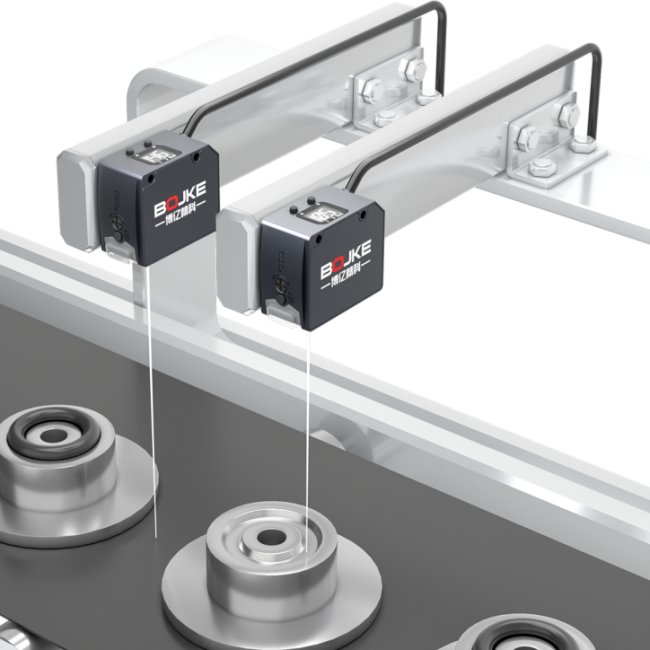

Industrial Colour Sensor Photoelectric Color Mark Detection Packaging Machine Label LR Series Replacement
Product Description
|
Product Name
|
Color Mark Sensor
|
|
Material
|
Aluminum alloy
|
|
Function
|
color detection and color recognition
|
|
Package
|
kraft box
|
-
Product performance description
| Model | BS-500NP |
| Working Voltage | DC12~24V ±10% |
| Cosumption current | at 24V<60mA |
| Sensing range | 30~500mm |
| Light Source | white LED |
| Min light spot size | Φ5mm when distance at 100mm; Φ26mm when distance at 500mm |
| Detection Mode | C mode and MARK mode switchable |
| Response Time | 200us/1ms/10ms/100ms/500ms swittchable |
| Output | NPN/PNP switchable |
| Max load current | 100mA |
| Residue voltage | when 100mA:NPN ouput |
| NO/NC switchable | |
| Ambient Illumination | Incandescent lamp: 20,000lux or less Sunlight:30,000lux or less |
| Ambient Temperature | - 10 ~ +55℃ , no freezing |
| Ambient humidity | 35%~85% RH no condensation |
| Protection circute | polarity reversal protection/surge protection/short circuit protection |
| Protection level | IP67 |
| Connection type | cable type(4 core cable length 2meter) |
| Housing material | aluminum alloy |
| Vibration resistant | 10 ~ 55Hz,double amplitude 1.5mm,2 hours in each of the X,Y,Z directions |
| Impact Resistance | 300m/s2 (about 50G) X/Y/Z each direction 3 times |
| Weight | about 100g(inlucde 2meter cable weight) |
