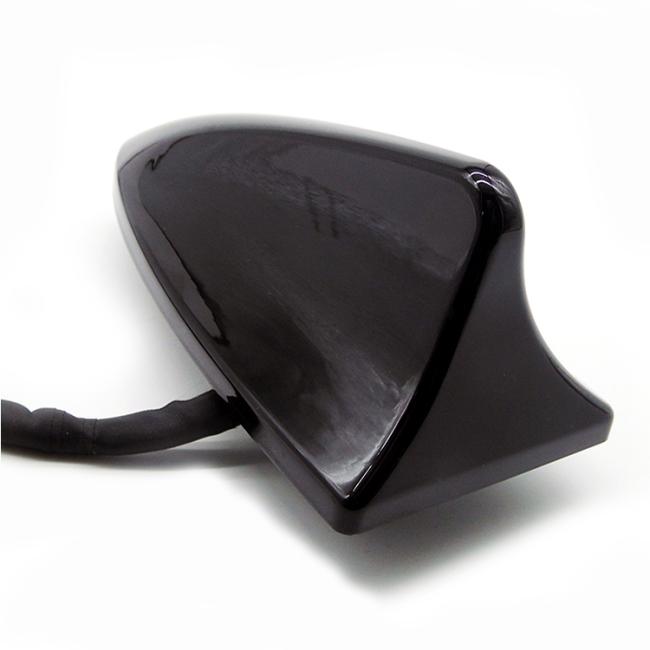

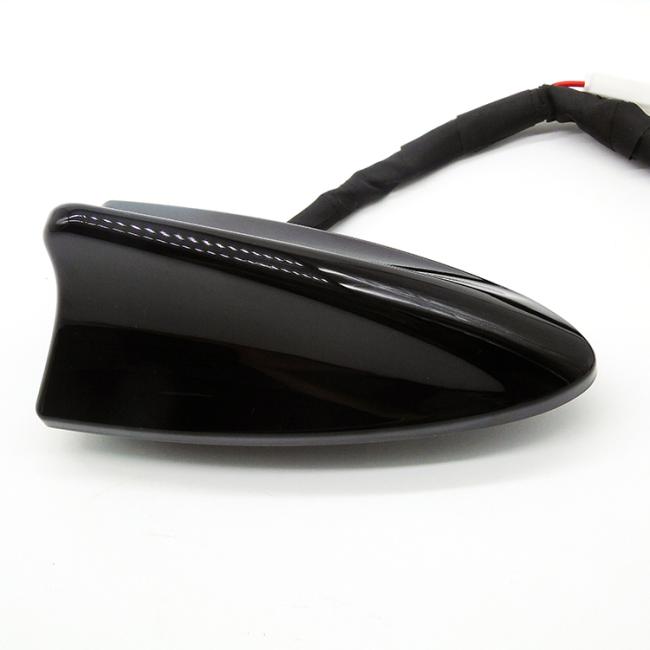

Customizable FM AM GNSS WIFI LTE 4G Antenna Multifunctional Shark Fin Antenna Sharkfin for External Car Antenna
Price:
$13-15
MOQ:
50
Delivery Time:
Negotiable
Brand:
RIDA Antennaer
Product Description
GPS GSM FM AM DAB Combination Car Shark Fin Antenna Customization scope:Appearance style, appearance color, cable length, connection type
Products Description
Product Parameters
|
|
|
|
|
|||
|
GPS Antenna
|
Dielectric Antenna
|
Center Frequency
|
1575.42±3MHz
|
|||
|
|
|
Band Width
|
CF±5MHz
|
|||
|
|
|
Polarization
|
RHCP
|
|||
|
|
|
Gain
|
2dBi
|
|||
|
|
|
V.S.W.R
|
<1.5
|
|||
|
|
|
Impendance
|
50Ω
|
|||
|
|
|
Axial Ratio
|
3dB(max)
|
|||
|
|
LNA
|
Gain
|
28±2dB
|
|||
|
|
|
Noise Figure
|
<1.5dB
|
|||
|
|
|
V.S.W.R
|
<2.0
|
|||
|
|
|
Supply Voltage
|
2.2~5V DC
|
|||
|
|
|
Current Consumption
|
5~15mA
|
|||
|
LTE Antenna
|
|
Frequency Range
|
698~960/MHz/1710~2690MHz
|
|||
|
|
|
V.S.W.R
|
<3.0
|
|||
|
|
|
Polarization
|
Linear
|
|||
|
|
|
Gain
|
3.5dBi
|
|||
|
|
|
Impendance
|
50Ω
|
|||
|
WIFI Antenna
|
|
Frequency Range
|
2400~2483.5MHz
|
|||
|
|
|
Band Width
|
83.5MHz
|
|||
|
|
|
Polarization
|
Linear
|
|||
|
|
|
Gain
|
3.0dBi
|
|||
|
|
|
V.S.W.R
|
<2.0
|
|||
|
|
|
Impendance
|
50Ω
|
|||
|
Mechanical
|
|
Cable
|
RG174
|
|||
|
|
|
Connector
|
SMA/MCX/FAKRA or others
|
|||
|
|
|
Material
|
ABS
|
|||
|
|
|

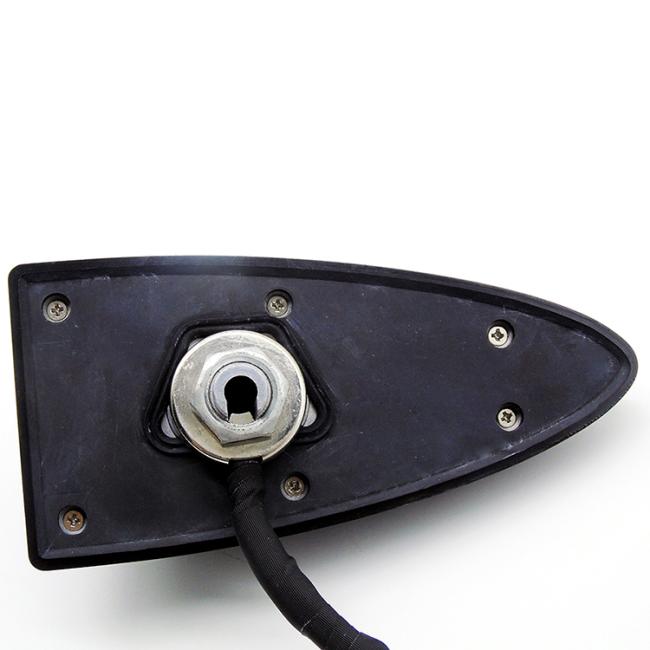

Mounting Method
|
Screw
|
|||
|
Environmental
|
|
Operating Temperature
|
-40℃~+85℃
|
|||
|
|
|
Relative Humidity
|
Up to 95%
|
|||
|
|
|
Ingress Protection
|
IP65~IP66
|
|||
|
|
|
Vibration
|
10 to 55Hz with 1.5mm amplitude 2hours
|
|||
|
|
|
Environmentally Friendly
|
ROHS Compliant
|
|||
