Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
MOQ:
2
Delivery Time:
10-15days
Brand:
RIDA Antennaer
Product Description
Products Description
helical antenna Tri-band high gain RTK Module Antenna UAV anti-jamming IP67 waterproof GNSS L1 L2 L5 GPS receiver antenna

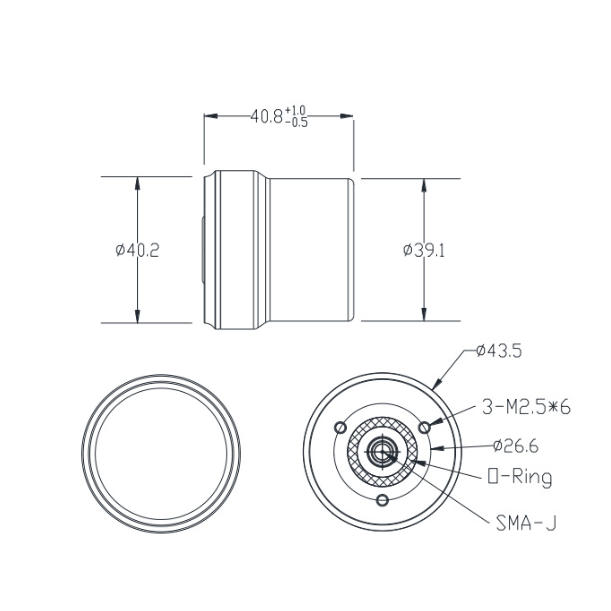

Structural Dimensions & Performance Diagrams
Product Parameters & Customizable Range
|
ANTENNA
|
|
|
|
Antenna Architecture
|
Quadrifilar Helix
|
|
|
Supported positioning signal bands |
GPS: L1/L2/L5
GLONASS: L1/L2/L3
BDS: B1/B2/B3
Galileo: E1/E5/E6 L-band
|
|
|
Peak Gain*
|
≥2.0 dBi
|
|
|
Polarization
|
Right circular polarization(RHCP)
|
|
|
Axial Ratio@zenith
|
≤1.5dB
|
|
|
Azimuth Coverage
|
360°
|
|
|
Impedance
|
50 ohm
|
|
|
LNA
|
|
|
|
Frequency Range
|
1164-1278 MHZ
1525-1615 MHZ
|
|
|
LNA Gain*
|
35±3.0dB (Typ. @25°C )
|
|
|
Noise Figure*
|
≤1.5 dB@25°C , Typ.
|
|
|
Output VSWR
|
≤1.8:1 typ. 2.0:1max
|
|
|
Operation Voltage
|
3.0~16V DC
|
|
|
Operation Current
|
≤45mA
|
|
|
MECHANICALS & ENVIRONMENTAL
|
|
|
|
Dimension
|
Φ39.1 * Φ40.2 * 40.8
|
|
|
Connector
|
SMA-Male
|
|
|
Radome
|
ABS+PC
|
|
|
Weight
|
≤18g
|
|
|
Attachment Method
|
Through connectors or other custom accessories (installation varies from product to product)
|
|
|
Operating Temp
|
－40℃～＋85℃
|
|
|
Storage Temp
|
－45℃～＋85℃
|
|
|
Humidity
|
95% No-condensing
|
|
|
Waterproof
|
IP67
|
|
