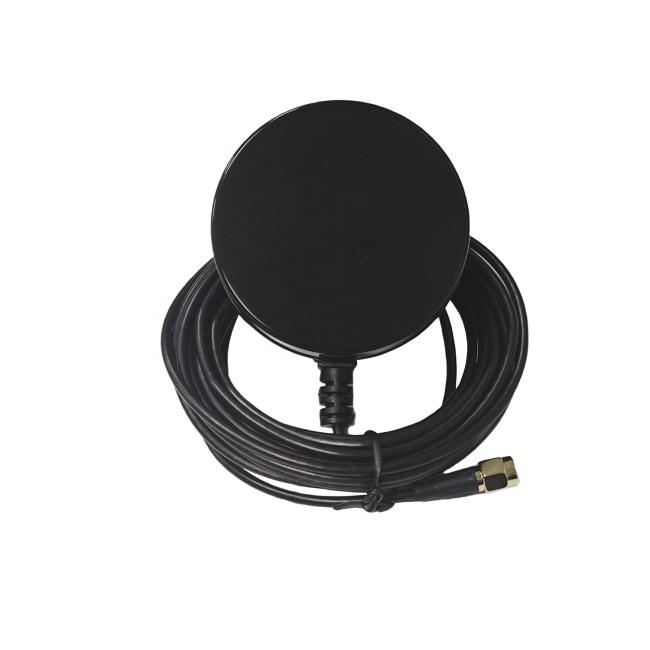

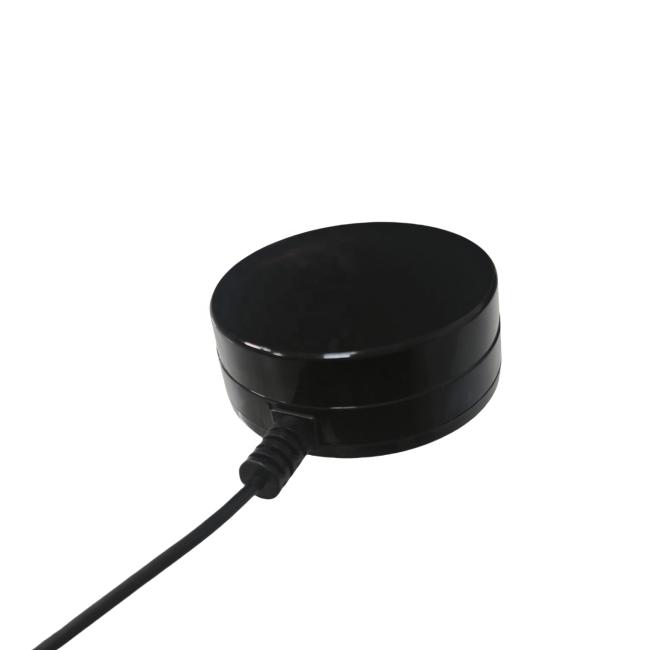

GNSS Antenna
Applications
-Smart Cities
- Industrial Mapping
- Disaster Monitoring
- Automated driving
- Electrical inspection
- Marine Positioning - Agricultural Machinery - Logistics Tracking
KEY FEATURES
- Adopt single feed point technology design, ensure the
right circular polarization and phase center performance,
reduce the impact of measurement error; - Antenna unit with high passive gain and wide directional
map beam, ensuring the reception of low elevation angle
signals; - Built-in filtering, low noise figure and strong
anti-interference capability; - IP67 protection for the antenna to work in the field for a
long time provides a guarantee.

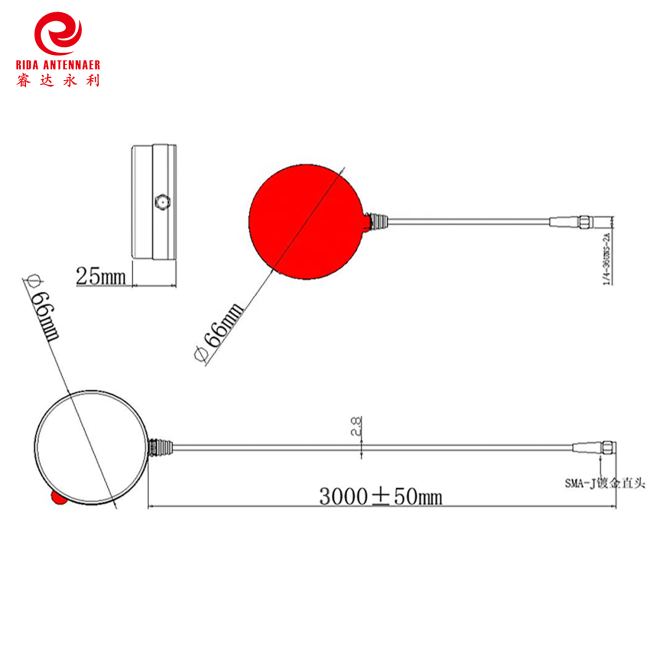

Structural Dimensions & Performance Diagrams
( Accept OEM/ODM)
Product Parameters & Customizable Range
|
ANTENNA
|
|
|
|
Patch Architecture
|
Dual Feed, Dual Stacked Patch
|
|
|
|
|
|
|
Supported positioning signal bands
|
GPS: L1/L5; BDS: B1/B2a; Galileo: E5a/E5b
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Peak Gain*
|
≥4.0dBi@Fc, with100mmgroundplane
|
|
|
Polarization
|
Right circular polarization (RHCP)
|
|
|
VSWR
|
< 2
|
|
|
Azimuth Coverage
|
360°
|
|
|
Impedance
|
50 Ω
|
|
|
LNA
|
|
|
|
Frequency Range
|
1164MHz~1217MHz,1559MHz~1605MHz;
|
|
|
|
1559MHz~1605MHz
|
|
|
LNA Gain*
|
40±2.0dB (Typ. @25°C) / 28±2.0dB(Typ.@25°C)
|
|
|
Noise Figure*
|
≤2.0dB@25°C,Typ
|
|
|
Output VSWR
|
≤ 1.8:1 typ. 2.0:1max
|
|
|
Operation Voltage
|
3.3VDC
|
|
|
Operation Current
|
≤25mA
|
|
|
MECHANICALS & ENVIRONMENTAL
|
|
|
|
|
|
|
|
Dimension
|
Ø66mm*25mm
|
|
|
Connector
|
SMA male (Customizable)
|
|
|
Radome
|
ABS+PC
|
|
|
Weight
|
≈115g
|
|
|
Attachment Method
|
3M Adhesive or magnetic
|
|
|
Operating Temp
|
－40℃~＋85℃
|
|
|
Storage Temp
|
－45℃~＋85℃
|
|
|
Humidity
|
95% No-condensing
|
|
|
Waterproof
|
IP67
|
|
