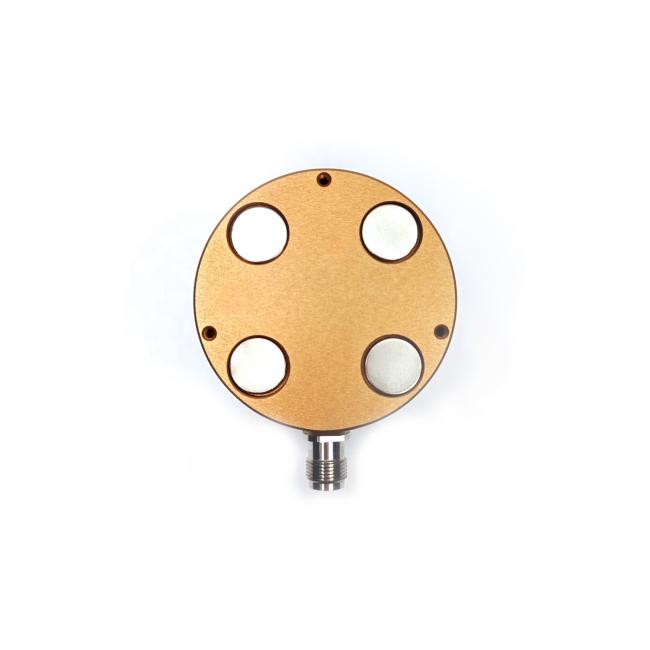

GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
Price:
$22-25
MOQ:
1
Delivery Time:
Negotiable
Brand:
RIDA Antennaer
Product Description
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-band GNSS Antenna Customization scope:Antenna Performance, Appearance, Cable length, Connector type
Products Description
The three-system seven-frequency circular aerial antenna is a high-gain, low wind resistance type antenna.
It has the features of compact size, exquisite appearance, high sensitivity, low power consumption and high reliability, which can
effectively improve the positioning accuracy of the carrier in high speed movement.
It has the features of compact size, exquisite appearance, high sensitivity, low power consumption and high reliability, which can
effectively improve the positioning accuracy of the carrier in high speed movement.
Product Parameters & Customizable Range
|
Antenna
|
Frequency range
|
GPS:L1/L2/L5;
BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b
L-Band
|
|
impedance
|
50Ω
|
|
|
Polarization
|
RHCP
|
|
|
Antenna axis ratio
|
≤1.5dB
|
|
|
Horizontal plane coverage angle
|
360°
|
|
|
Output standing wave
|
≤2.0
|
|
|
Maximum gain
|
4dBi
|
|
|
Dimension
|
⊘67.5mm*31mm
|
|
|
LNA
|
Gain
|
38±2dB
|
|
Noise factor
|
≤2dB
|
|
|
Output standing wave
|
≤2.0
|
|
|
Operating Voltage
|
3.3~12VDC
|
|
|
Operating current
|
≤45mA
|
|
|
Gain Flatness
|
±2dB
|
|
|
Working Environment
|
Operating temperature
|
-40℃~+85℃
|
|
Storage temperature
|
-55℃~+85℃
|
|
|
Humidity
|
95%Non-condensing
|
