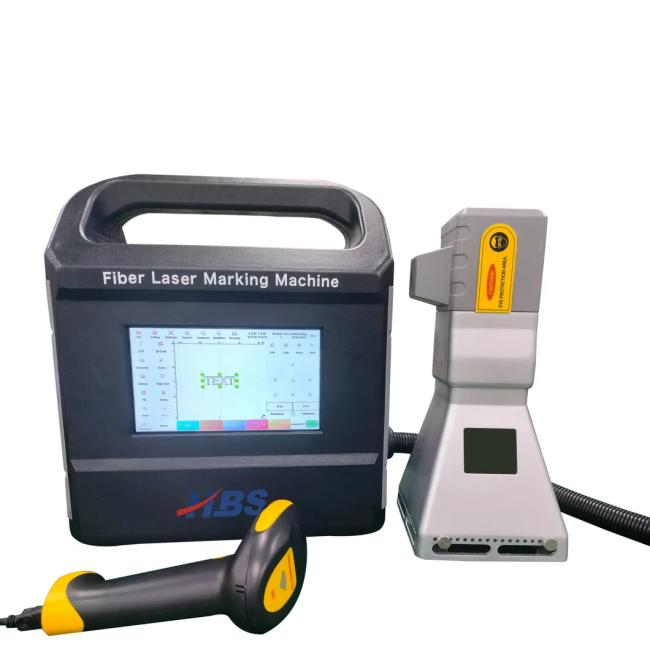

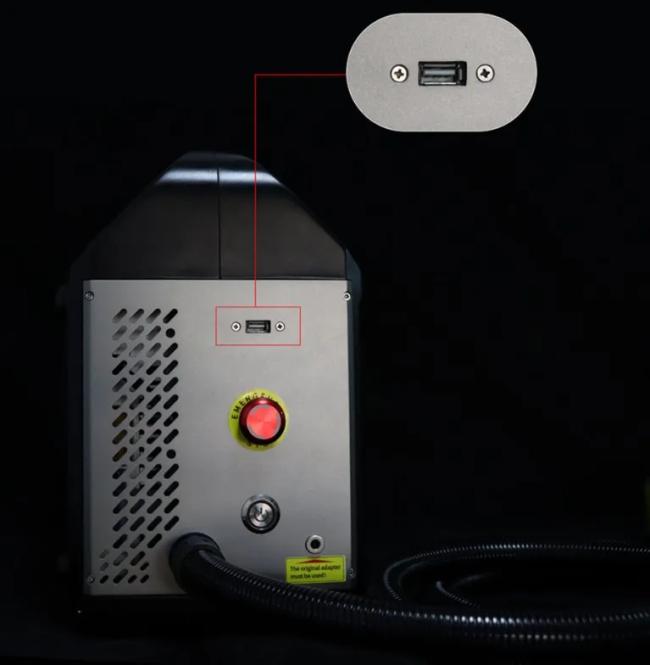

Portable Handheld Laser Marking Machine with Safe Cover
The whole machine is very light --6.5KG.The laser head is only 1.2kg
Charging/Plugging Optional

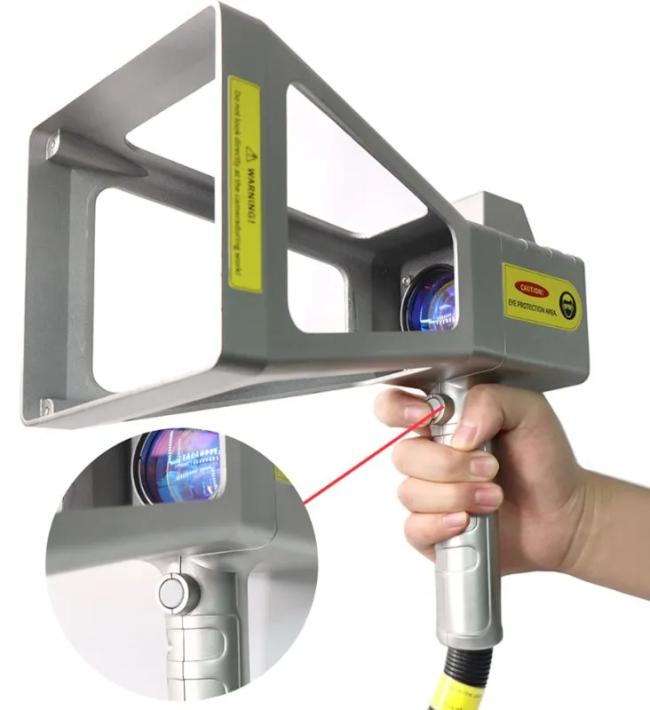

One-click Marking
Technical Specification
|
Material of whole machine |
Engineering Plastics |
|
|
Laser Type |
Fiber laser |
|
|
Average power |
20 watts |
|
|
Marking Wavelength |
1064nm |
|
|
Maximum pulse energy |
0.7mj |
|
|
Laser Repetition Frequency |
1-600 kHz |
|
|
Marking Method |
High Precision Double-circle scanning mode |
|
|
Laser Power Lifetime |
100,000 hours (Theoretical data) |
|
|
Cooling System |
Air Cooling |
|
|

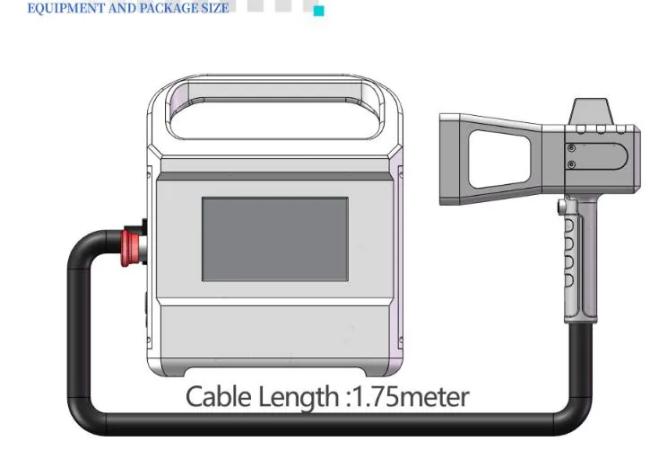

Fiber cable length |
1.75m |
|
|
Marking Speed |
≤7000mm/s |
|
|

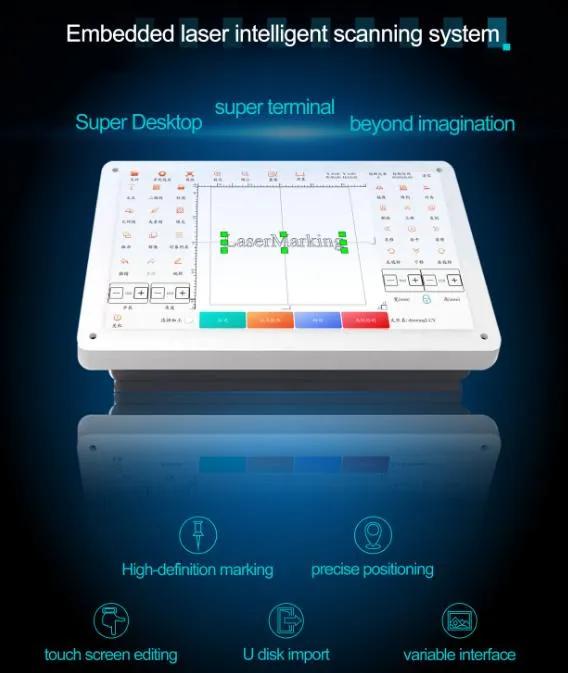

Operation Interface |
Built-in 7-inch touchscreen, Linux operating system |
|
|
Marking Area |
100mm×100mm |
|
|
Language |
Simplified Chinese, English, Korean, German, etc |
|
|
File Format |
Png/jpg/bmp/dxf/plt/svg |
|
|
Barcode/QR code |
CODE25 CODE39,CODE49,CODE93 CODE126 CODE128 EAN13,EAN128 PDF417 CODBAR,UPCA,UPCA_CHK UPCE_CHK,DataMatrix,QRCode |
|
|
Power Supply |
220V/110V |
|
|
Maximum power consumption |
250W |
|
|
Machine Net Weight |
Lithium battery mode machine weight:7.8kg |
Power model machine weight:6.4kg |
|
Full power Continuous working time |
About 4 hours(Lithium battery mode) |
|
|
Charging Time |
1 and half hour (Lithium battery mode) |
|
|
Adaptive Temperature |
0-40ºC |
|

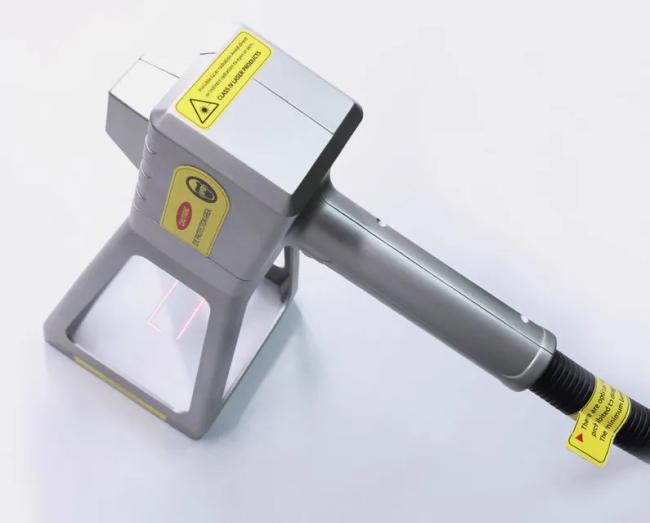

Red light positioning, no need to focus, easier operation, marking more clear

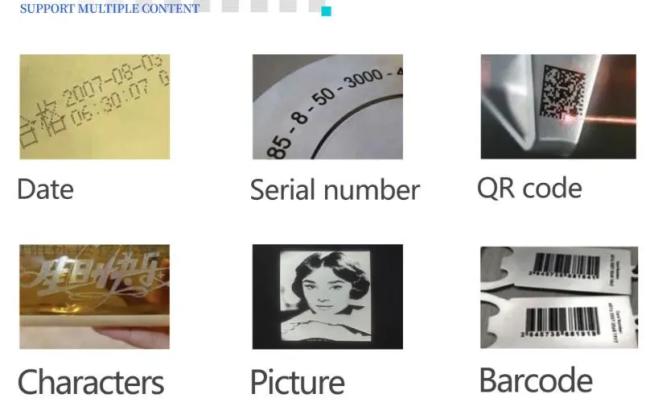

Supports a variety of content marking
Certificate
