Slim Speed Gate Turnstile , Optical Turnstile Manufacturers For Office Access
JSD-S01 Slim Speed Gate RS485 TCP/IP Optical Turnstile for Office Access
The JSD-S01 304 Stainless Steel Slim Speed Gate is a premium, DC brushless speed turnstile engineered for high-efficiency, reliable access control in modern commercial and public environments. Built with 304 brushed stainless steel (1.5mm top cover, 1.2mm cabinet thickness), it combines sleek, angular design with robust performance, supporting 0.5-second fast passing and over 8 million continuous opening/closing cycles for long-term durability. Equipped with standard 4 pairs of infrared sensors (expandable) and dry contact input compatibility, it ensures anti-pinch, tailgating prevention, and smooth pedestrian flow, while supporting RS485 (≤1200m) and optional TCP/IP communication for seamless system integration.
Key Product Features
- Durable & Premium Build Constructed from 304 brushed stainless steel with arc-shaped chassis design, offering corrosion resistance, a slim profile, and an exquisite appearance suitable for upscale settings.
- High-Speed & Stable Operation Powered by a DC brushless motor, the gate achieves a 0.5-second opening time, supporting high-volume pedestrian traffic without compromising safety.
- Flexible Integration & Control Supports one-way/two-way access, and connects to external devices like IC/ID card readers, fingerprint modules, and face recognition units for multi-scenario authentication.
- Reliable Safety & Adaptability With a wide working temperature range (-10°C to 60°C, 5%-95% humidity, no condensation), the gate performs stably in both indoor and outdoor environments (awning recommended for outdoor use).
Technical Specifications
| Parameter | Details |
|---|---|
| Material | 304 Brushed Stainless Steel (1.5mm top cover, 1.2mm cabinet) |
| Power Input | AC220V±10%, 50Hz±4% (converted to DC24V/DC12V working voltage) |
| Motor Type | DC Brushless Motor |
| Opening Time | 0.5 seconds |
| Channel Width | 550–750mm |
| Communication Interface | RS485 (≤1200m), optional TCP/IP |
| Infrared Sensors | Standard 4 pairs (expandable) |
| Service Life | Over 8 million continuous opening/closing cycles |
| Working Temperature | -10°C ~ 60°C |
| External Device Compatibility | IC/ID card reader, scanning module, face/fingerprint modules (customizable) |
Application Scenarios & Solutions

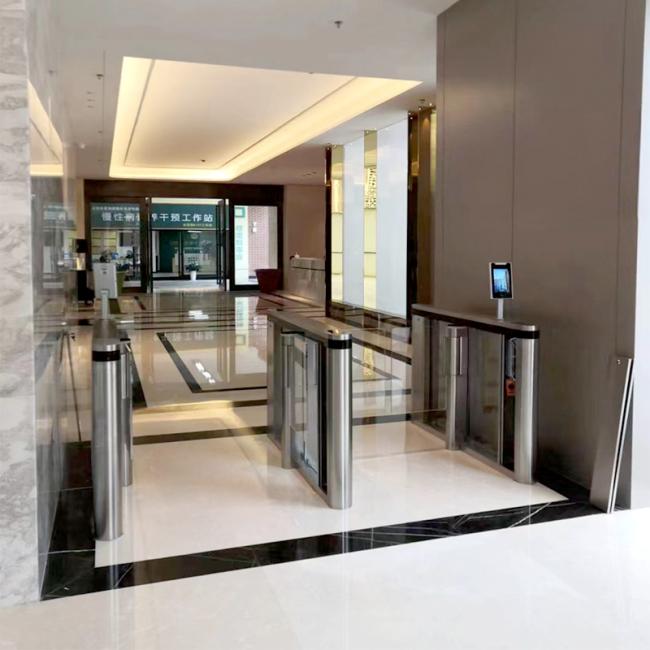

- Office Buildings Eliminates unauthorized access and tailgating, while streamlining employee entry/exit during peak hours to reduce congestion.
- Commercial Complexes & Malls Manages visitor flow efficiently, supporting multi-point access and integration with existing building security systems.
- Schools & Campuses Prevents trespassing and ensures student safety, with fast response times to accommodate high foot traffic during class breaks.
- Government & Public Facilities Delivers reliable, high-security access control with audit trails, suitable for regulated environments requiring controlled entry.
FAQ
-
Can the JSD-S01 support biometric authentication like face recognition?
Yes, the gate is compatible with external face, fingerprint, and QR code modules (customizable), allowing flexible integration with various authentication systems.
-
Is the speed gate suitable for outdoor installation?
It can be used outdoors, but installation under an awning is recommended to protect the unit from direct rain and harsh sunlight for prolonged service life.
-
How does the gate prevent tailgating and anti-pinch incidents?
Equipped with infrared sensors, the gate detects unauthorized follow-up attempts and automatically triggers safety measures, while the DC brushless motor ensures gentle, controlled movement to prevent injuries.
![]()
![]()
