SUS304 Stainless Steel Full Height Turnstile Anti Tailgating For Logistics Parks

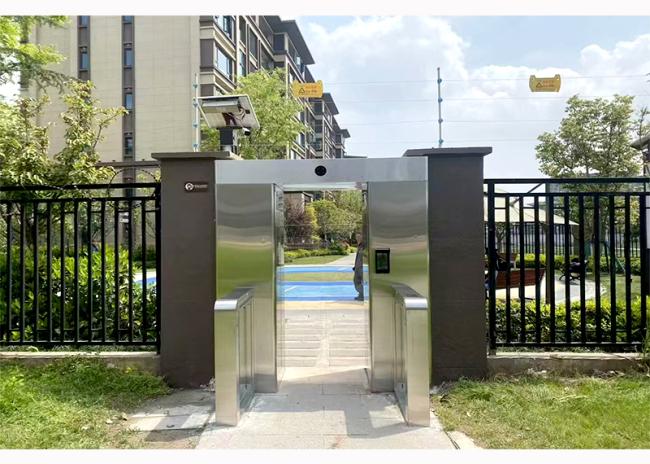

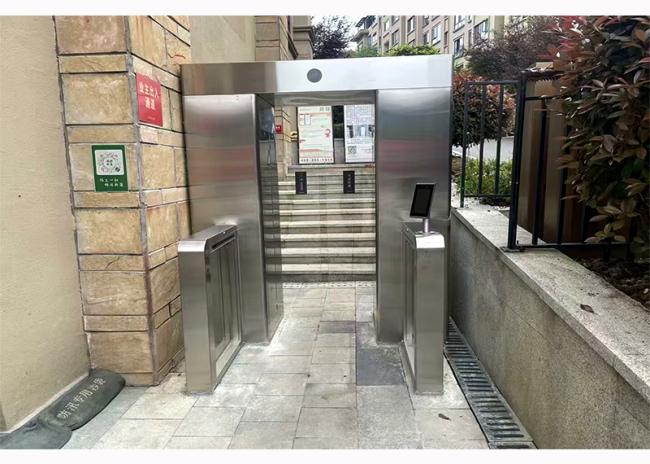

The JSD-QG05 Full Height Turnstile is a high-security pedestrian access control solution designed for logistics parks, warehouses, industrial facilities, and restricted areas requiring reliable entry management. Constructed with premium 304 brushed stainless steel and powered by a DC brushless motor, the system offers stable performance, low maintenance, and long-term durability. Equipped with anti-tailgating protection and 6 pairs of infrared sensors, the QG05 effectively prevents unauthorized access while maintaining smooth pedestrian flow. The turnstile supports RFID cards, face recognition systems, QR code scanners, fingerprint devices, and other intelligent access control integrations. Suitable for both indoor and outdoor installations, the JSD-QG05 delivers secure, efficient, and intelligent pedestrian management for demanding environments.
Integrated infrared detection technology helps prevent unauthorized entry, tailgating, and illegal intrusion.
The full height design provides enhanced perimeter protection for restricted and high-security environments.
Equipped with a high-performance DC brushless motor for smooth operation, low noise, and extended service life.
Manufactured with premium 304 brushed stainless steel for superior corrosion resistance and structural durability.
Standard configuration includes 6 pairs of infrared sensors with optional expansion for enhanced pedestrian monitoring.
Compatible with:
-
IC card readers
-
ID card readers
-
Face recognition systems
-
QR code scanners
-
Fingerprint devices
-
Third-party access control platforms
Supports both single-direction and bi-directional pedestrian control settings.
Designed for stable and reliable operation in various indoor and outdoor environments.
| Item | Specification |
|---|---|
| Product Model | JSD-QG05 |
| Product Type | Full Height Turnstile |
| Material | SUS304 Brushed Stainless Steel |
| Top Cover Thickness | 1.5mm |
| Housing Thickness | 1.2mm |
| Product Dimensions | 2660 * 800 * 2000mm |
| Passage Direction | Single / Bi-directional |
| Drive Mode | DC Brushless Motor |
| Opening Time | 0.5 Seconds |
| Barrier Material | Acrylic or Stainless Steel |
| Infrared Sensors | Standard 6 Pairs (Expandable) |
| Communication Interface | RS485 / Optional TCP-IP |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Working Voltage | DC24V / DC12V |
| Power Supply | AC220V±10%, 50Hz±4% |
| Passage Width | 700mm |
| Arm Length | 600mm |
| Operating Temperature | -10℃ ~ 60℃ |
| Humidity | 5%~95%, Non-condensing |
| Working Environment | Indoor / Outdoor |
| Service Life | Over 3 Million Cycles |
Core Problem Solved:
Controls employee and visitor access efficiently while preventing unauthorized entry into operational zones.
Core Problem Solved:
Improves security management and supports organized pedestrian movement in high-traffic environments.
Core Problem Solved:
Restricts access to authorized personnel and strengthens overall site security management.
Core Problem Solved:
Enhances crowd management and improves secure pedestrian passage control.
Core Problem Solved:
Provides strict access control and anti-tailgating protection for sensitive locations.
Core Problem Solved:
Improves visitor management efficiency and supports intelligent building security systems.
The turnstile includes anti-tailgating protection, infrared pedestrian detection, and a full height anti-intrusion structure.
The system supports IC card readers, ID card readers, face recognition systems, QR code scanners, fingerprint devices, and customized third-party integrations.
The JSD-QG05 comes standard with 6 pairs of infrared sensors, and additional sensors can be added if required.
Yes. The system is designed for both indoor and outdoor environments.
The turnstile uses a DC brushless motor for smooth operation, low maintenance, and reliable long-term performance.
Yes. The turnstile supports both single-direction and bi-directional pedestrian control modes.
The standard communication interface is RS485, with optional TCP/IP networking support available.
Yes. Customization options include dimensions, access control integrations, infrared sensor quantity, barrier materials, and communication methods according to project requirements.
